Component Inspection

P2008 Intake Manifold Runner Control Circuit/Open (Bank 1)

Inspection/Repair - Component Inspection

Component Inspection

1. IG KEY "ON" and select 'Actuation Test' menu in GDS.
2. Execute 'Variable Charge Motion Actuator'.
3. Confirm the change of VCMA feedback sensor signal and the sound of operation.

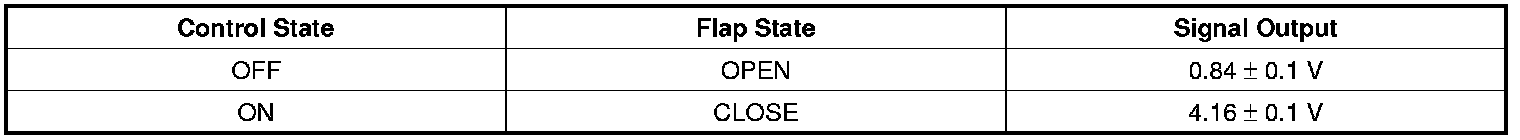

Specification

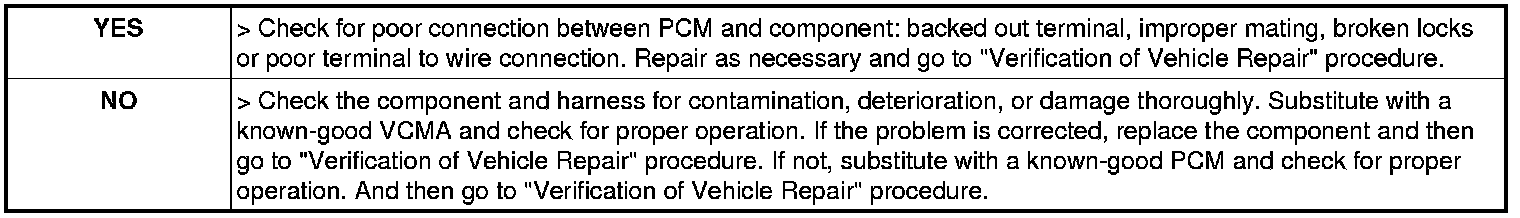

4. Is everything OK?
