General Information

P0880 TCM Power Signal Error Open/Short (GND)

General Information

Component Location





General Description

The PCM (TCM) monitors suppling voltage to "SOLENOID VALVE".
The gear position is fixed at 3rd gear When input value is higher or lower than specification.

DTC Description

The PCM (TCM) set this code If an input voltage is higher or lower than specification.

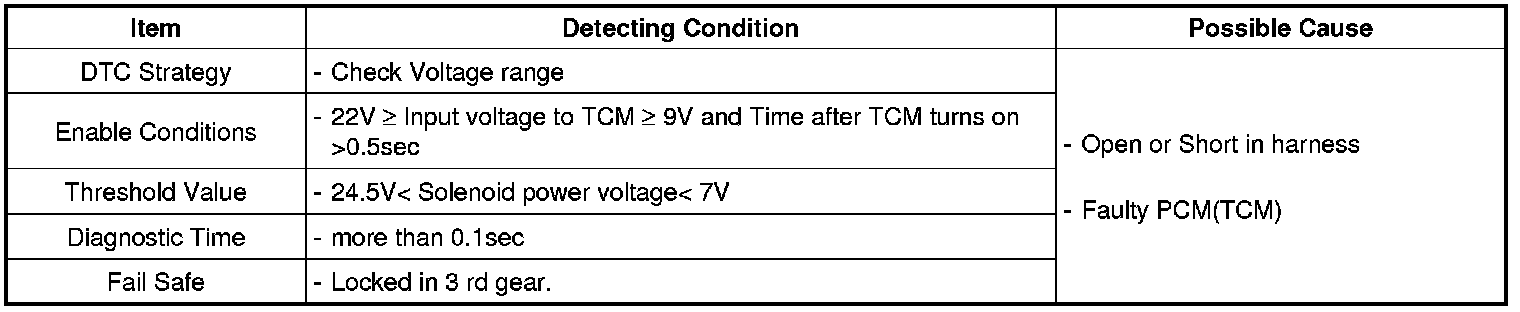

DTC Detecting Condition

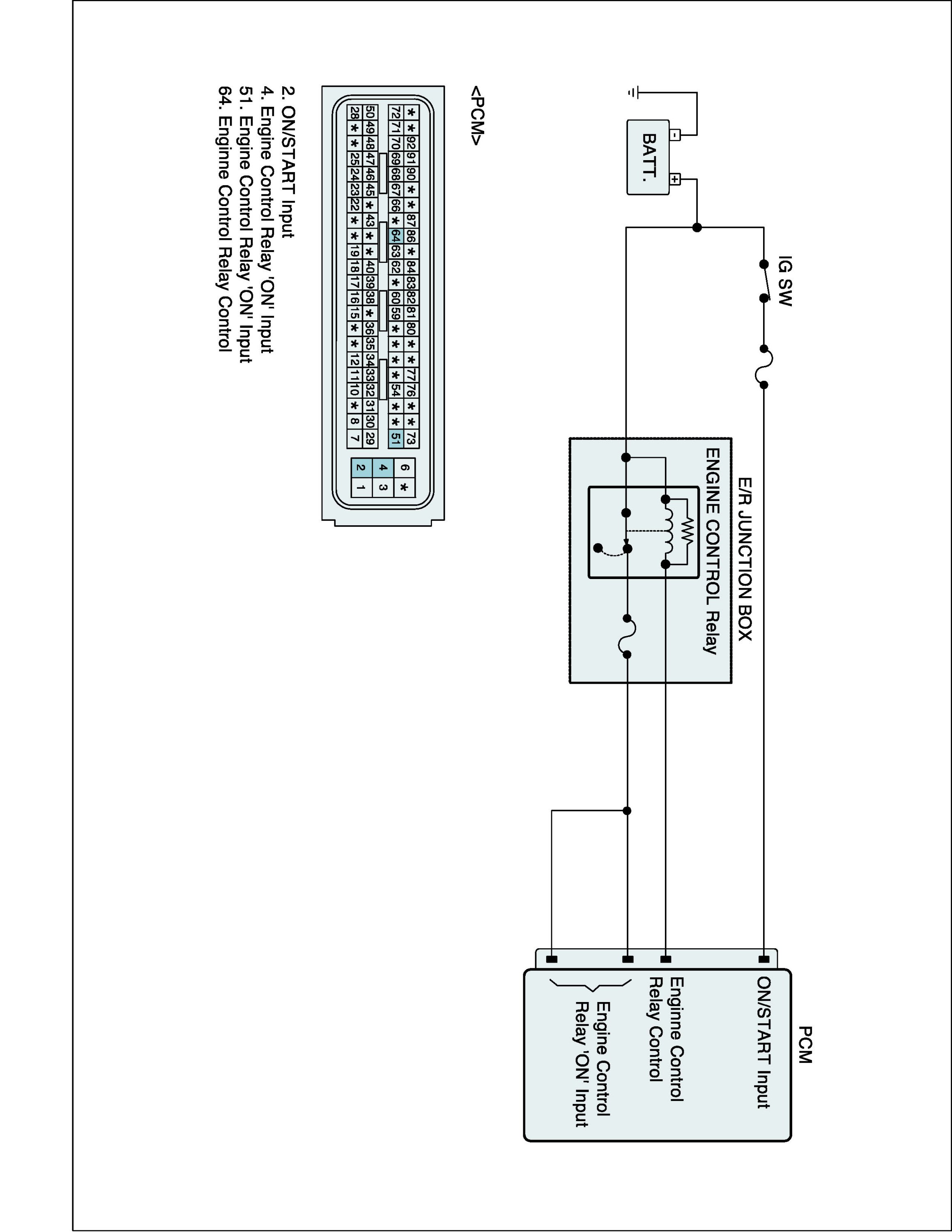

Diagnostic Circuit Diagram
