Monitor DTC Status

P0773 Shift Control Solenoid Valve \'E\' Electrical (Low Coast Brake Solenoid)

Scantool Diagnostics

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "RED SOL. VALVE" parameter on the GDS.
4. Shift gear at each position.

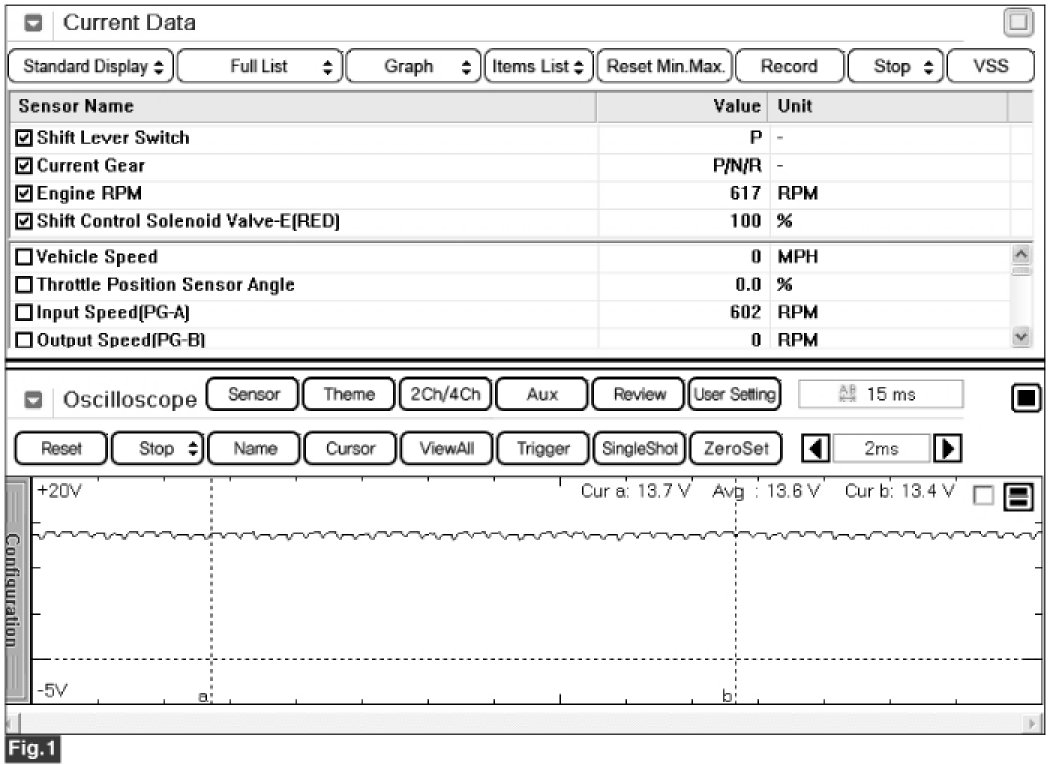

Fig 1) P,N
Fig 2) R

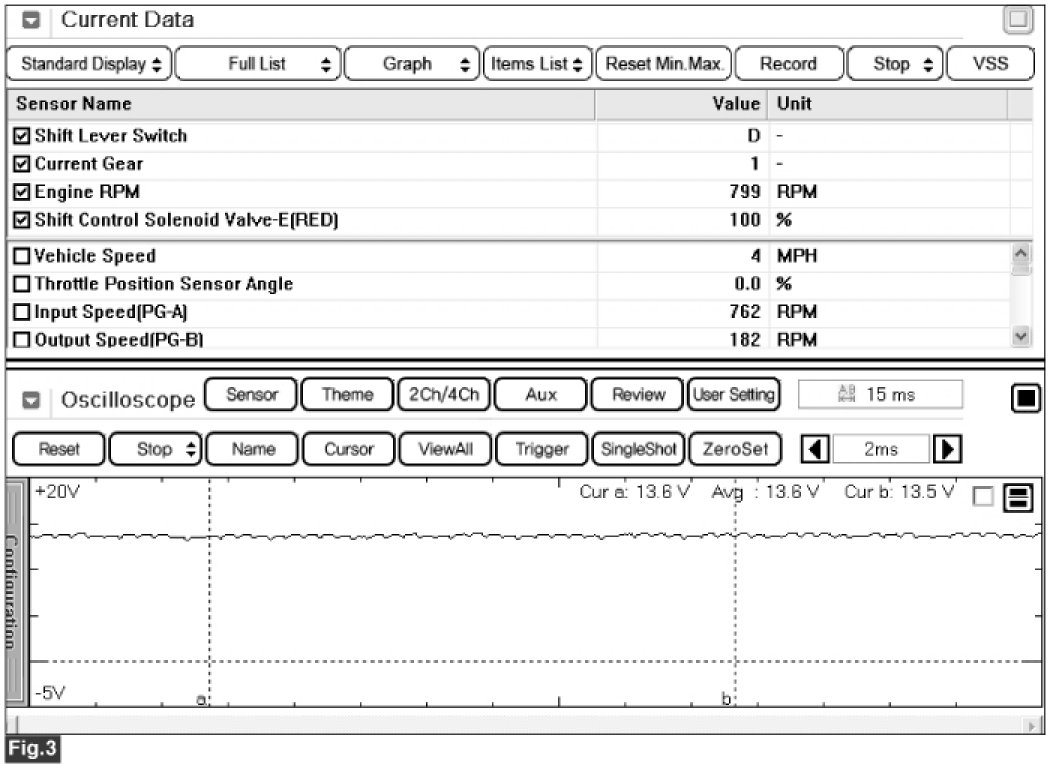

Fig 3) "1st" gear

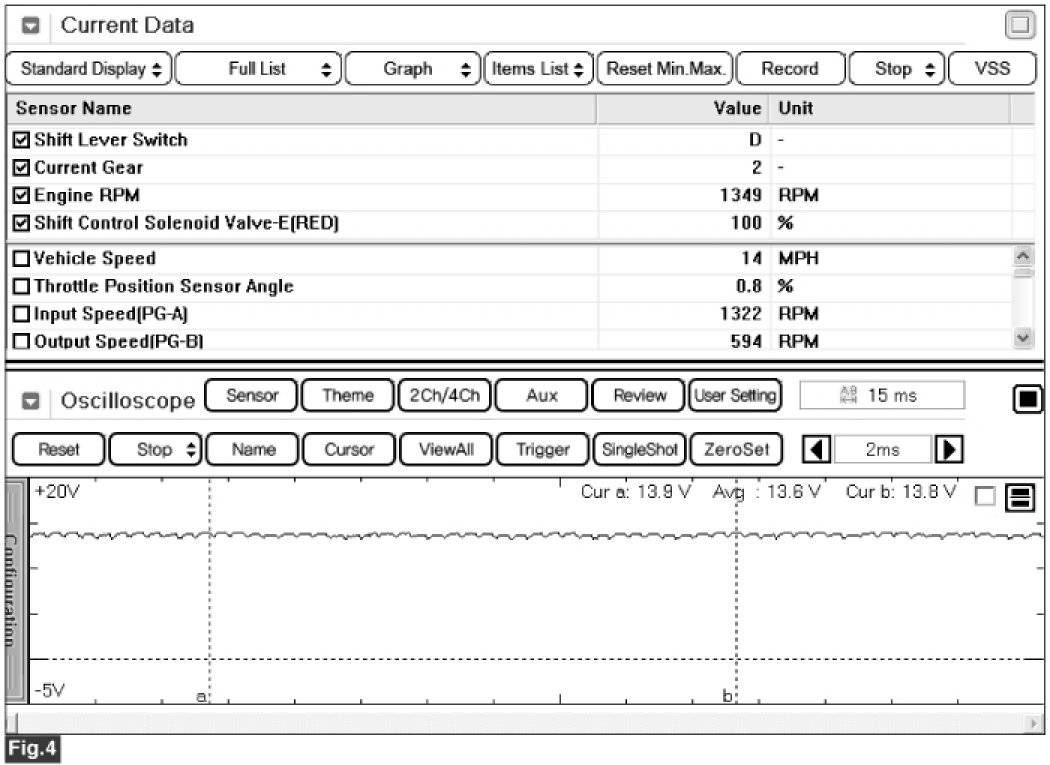

Fig 4) "2nd" gear
Fig 5) "3rd" gear
Fig 6) "4th" gear

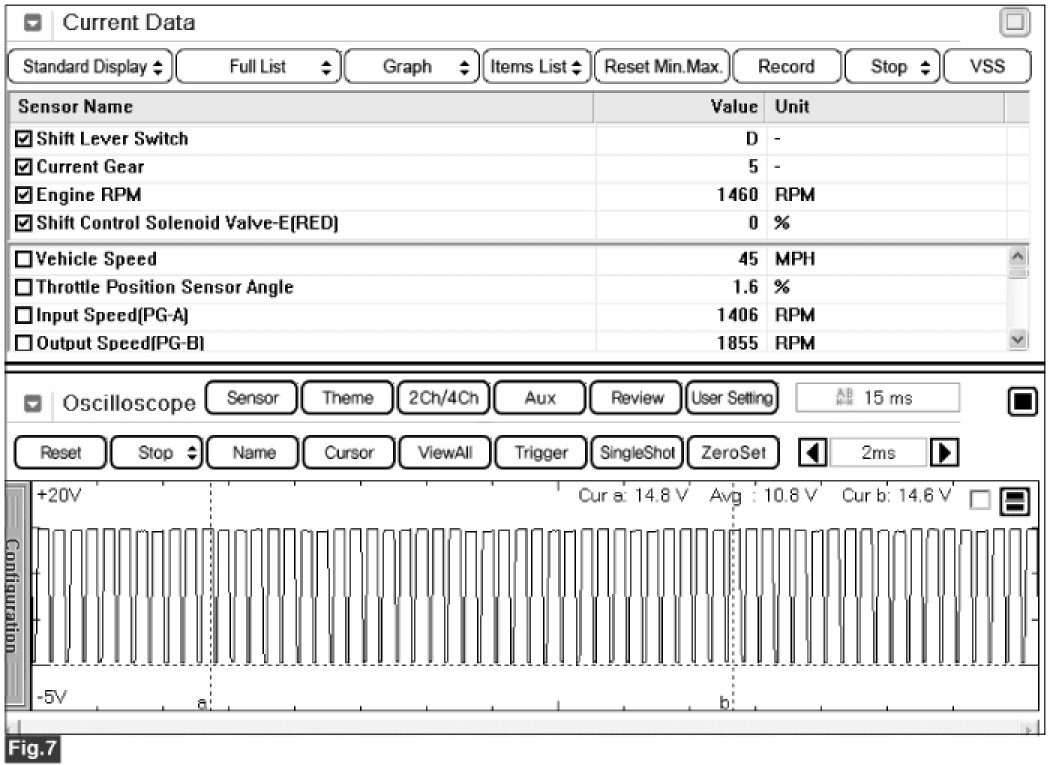

Fig 7) "5th" gear
5. Does "RED SOL DUTY " follow the referance data?
