P0768 Shift Control Solenoid Valve \'D\' Electrical (High/Low and Reverse Clutch Solenoid)

Scantool Diagnostics

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "OD SOL. VALVE" parameter on the GDS.
4. Shift gear at each position.

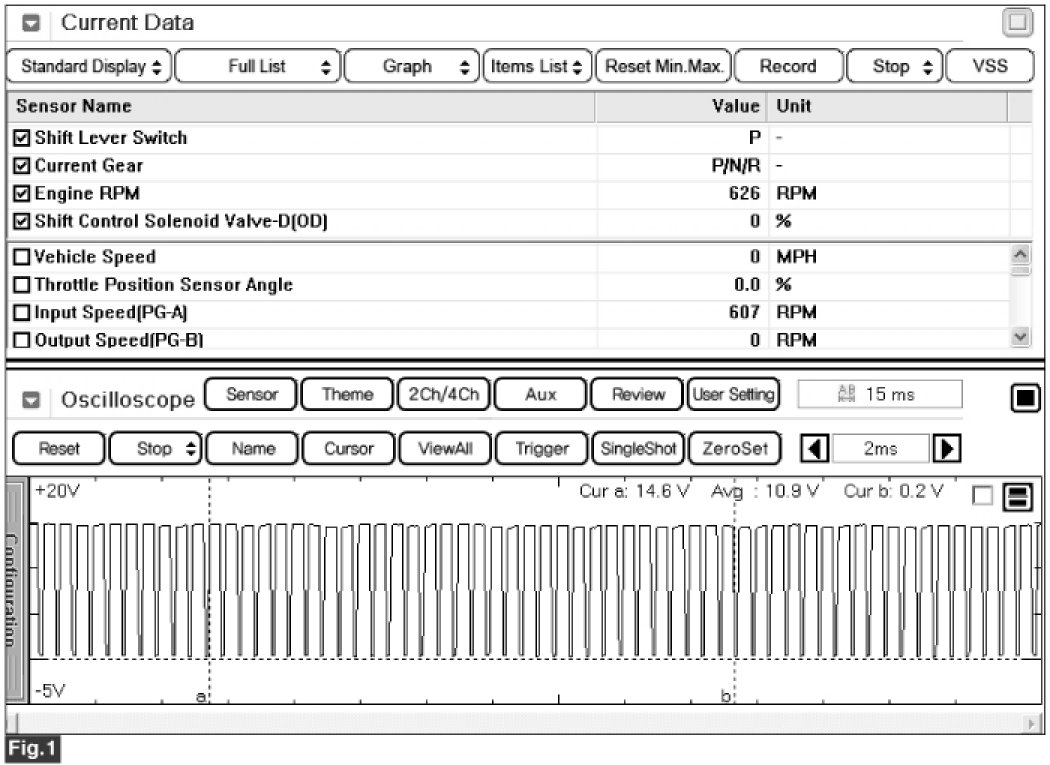

Fig 1) P,N

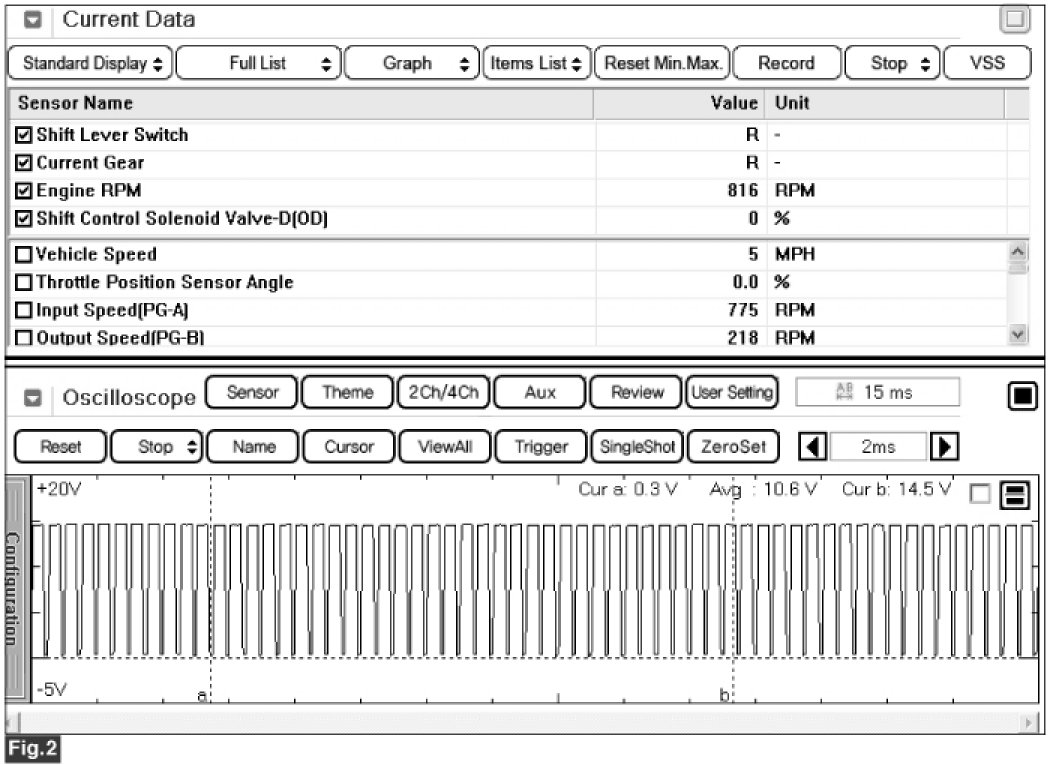

Fig 2) R

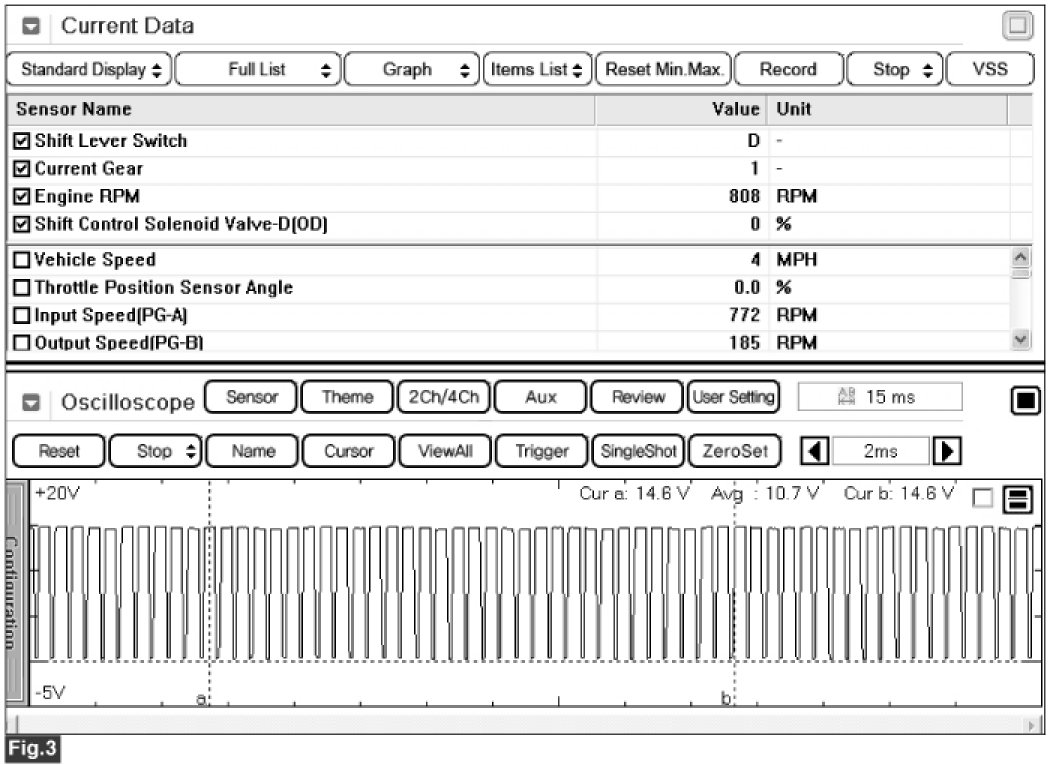

Fig 3) "1st" gear

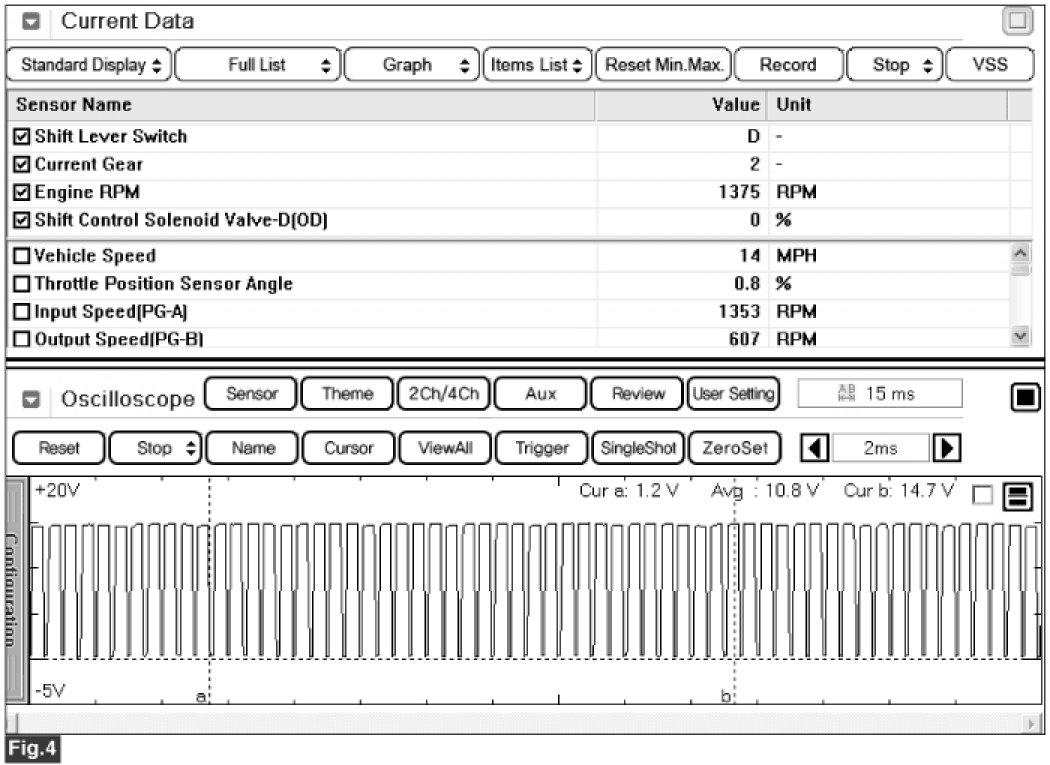

Fig 4) "2nd" gear
Fig 5) "3rd" gear

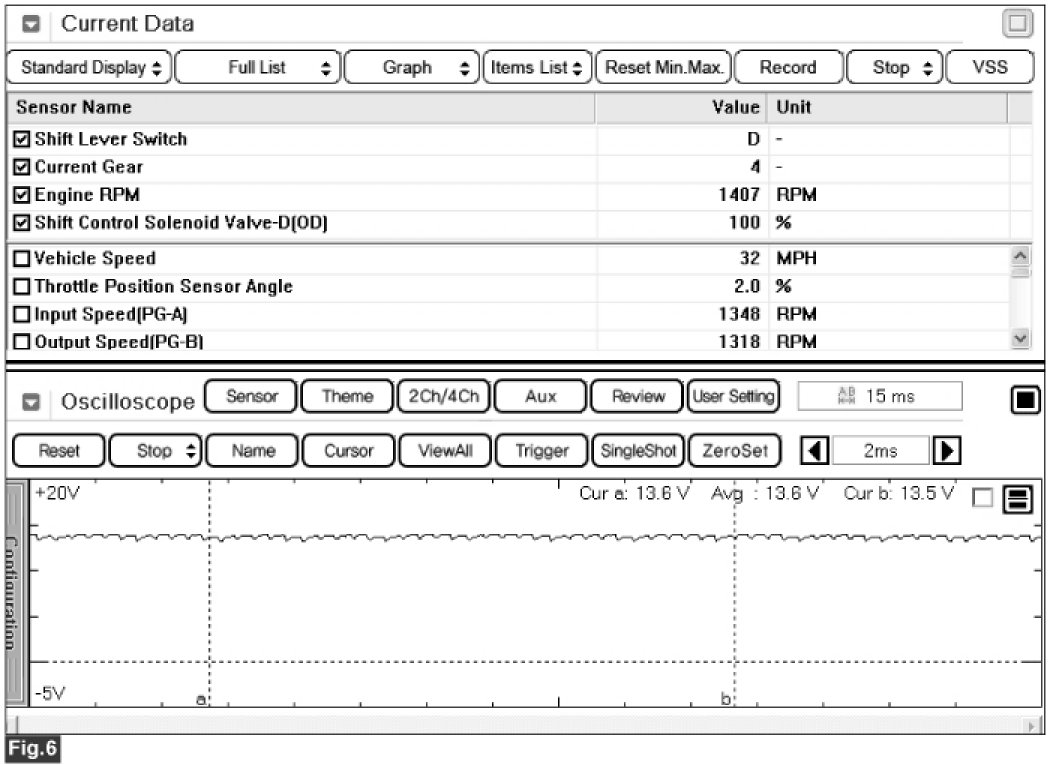

Fig 6) "4th" gear
Fig 7) "5th" gear
5. Does "OD SOL DUTY " follow the referance data?
