Monitor DTC Status

P0758 Shift Control Solenoid Valve \'B\' Electrical (Front Brake Solenoid)

Scantool Diagnostics

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "UD SOL. VALVE" parameter on the GDS.
4. Shift gear at each position.

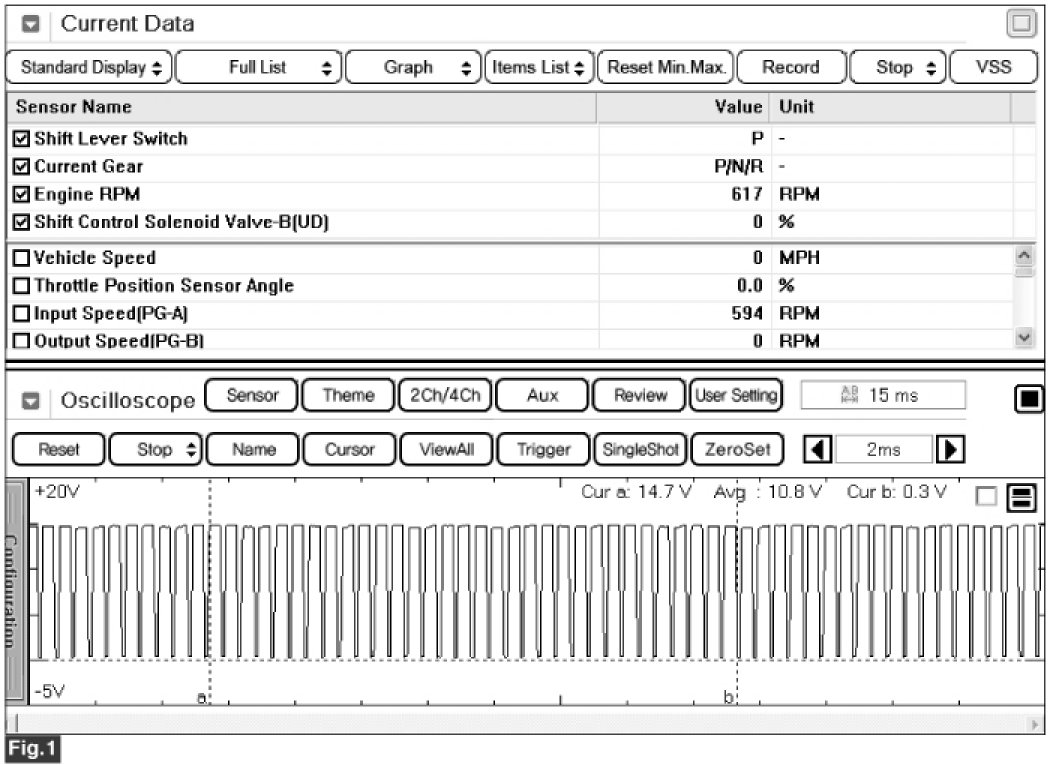

Fig 1) P,N
Fig 2) R

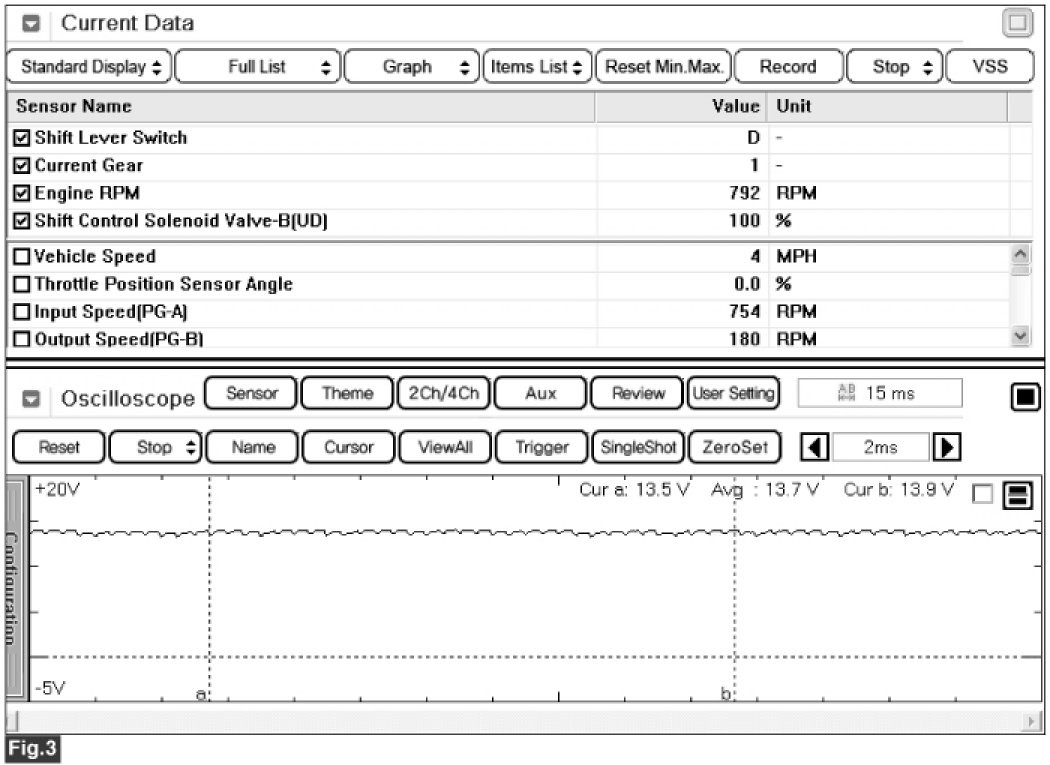

Fig 3) "1st" gear
Fig 4) "2nd" gear
Fig 5) "3rd" gear

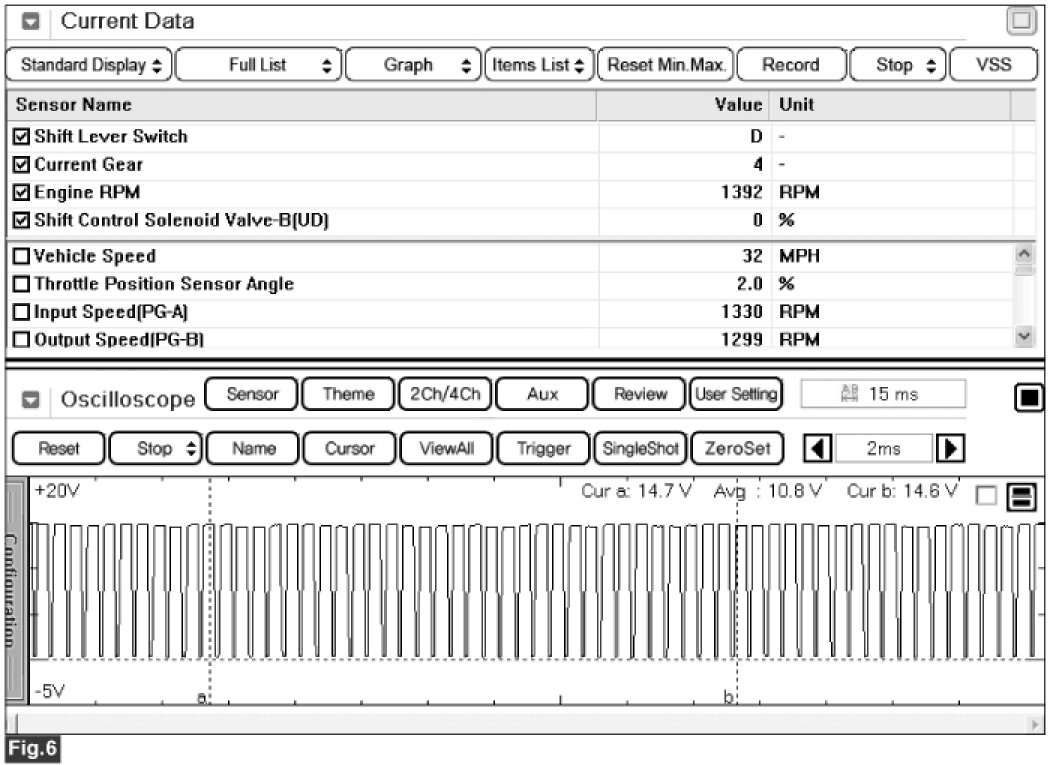

Fig 6) "4th" gear

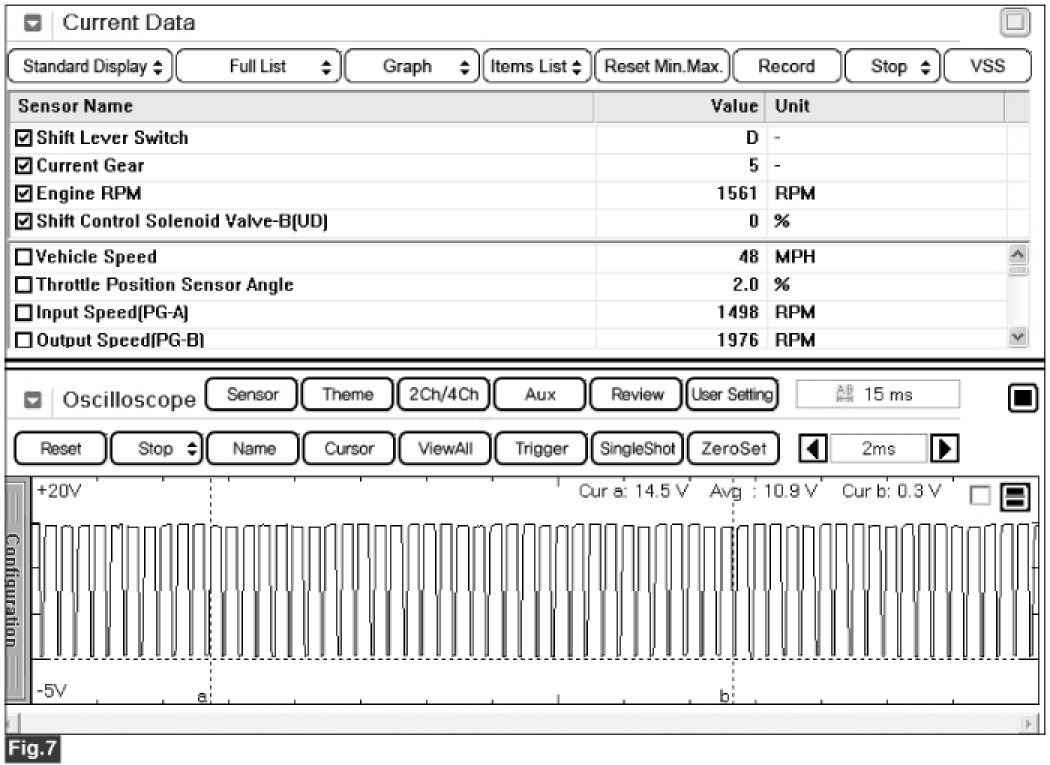

Fig 7) "5th" gear
5. Does "VF SOL DUTY " follow the referance data?
