Monitor DTC Status

P0753 Shift Control Solenoid Valve \'A\' Electrical (Input Clutch Solenoid)

Scantool Diagnostics

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "LR/DIR SOL. VALVE" parameter on the GDS.
4. Shift gear at each position.

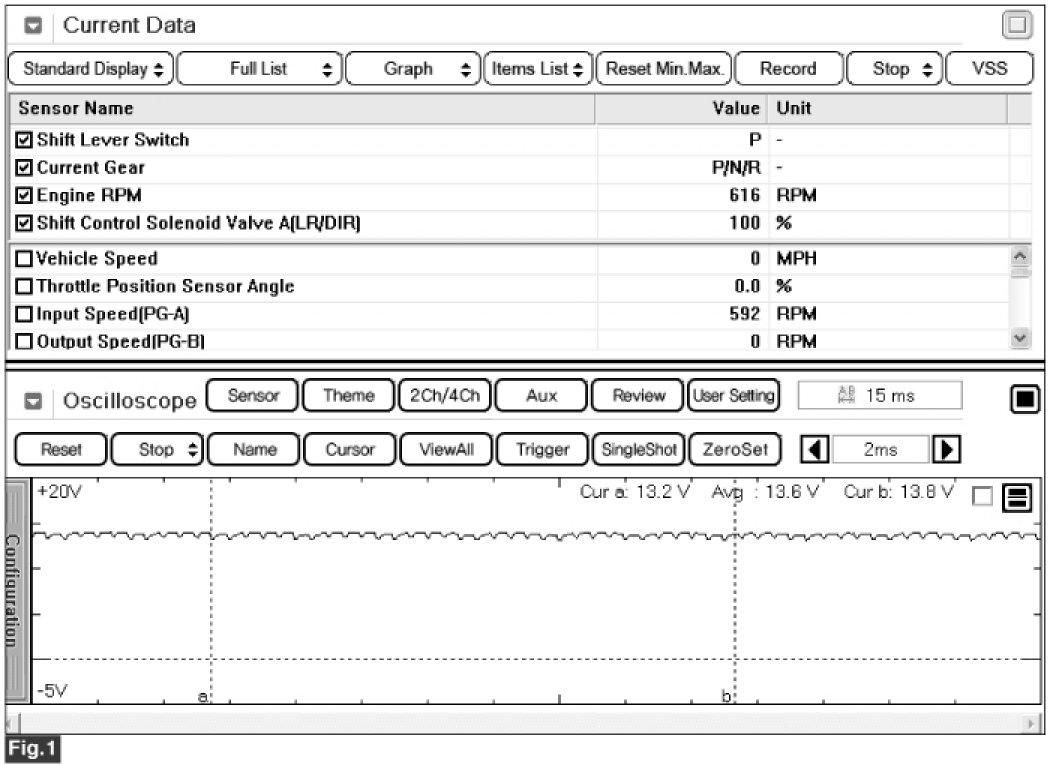

Fig 1) P,N
Fig 2) R

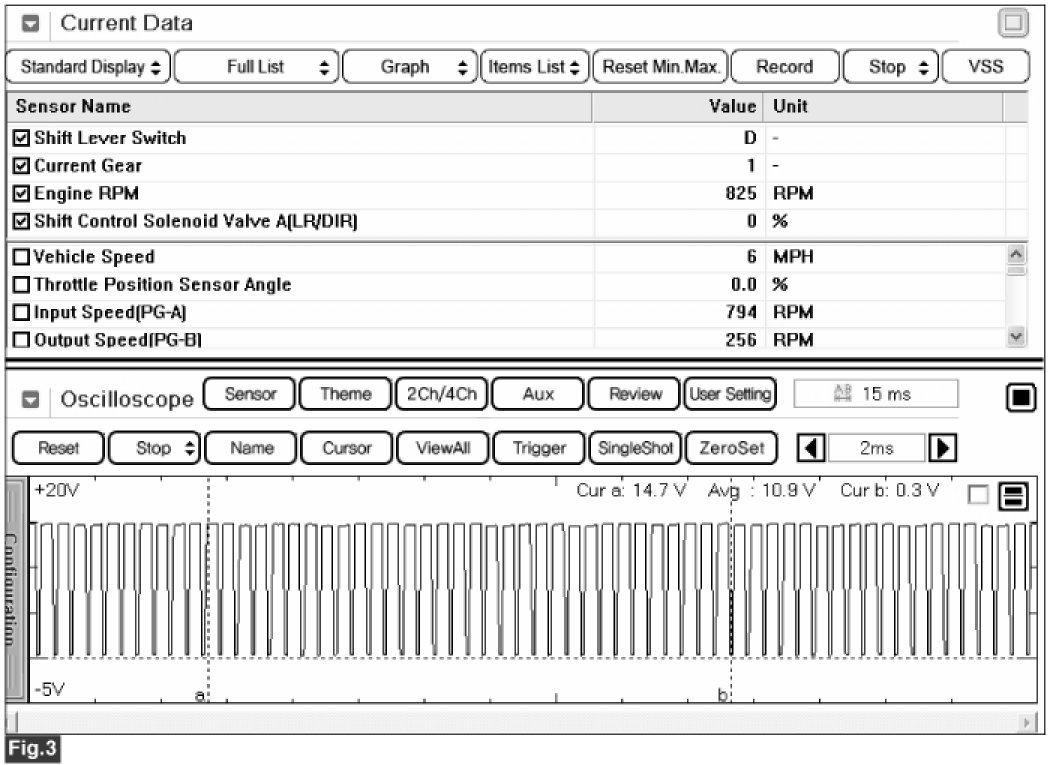

Fig 3) "1st" gear

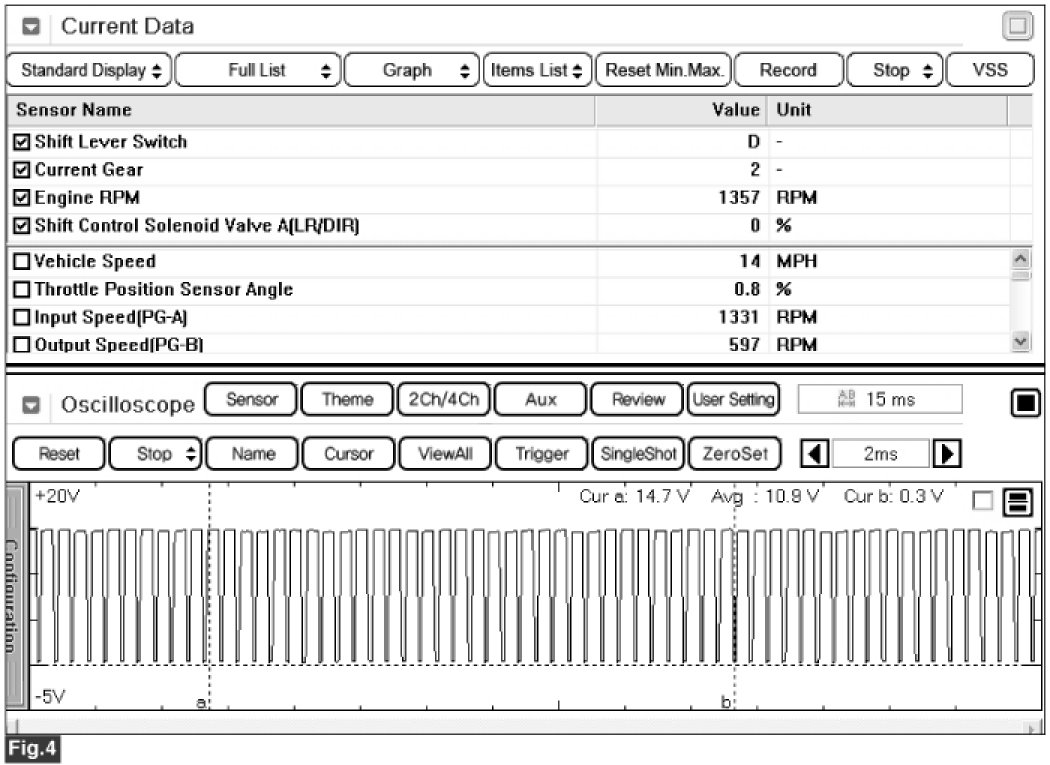

Fig 4) "2nd" gear

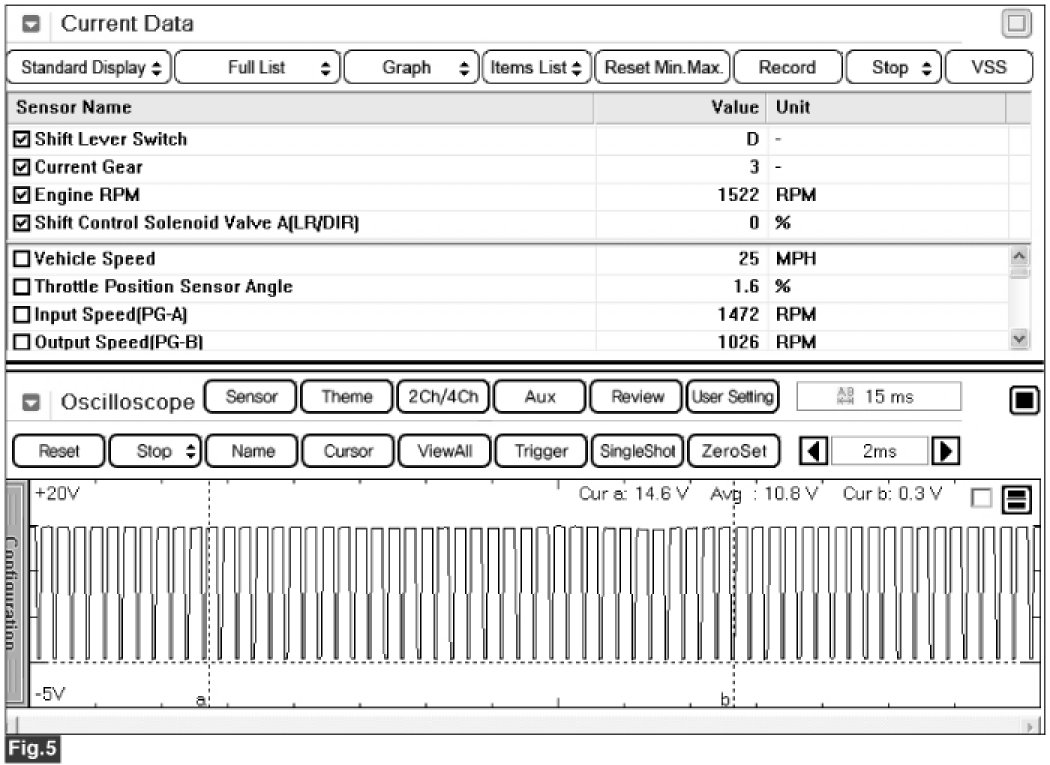

Fig 5) "3rd" gear

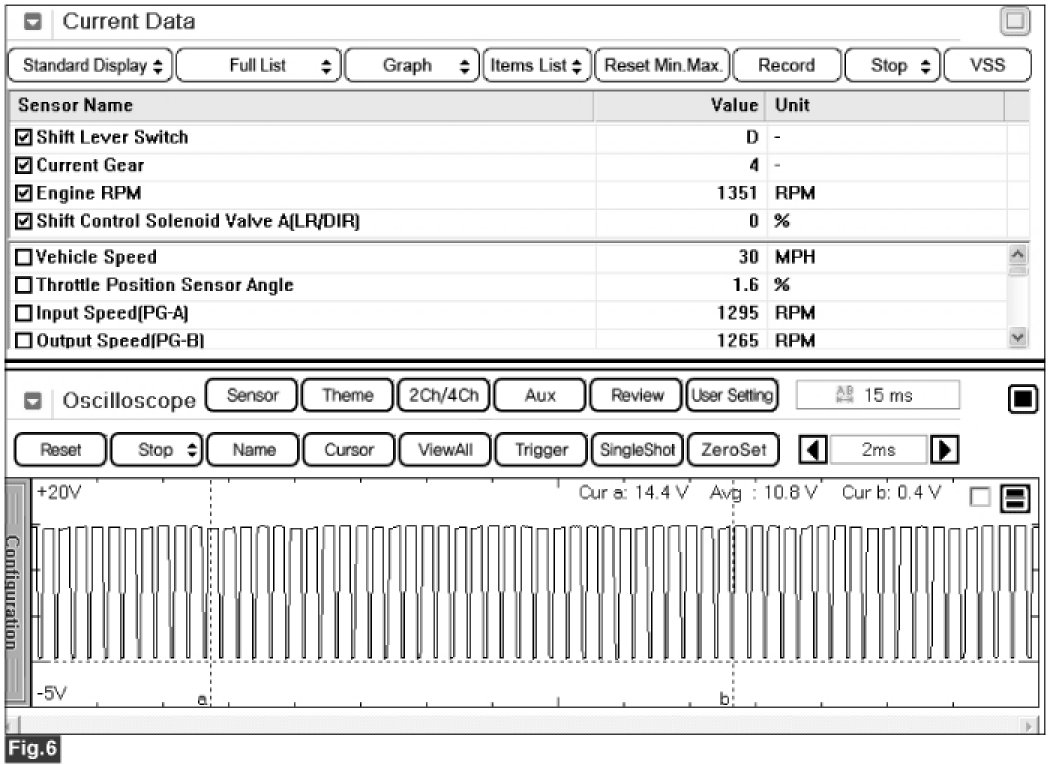

Fig 6) "4th" gear

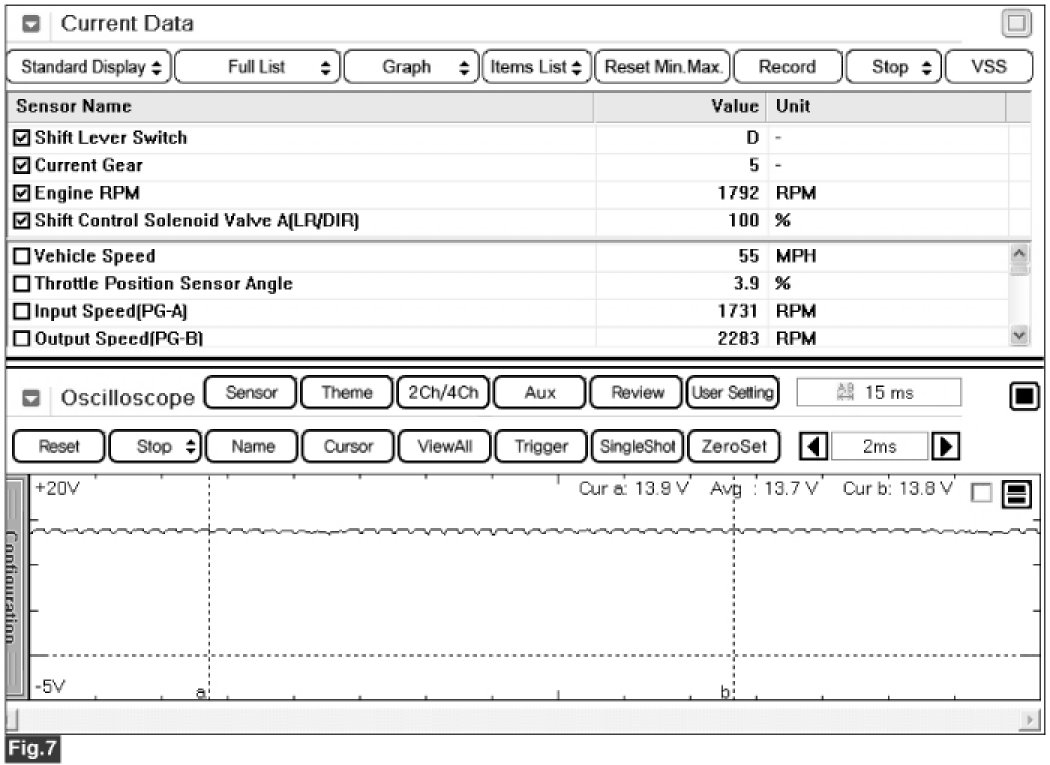

Fig 7) "5th" gear
5. Does "LR/DIR SOL DUTY " follow the referance data?
