Monitor DTC Status

P0748 Pressure Control Solenoid Valve (VFS) \'A\' Electrical

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "VF SOL. VALVE" parameter on the GDS.
4. Shift gear at each position.

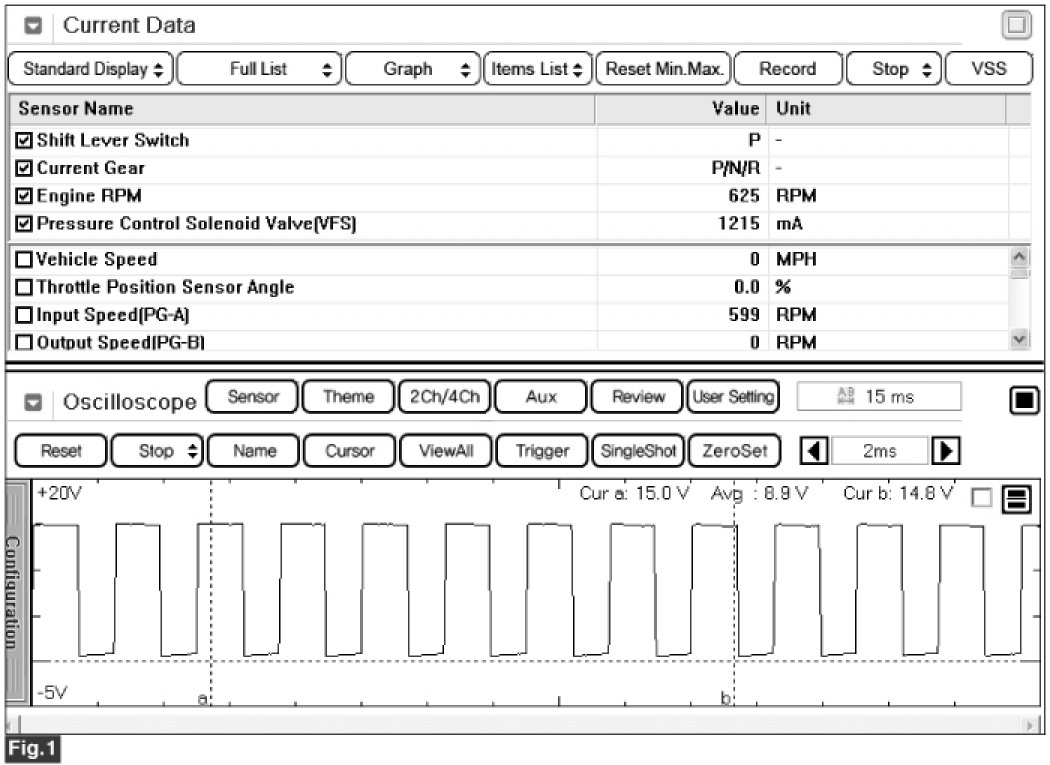

Fig 1) P,N

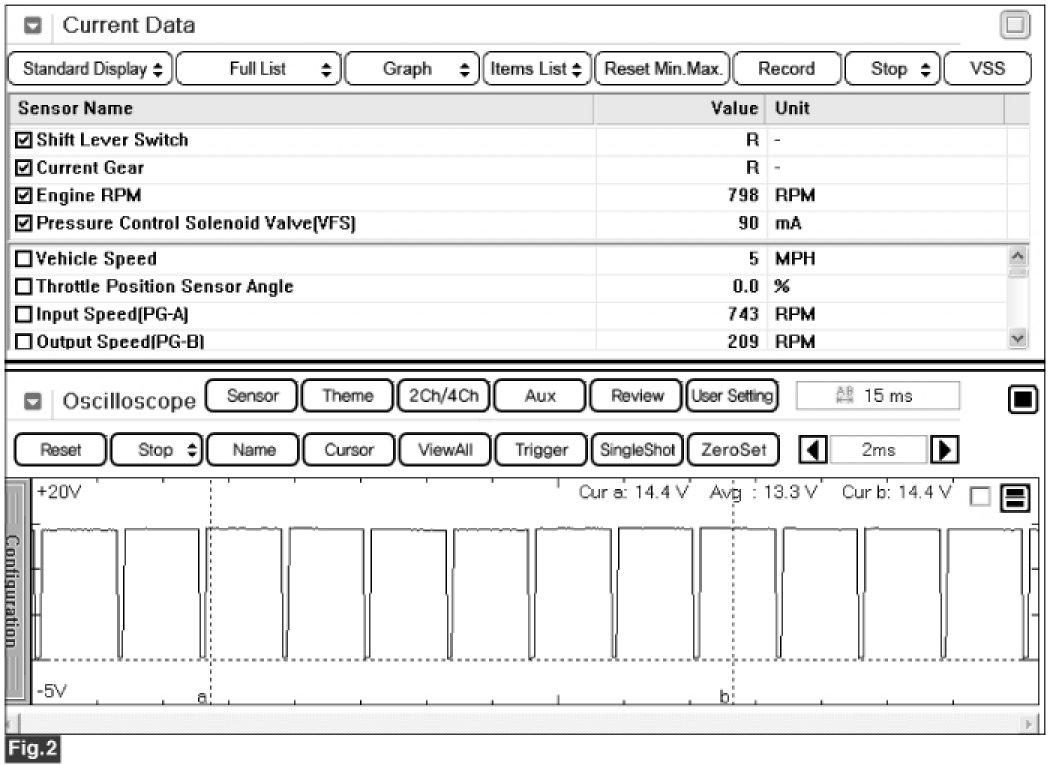

Fig 2) "R" gear

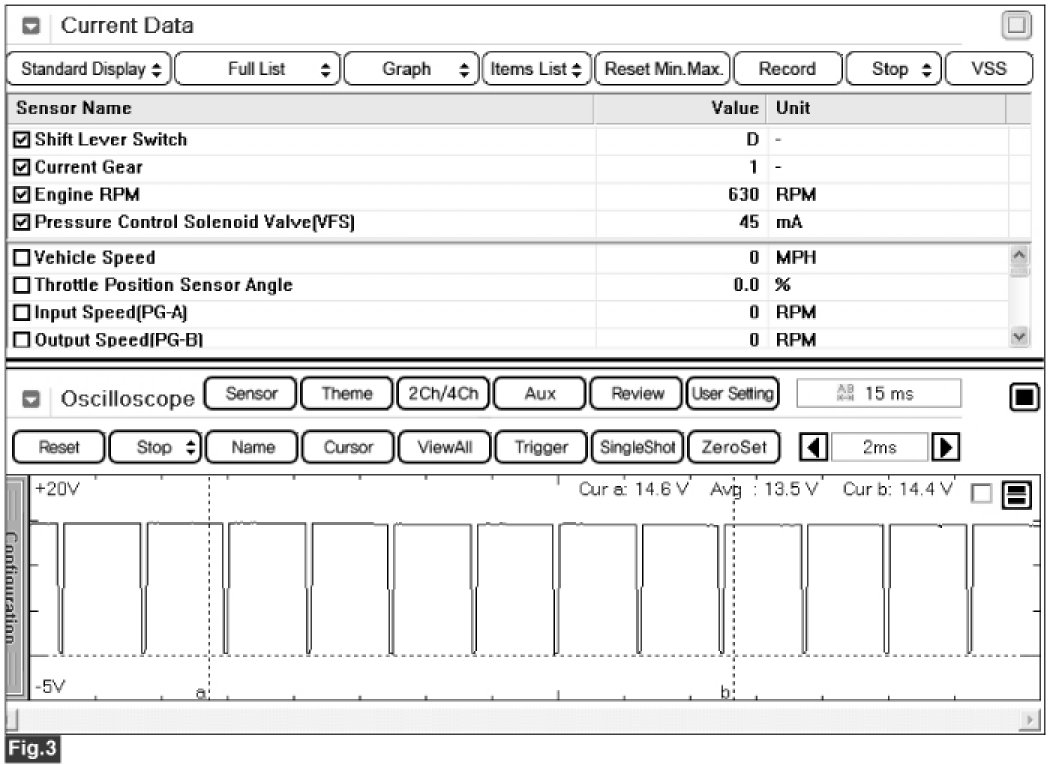

Fig 3) "D Range 1st" gear,VEHICLE SPEED=0
Fig 4) "D Range 1st" gear

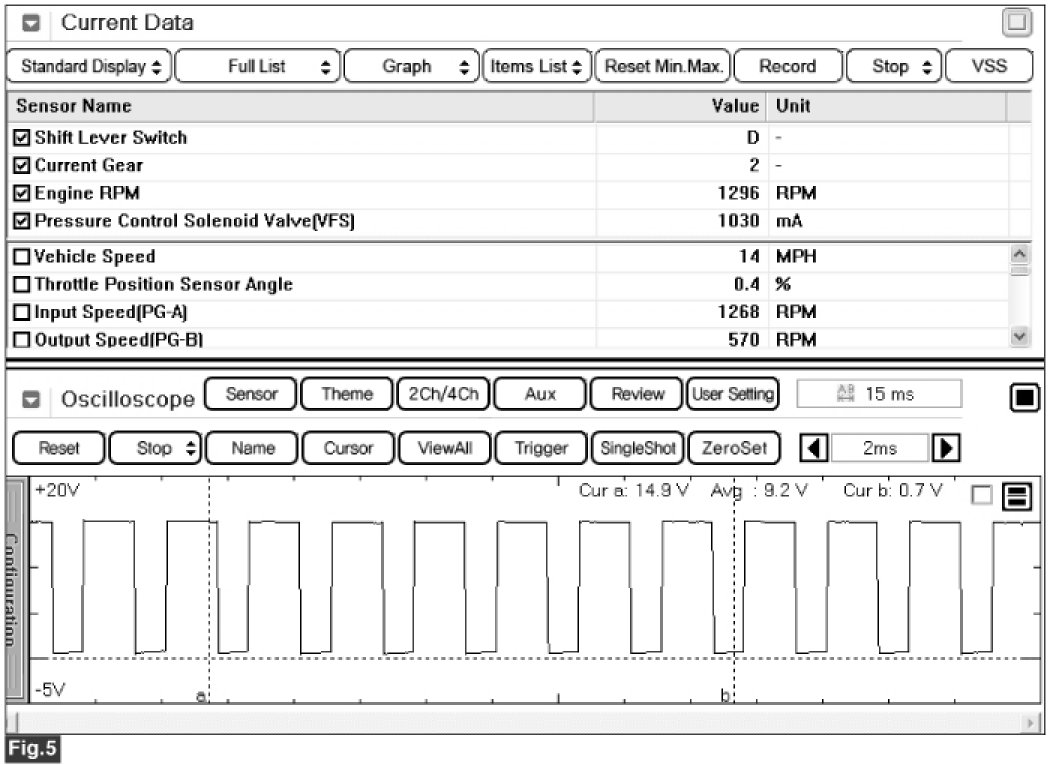

Fig 5) "2nd" gear

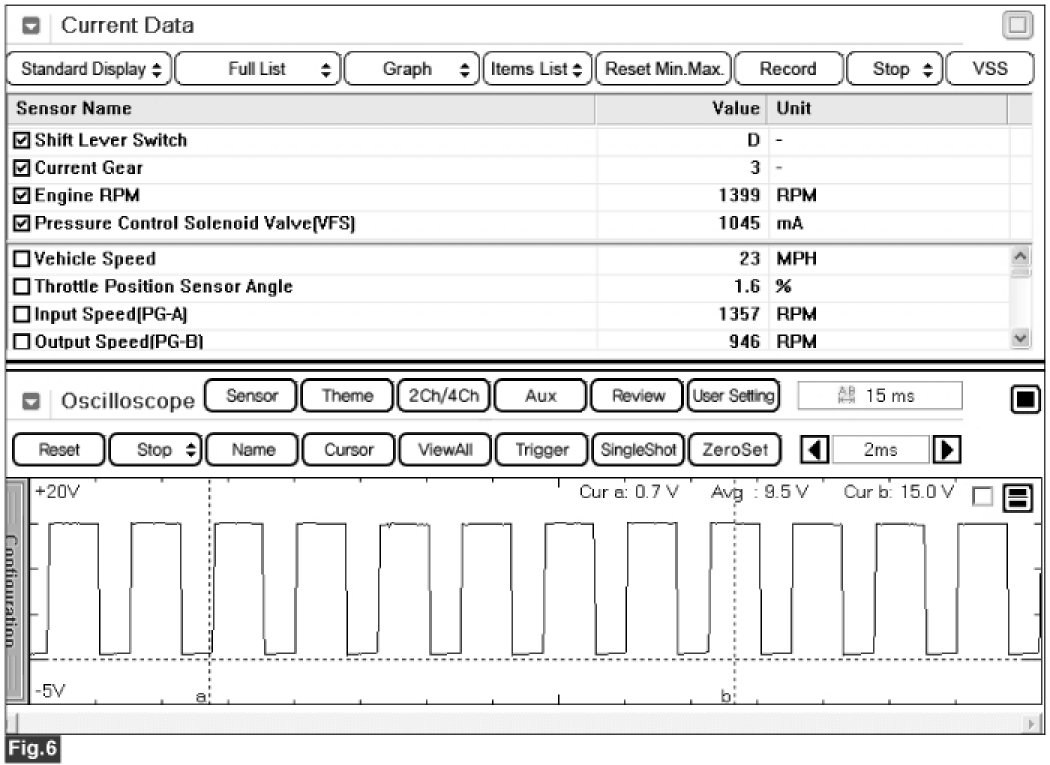

Fig 6) "3rd" gear

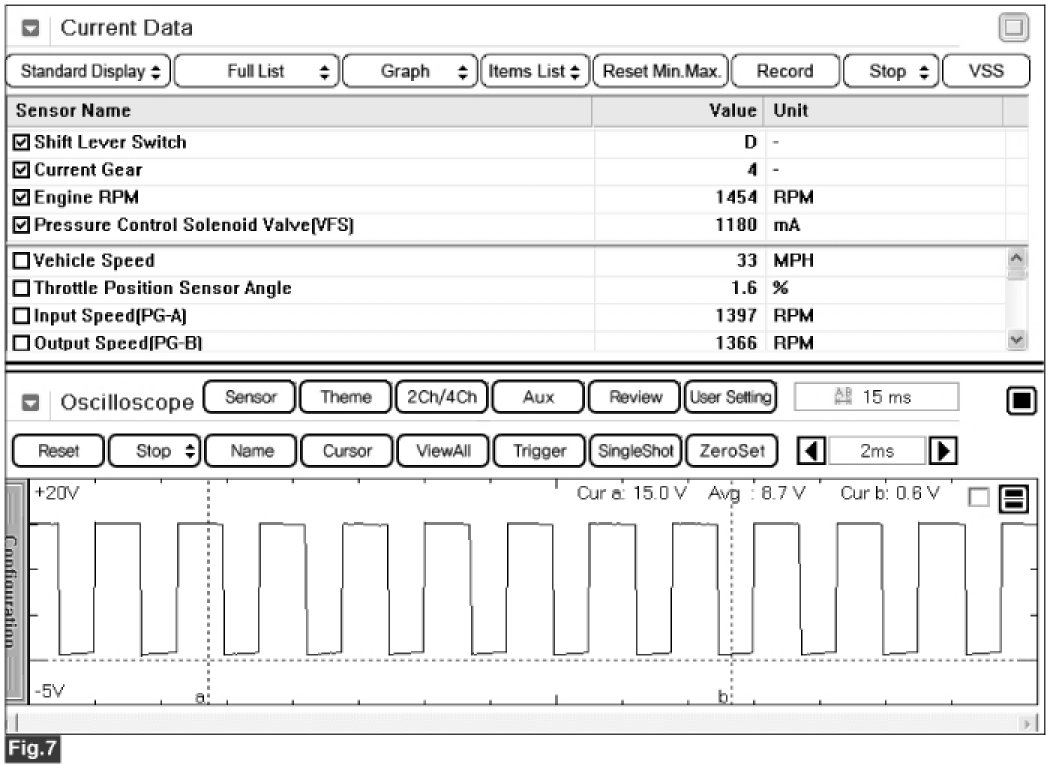

Fig 7) "4th" gear

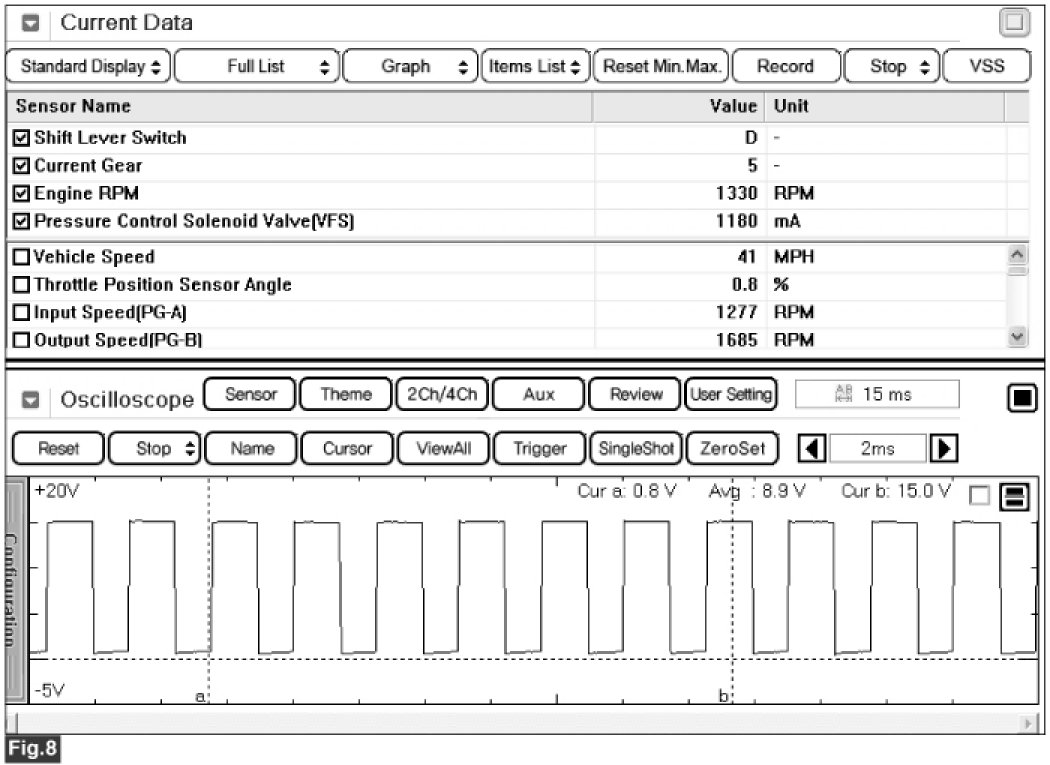

Fig 8) "5th" gear
5. Does "VF SOL DUTY " follow the referance data?
