Component Inspection

P0707 Transmission Range Sensor Circuit Low Input

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Remove "TRANSAXLE RANGE SWITCH".

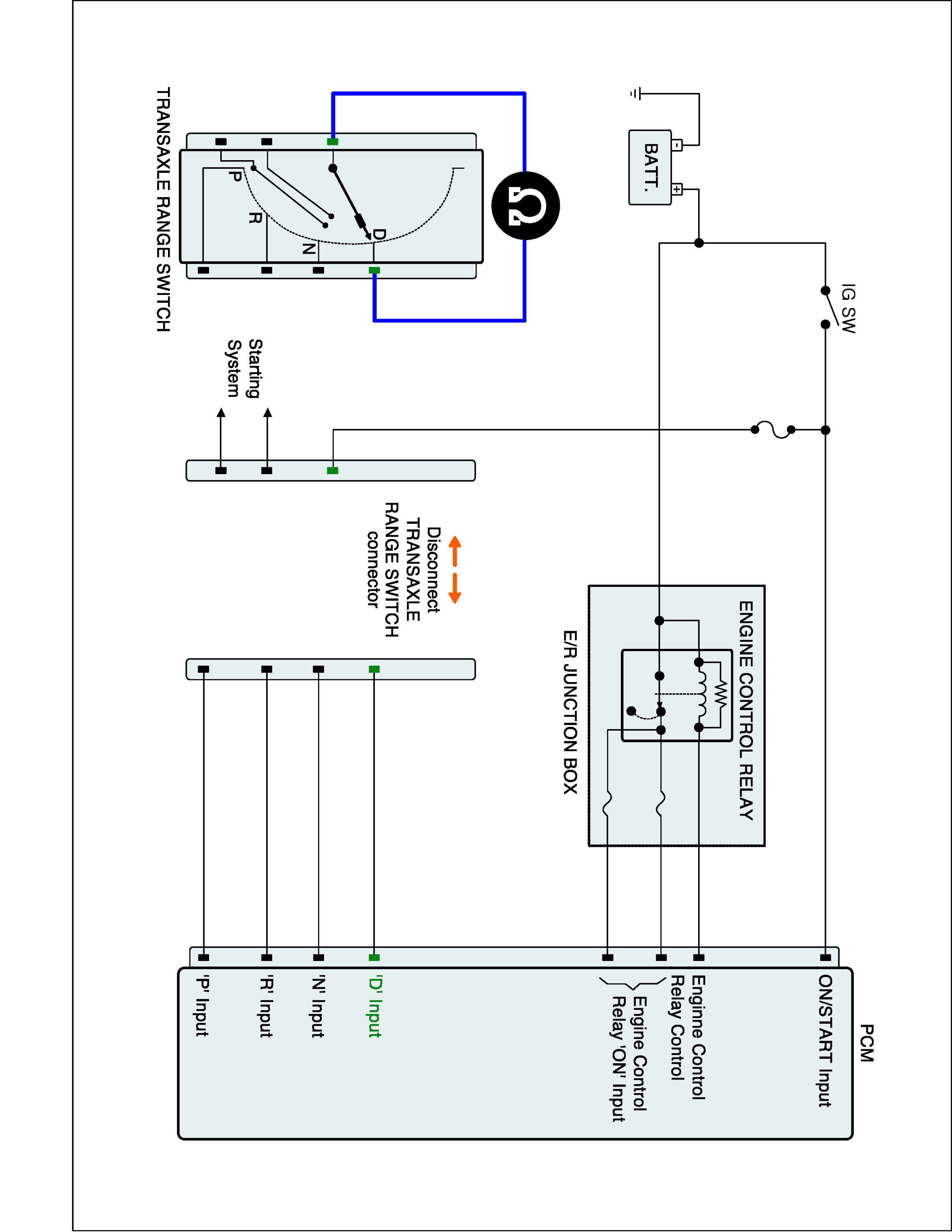

3. Measure the resistance between each terminal of the sensor.

Specification :Approx. 0 Ohms (refer to the "TABLE" as below)

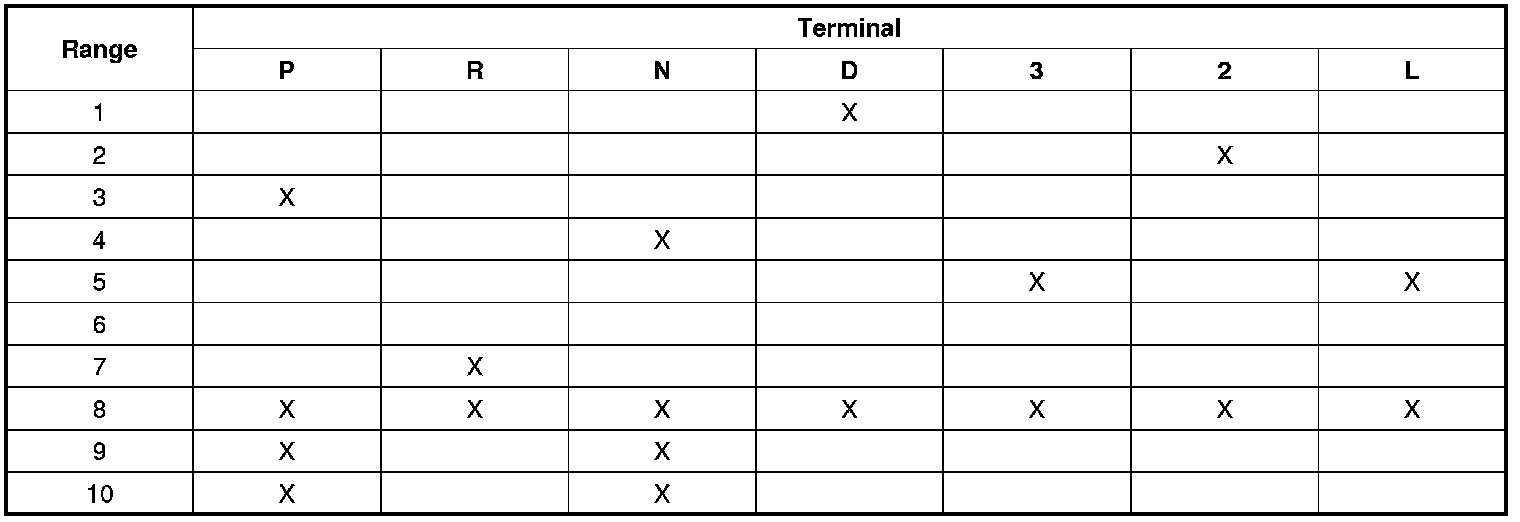

[ RANGE SWITCH continuity check table (Case of SPORTS MODE vehicle has no 3,2,L range) ]

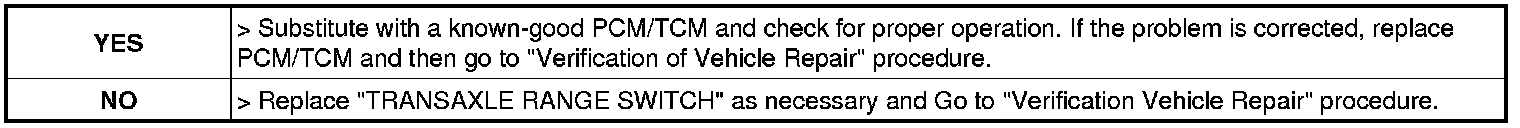

4. Is resistance within specifications?
