Home >> Kia >> 2010 >> Forte L4-2.4L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0704 >> General Information

General Information





P0704 Clutch Switch Input Circuit Malfunction

General Information

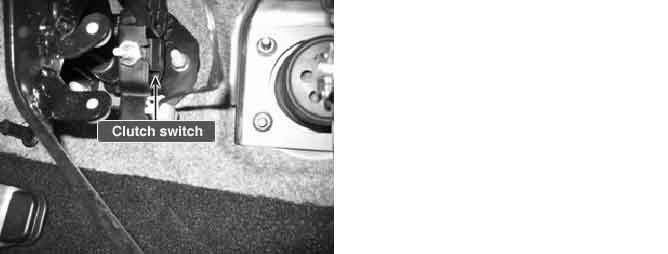

Component Location





General Description

Clutch switch senses the operation of clutch at a M/T vehicle. And the signal is displayed by ON/OFF.

DTC Description

ECM sets P0704 when detects Open or Short in signal circuit.

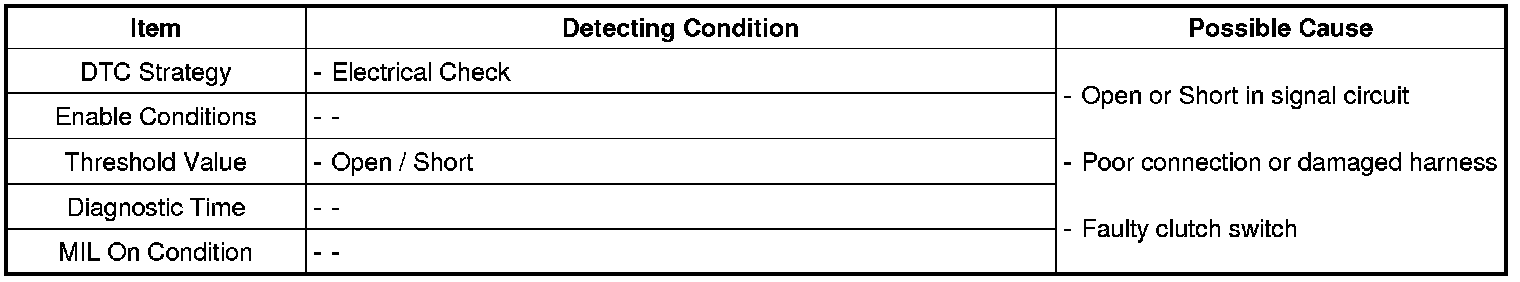

DTC Detecting Condition

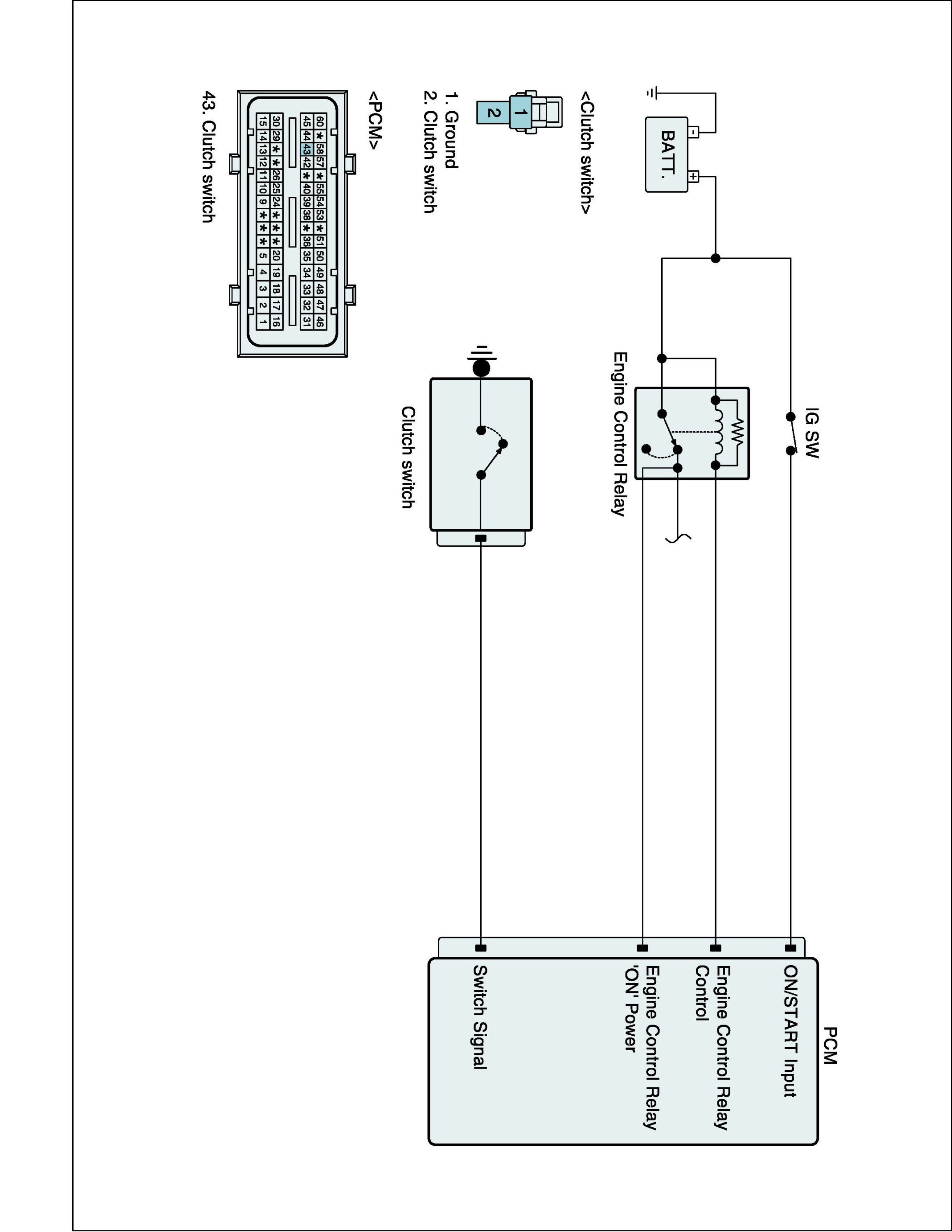

Diagnostic Circuit Diagram
