Component Inspection





P0448 Evaporative Emission System

Vent Control Circuit Shorted - Inspection/Repair - Component Inspection

Component Inspection

1. IG KEY 'OFF'.
2. Disconnect CCV harness connector.
3. Measure resistance between control terminal and power terminal of CCV connector. (Component side)
Specification

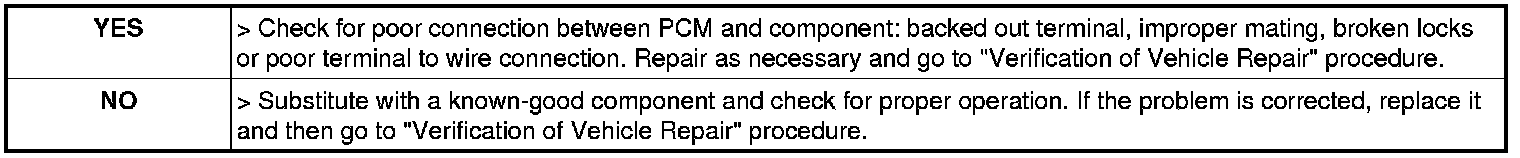

4. Is resistance within the specification?
