C1616 CAN Bus Off

General Information

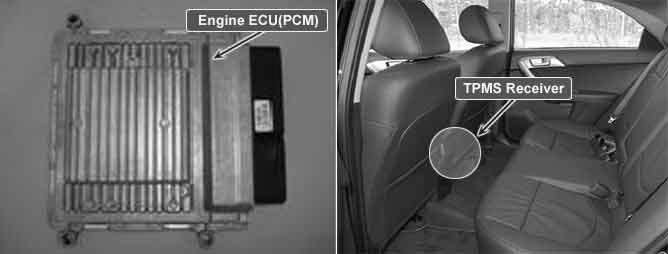

Component Location





General Description

TPM Receiver uses CAN communication line for diagnosis tool, receiving vehicle speed signal, sending signal to instrument cluster.
TPM Receiver receives tire information form WE sensor and it evaluates and analyzes the data. If it is necessary to inform driver about state of TPMS, the ECU sends messages to the instrument cluster via CAN.

DTC Description

The TPMS ECU checks the CAN communication lines for normal control, and sets this code if CAN controller failed to send or receive message.

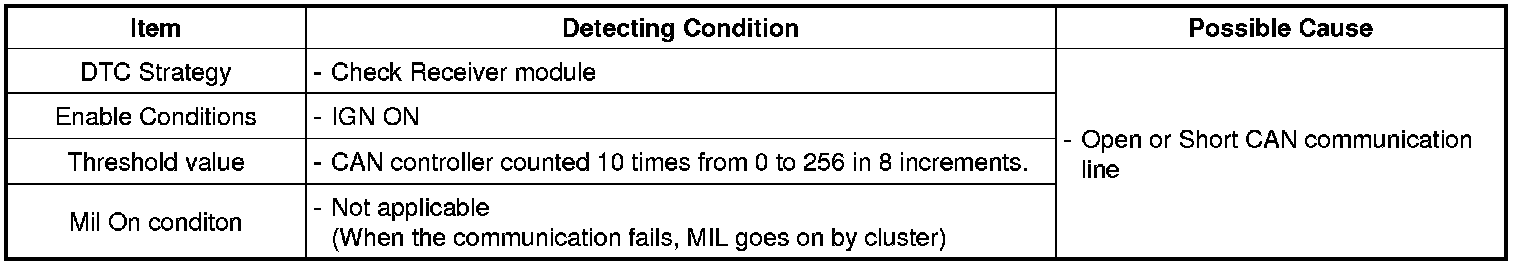

DTC Detecting Condition

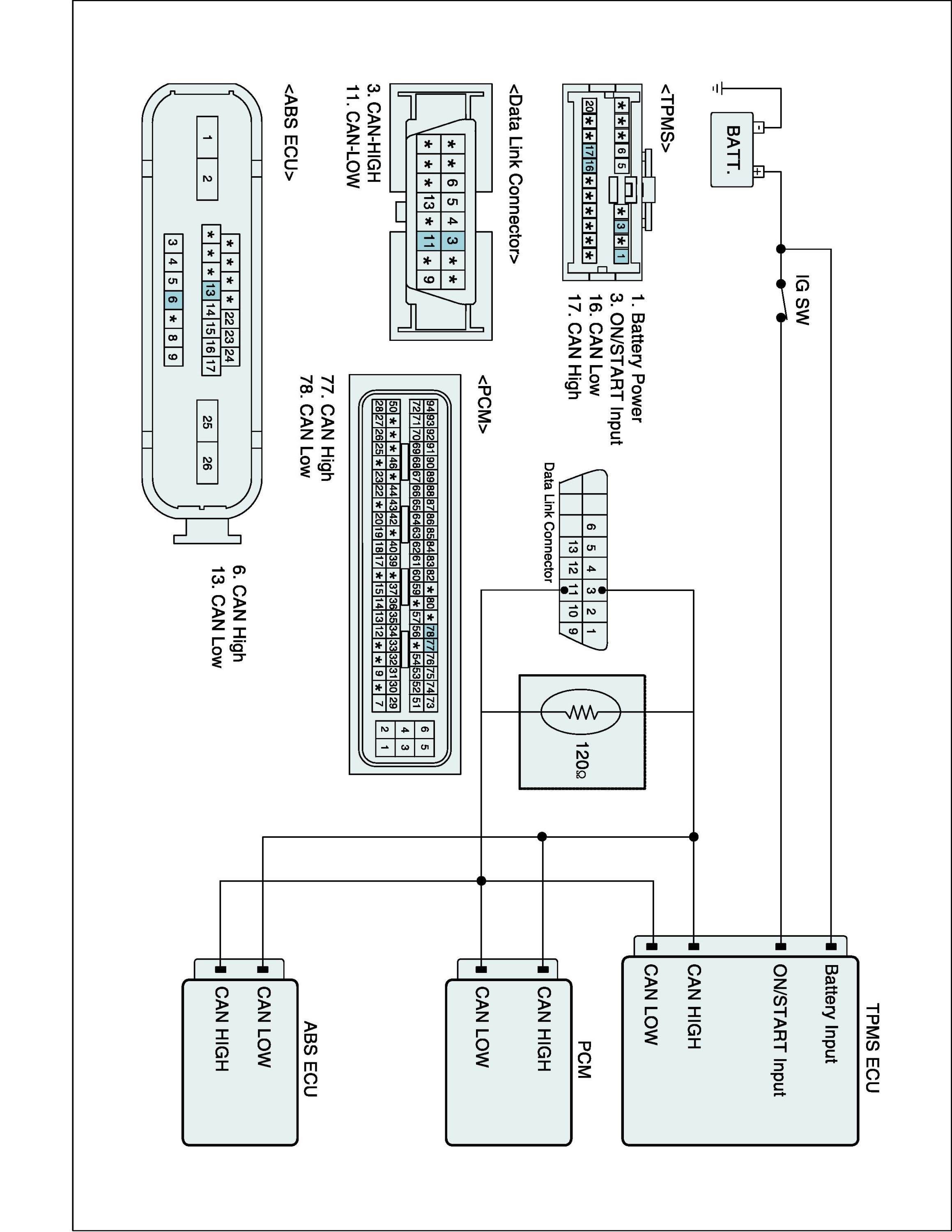

Diagnostic Circuit Diagram
