Monitor Scantool Data

C1261 Steering Angle Sensor Not Calibrated

Scantool Diagnosis - Monitor Scantool Data

Monitor Scantool Data

Steering angle calibration
1. Perform steering angle sensor calibration.
(1) Ignition "ON" & Engine "OFF".
(2) Set the steering wheel so that the wheels point straight ahead.
(3) Connect scantool to Data Link Connector (DLC).

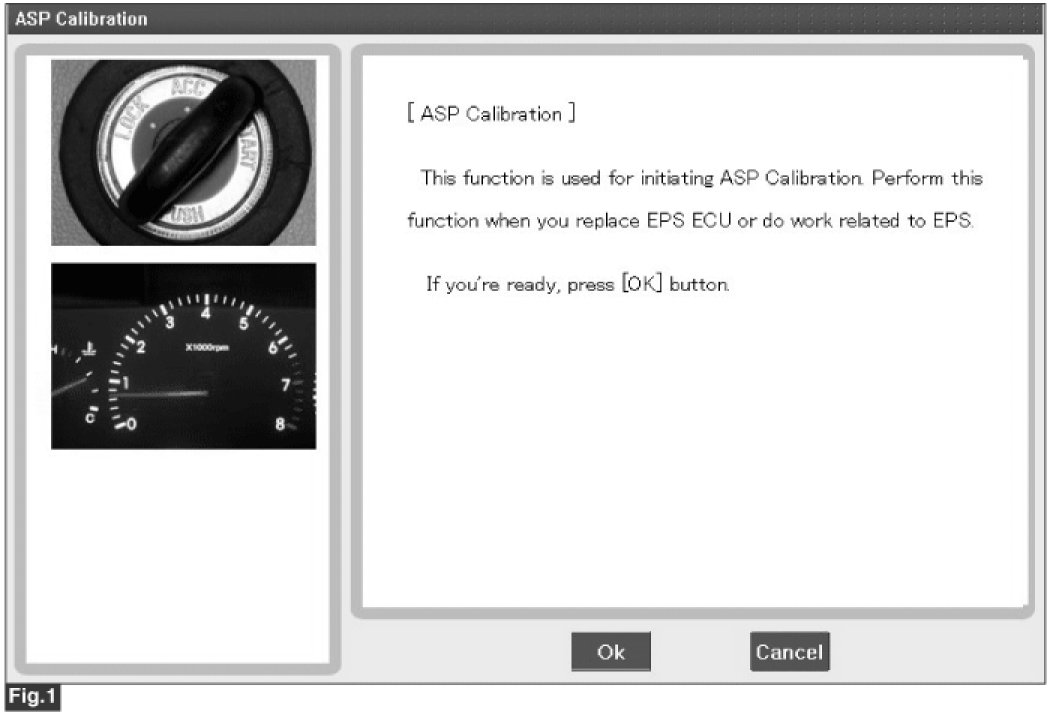

(4) Perform steering angle sensor calibration. (figure 1).
(5) Go to "Component Inspection" Procedure.

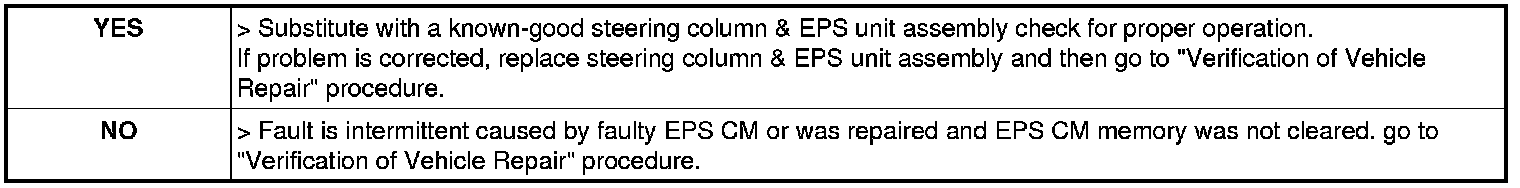

(6) Are any DTCs present?
