Monitor DTC Status

B1389 STPS (Seat Track Position Sensor)-Driver Defect

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. After driver seat is fully moved to rearward, Monitor the "STPS-Driver Status " parameter on the Scantool.

Specification :Driver seat is fully moved to rear : Rearward,
Driver seat is fully moved to front : Forward.




Fig.1) Rearward Data

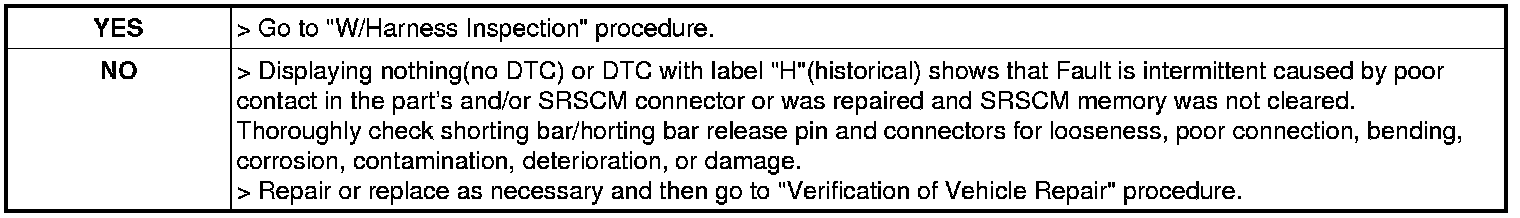

4. Is DTC present problem?
