Monitor DTC Status

B1369 Pretensioner Front-Passenger Resistance Circuit Short to Ground

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. Monitor the "Pretensioner front-Passenger resistance" parameter on the Scantool.

Specification :0.9 Ohms < Resistance of Pretensioner front-Passenger < 6.6 Ohms

Reference :In a case of an open in the Pretensioner front-Passenger circuit : FAIL
In a case of a short to battery in the Pretensioner front-Passenger circuit: FAIL
In a case of a short to ground in the Pretensioner front-Passenger circuit : FAIL




Fig.1) Normal Data

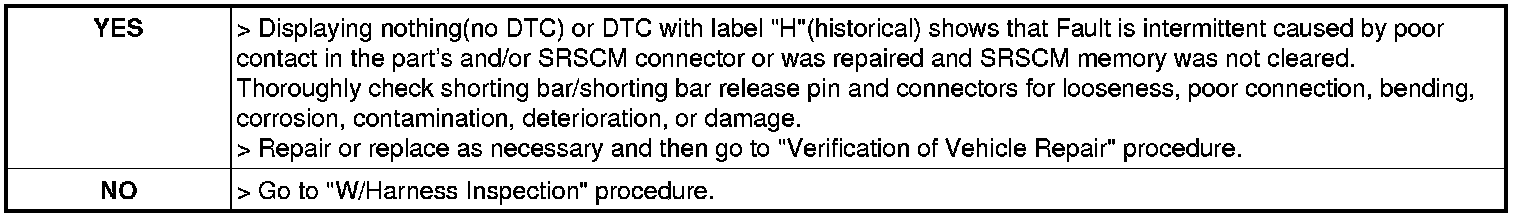

4. Is parameter displayed within specifications?
