Component Inspection

B1241 Evaporator Sensor Short (Low)

Inspection/Repair - Component Inspection

Component Inspection

Check Incar temp.sensor
1. Ignition "OFF".
2. Disconnect Evaporator sensor and Connect A/C control unit main harness connector.

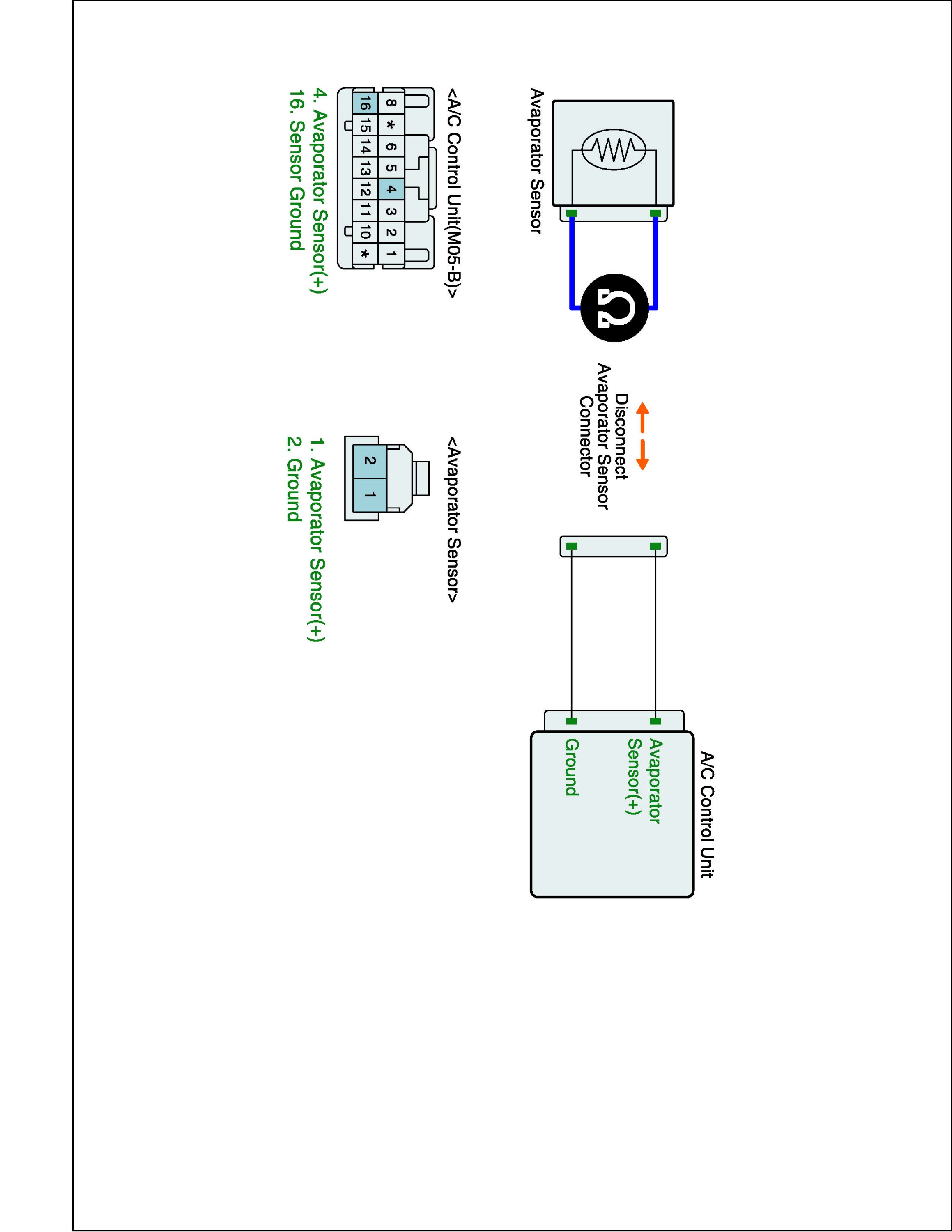

3. Measure resistance between Signal (+) terminal of Evaporator sensor harness connector and Sensor ground harness connector. (Component side)

Specification :Refer the specifications in fig.1

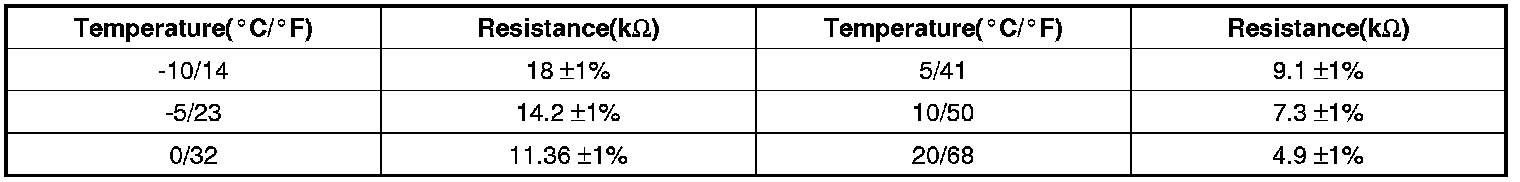

Fig.1) ** Specifications : Resistance value of Evaporator sensor as a function of temperature.

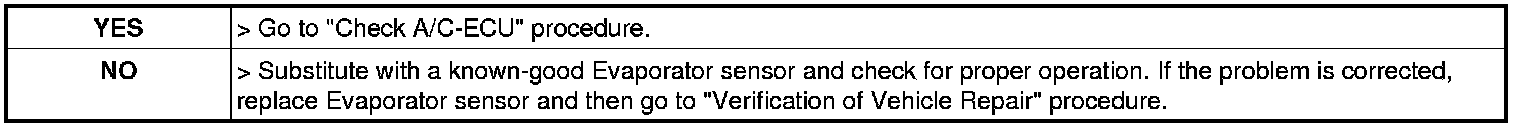

4. Is "resistance" display near the specified value?





Check A/C-ECU
1. Ignition "OFF".
2. Disconnect Evaporator sensor and Connect A/C control unit main harness connector.
3. Ignition "ON"(ENGINE "OFF").

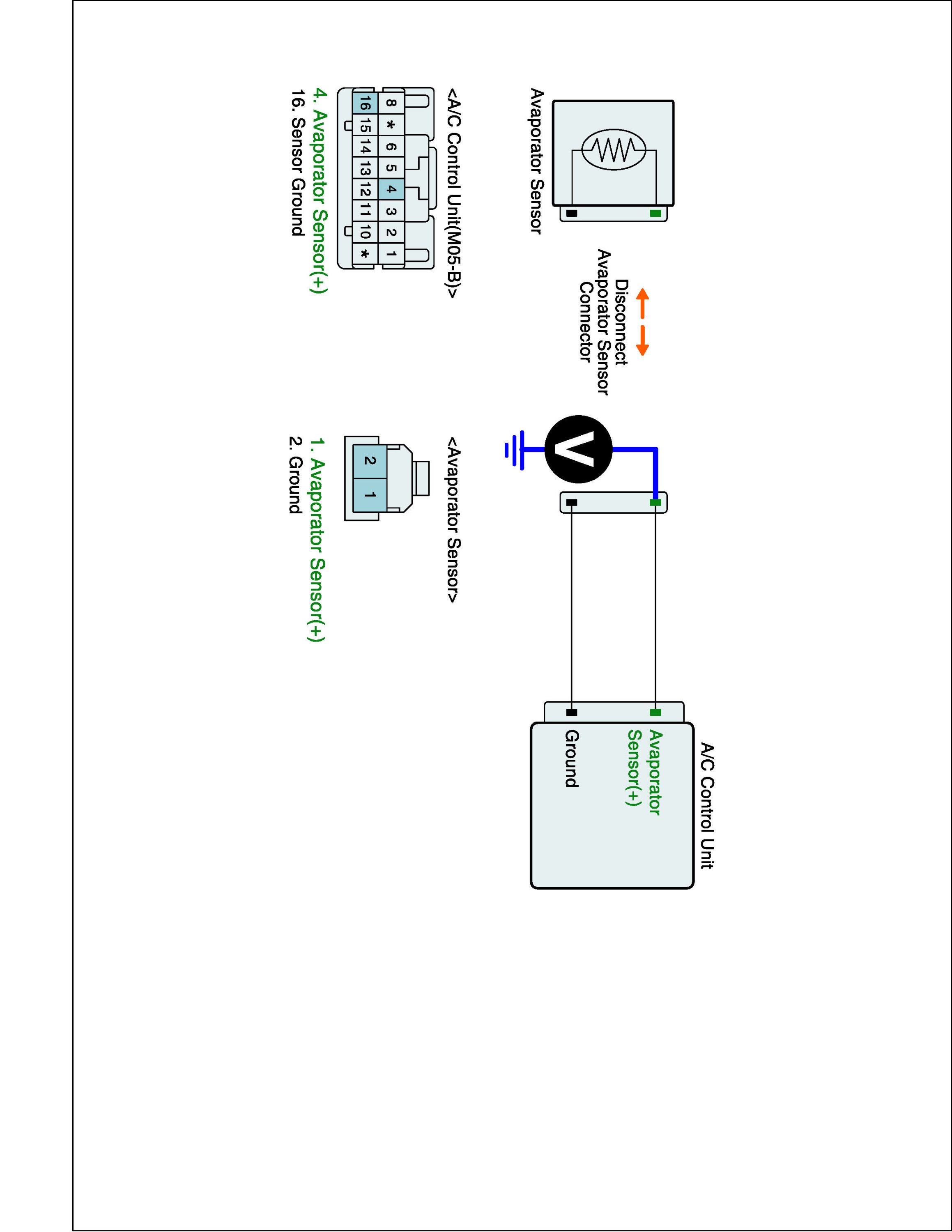

4. Measure voltage between Signal (+) terminal of Evaporator sensor harness connector and chassis ground. (Component side)

Specification :Approx. 5 V

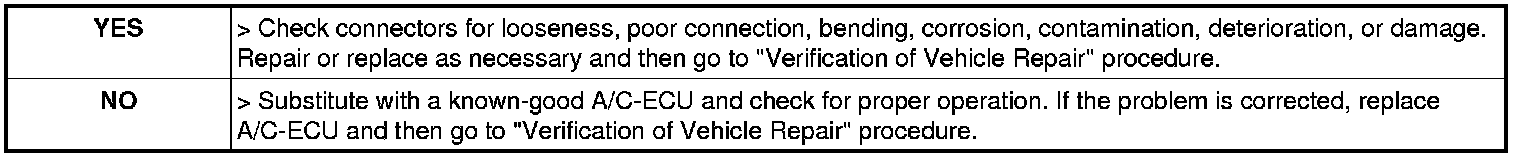

5. Is "voltage" display near the specified value?
