B1209 Intake Potentiometer Short (High)

General Information

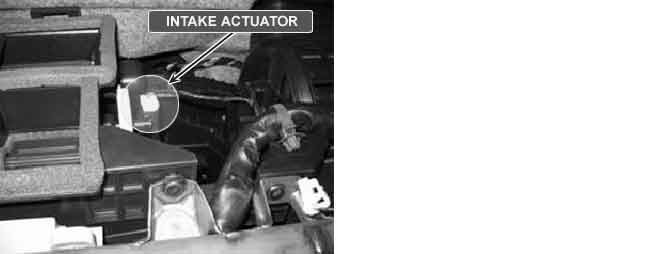

Component Location





General Description

The actuator contains a motor that changes intake door position and a potentiometer that monitors position of the door. When the driver changes the air intake switch, the ECU operates intake door motor to turn the intake door to the intended position. (in the FRESH mode, the intake door is closed. In REC mode, the intake door is opened) During operation the potentiometer delivers an intake door position to the A/C ECU.

DTC Description

The Airconditioner Control Module sets DTC B1209 if the Feed Back signal of Intake Actuator has been detected over 4.9 V for 100ms.

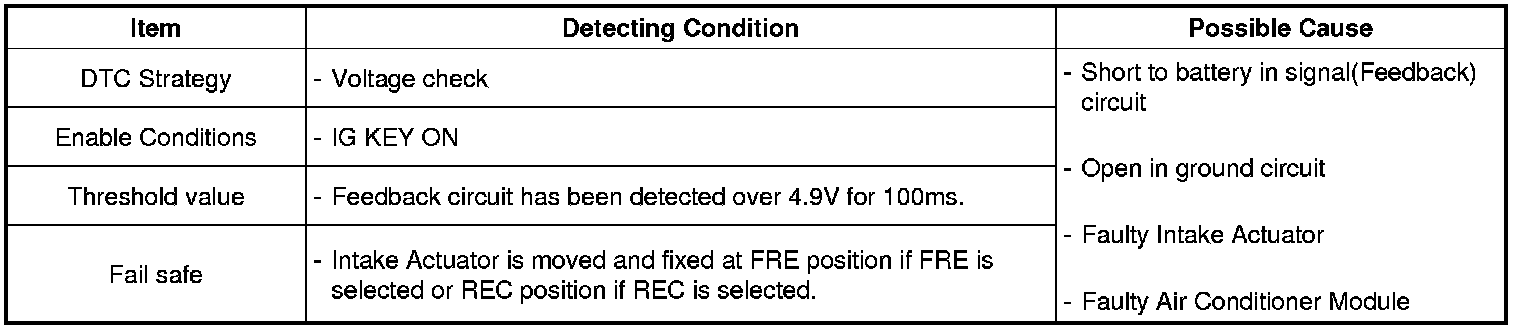

DTC Detecting Condition





Specification

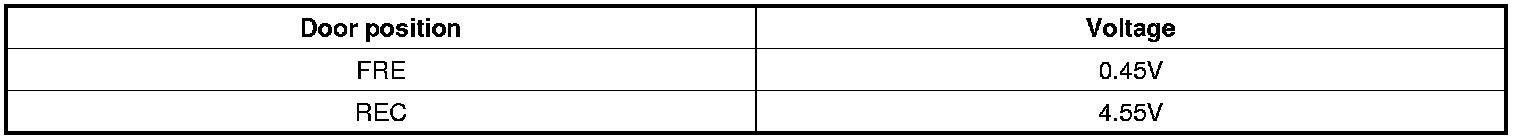

** Voltage value of Intake potentiometer as a function of position of Intake door






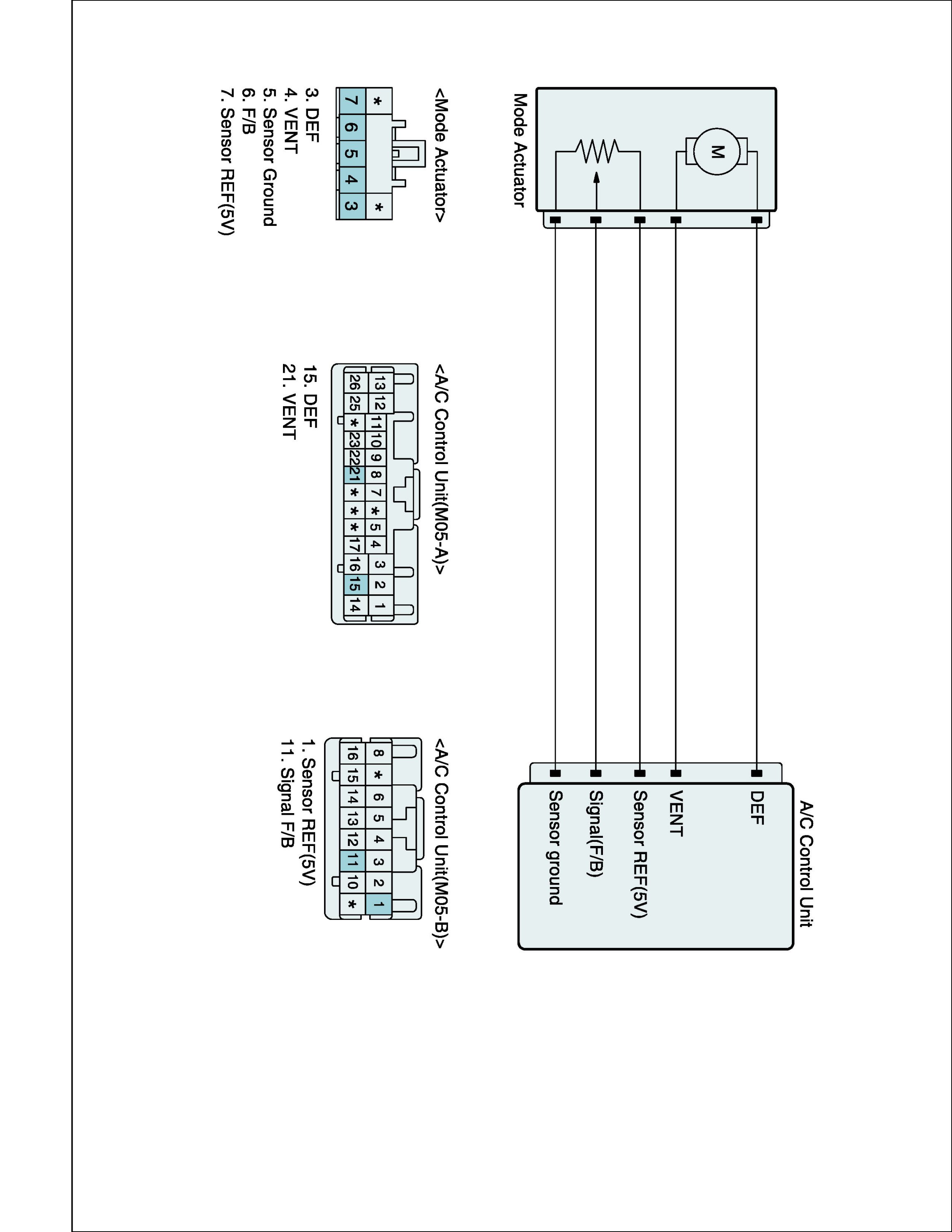

Diagnostic Circuit Diagram
