Components and Components Location (M5BF2)

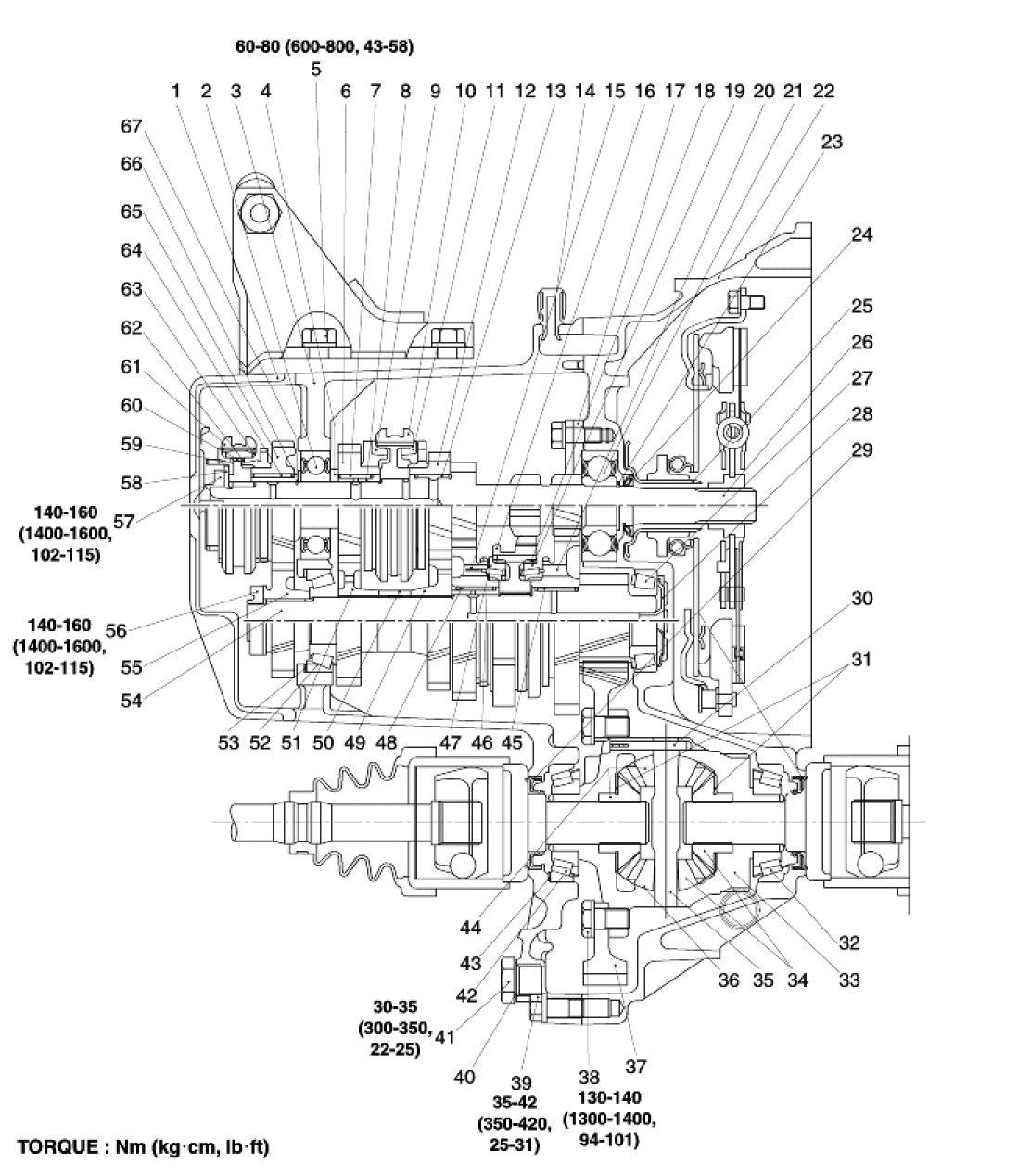

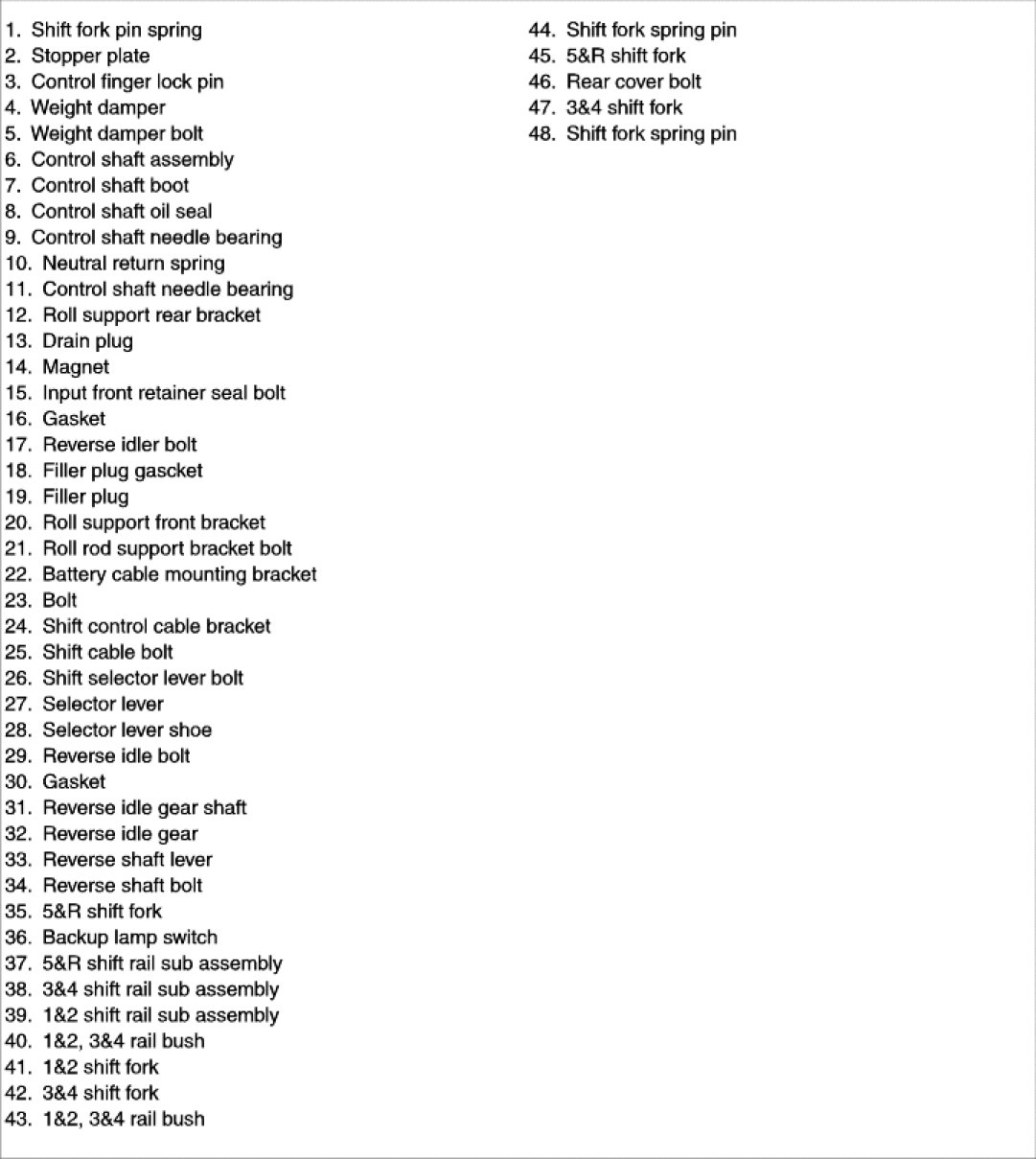

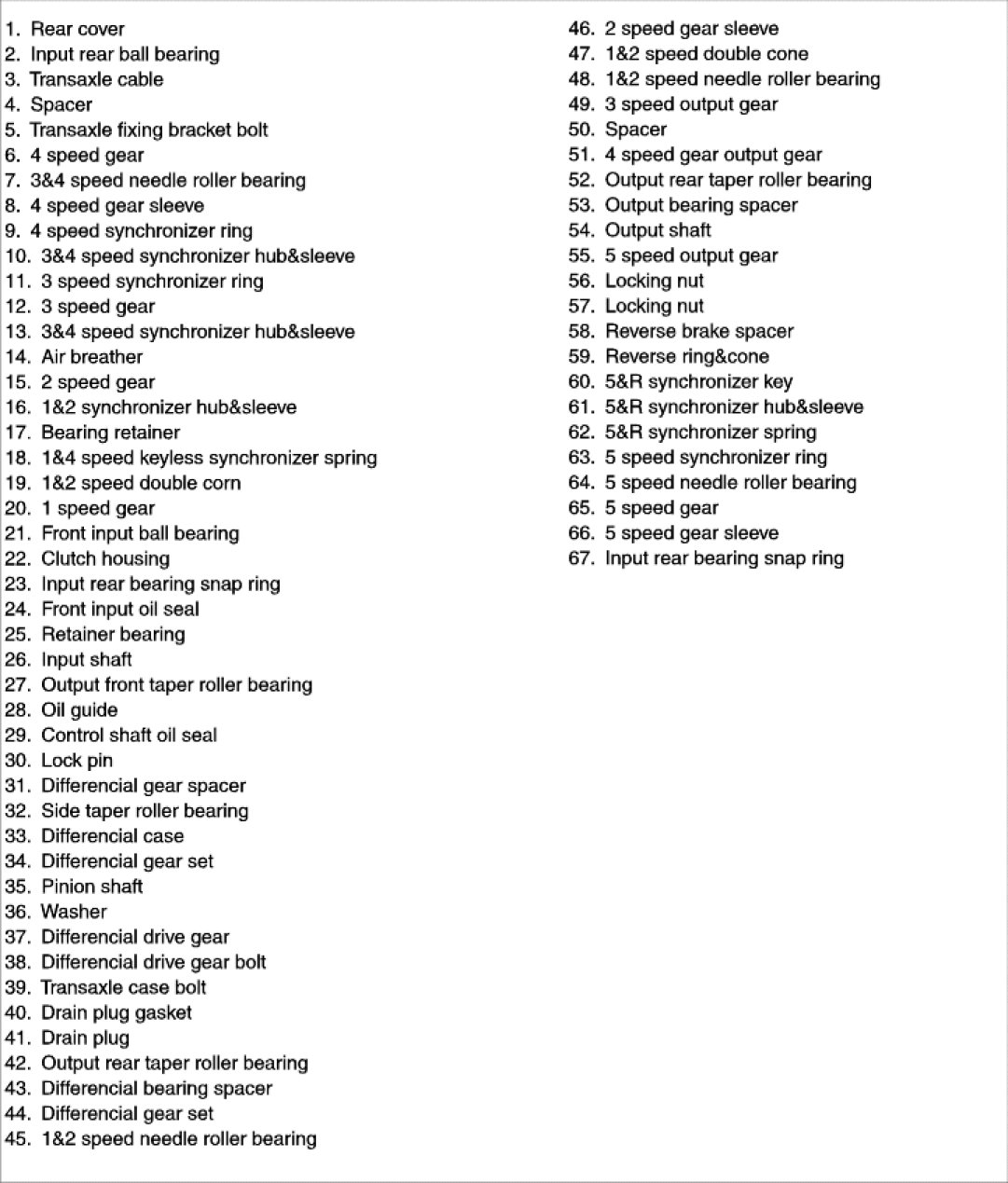

SECTION VIEW

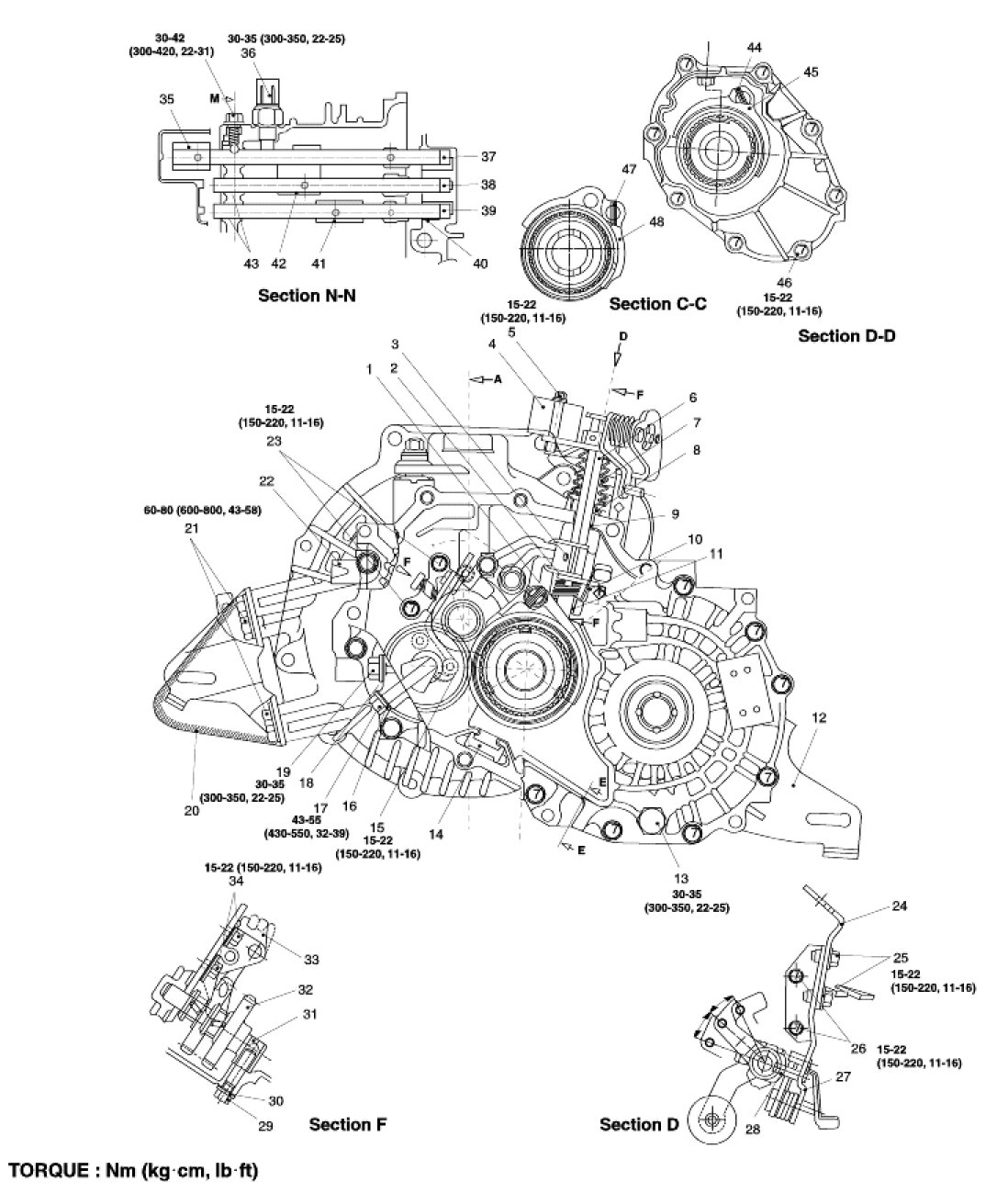

COMPONENTS(1)

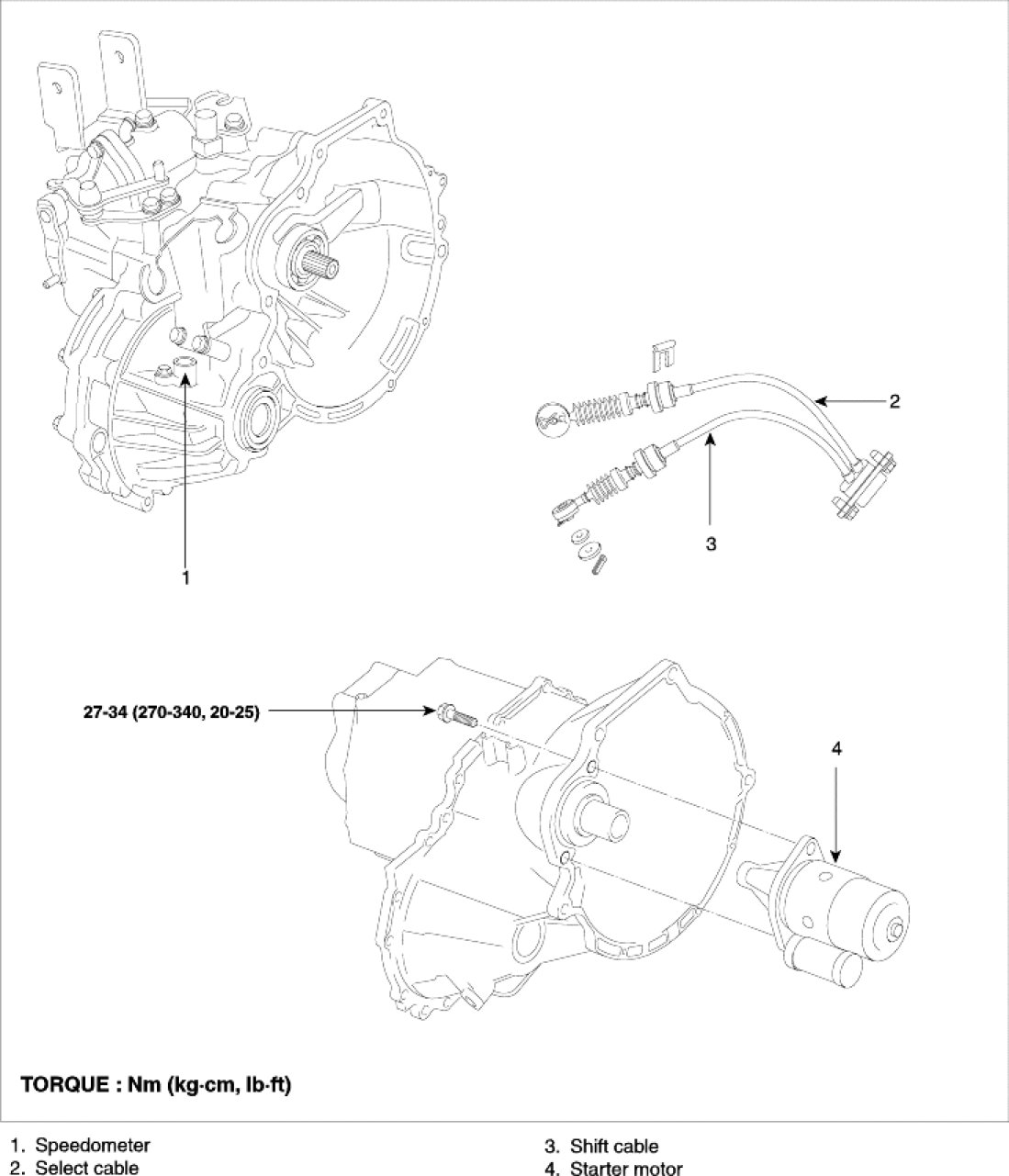

COMPONENTS(2)

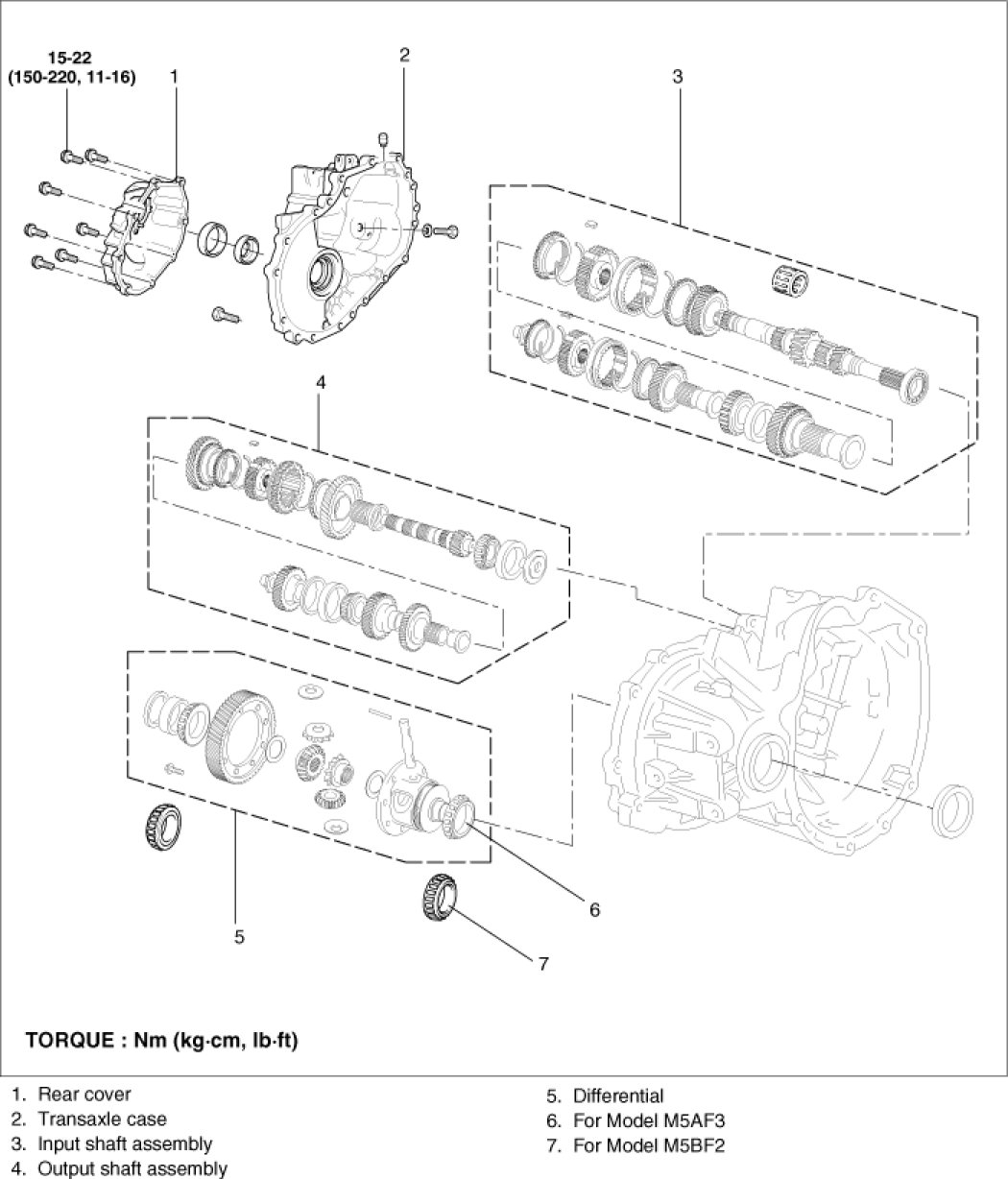

COMPONENTS(3)










COMPONENTS(4)
