Pinout Values and Diagnostic Parameters
TCM

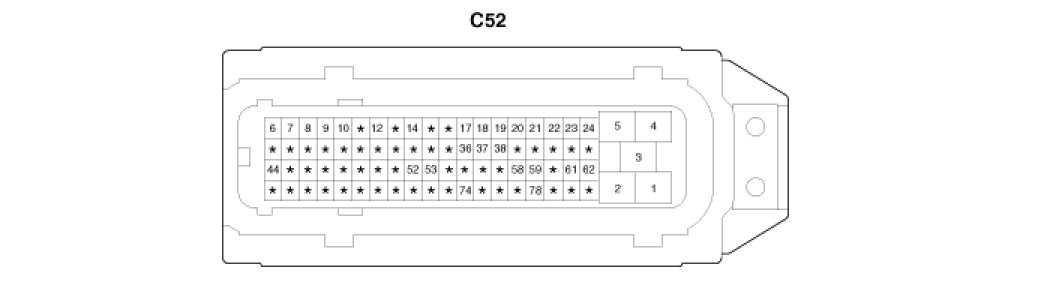

harness connector

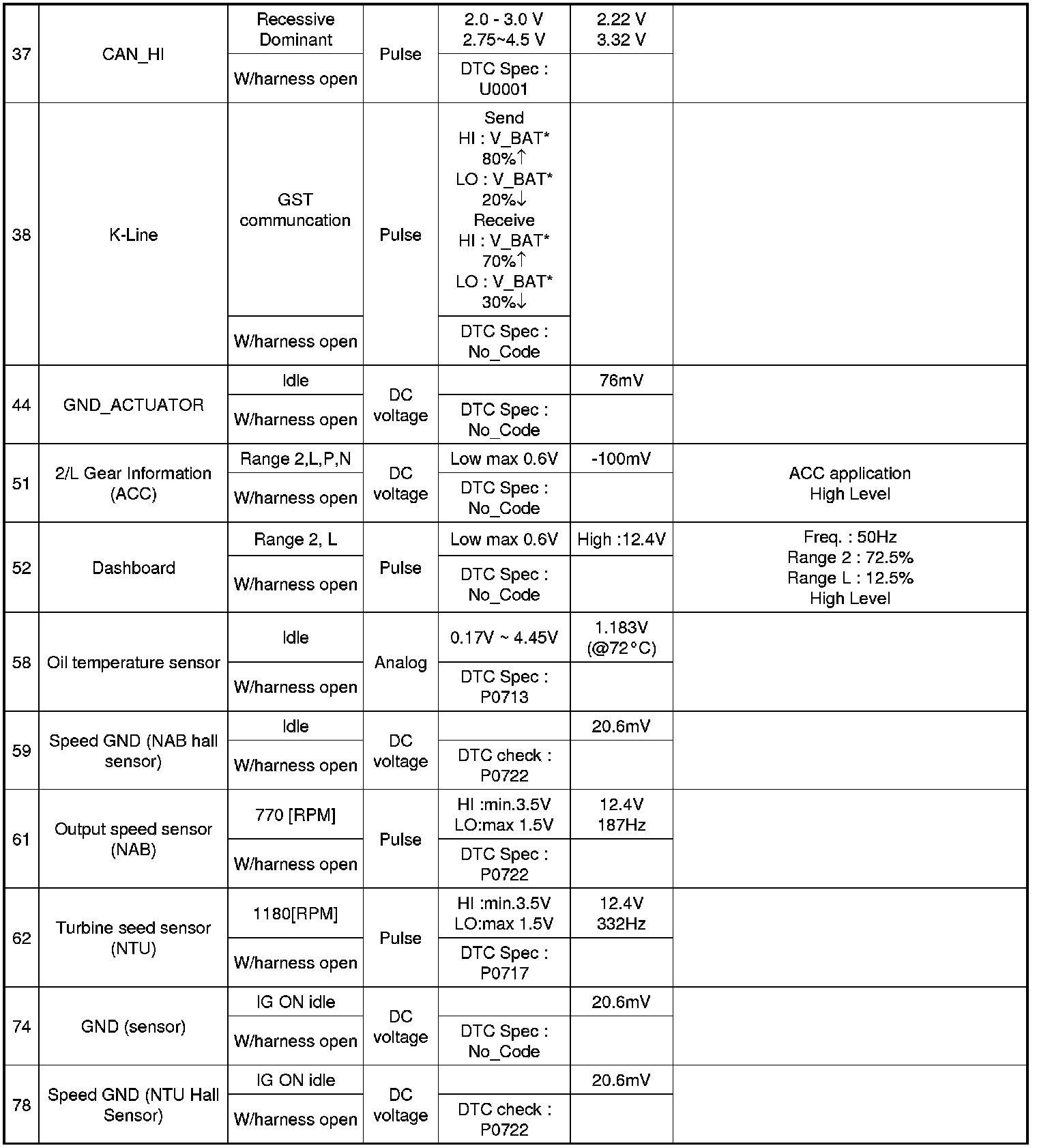

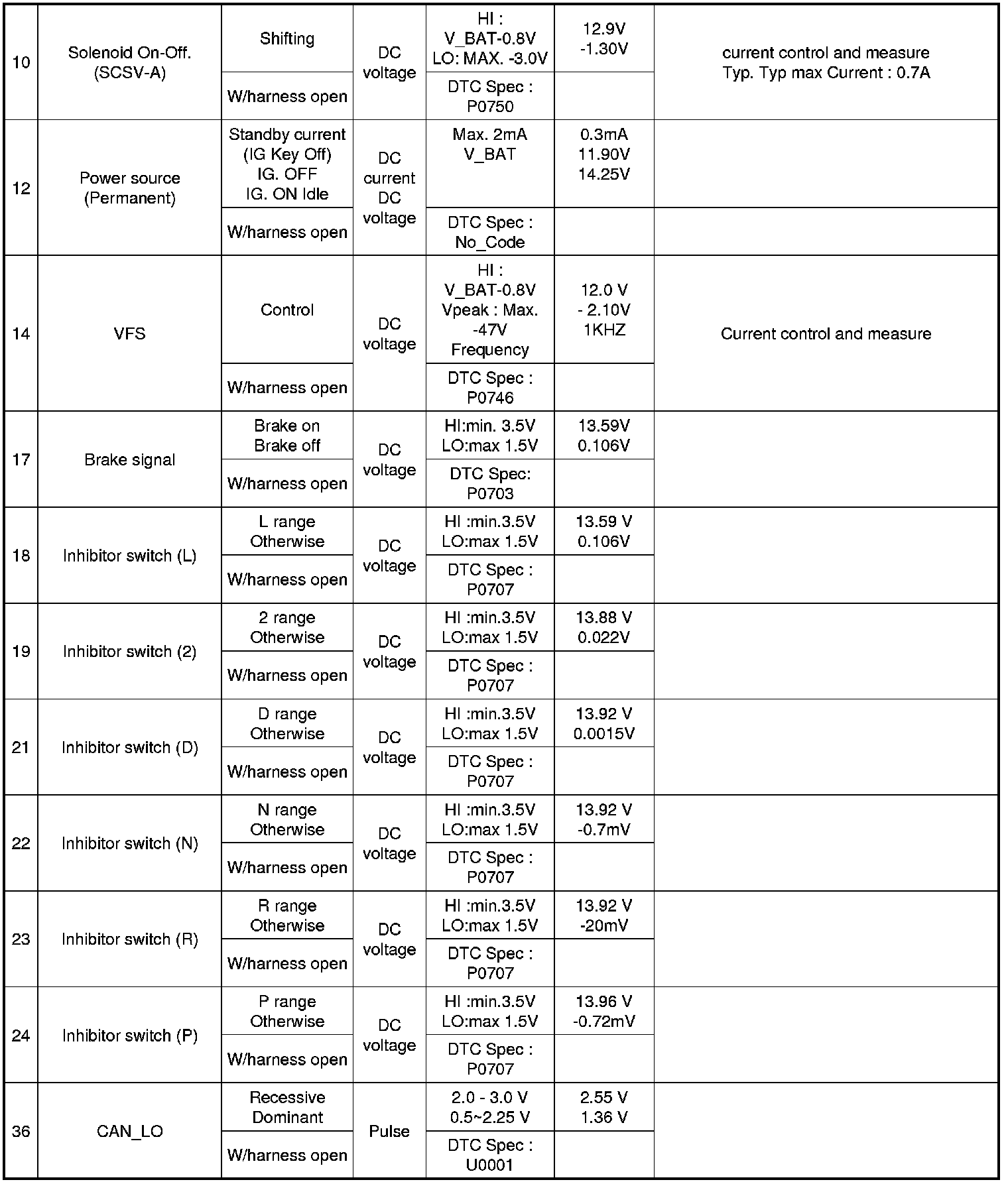

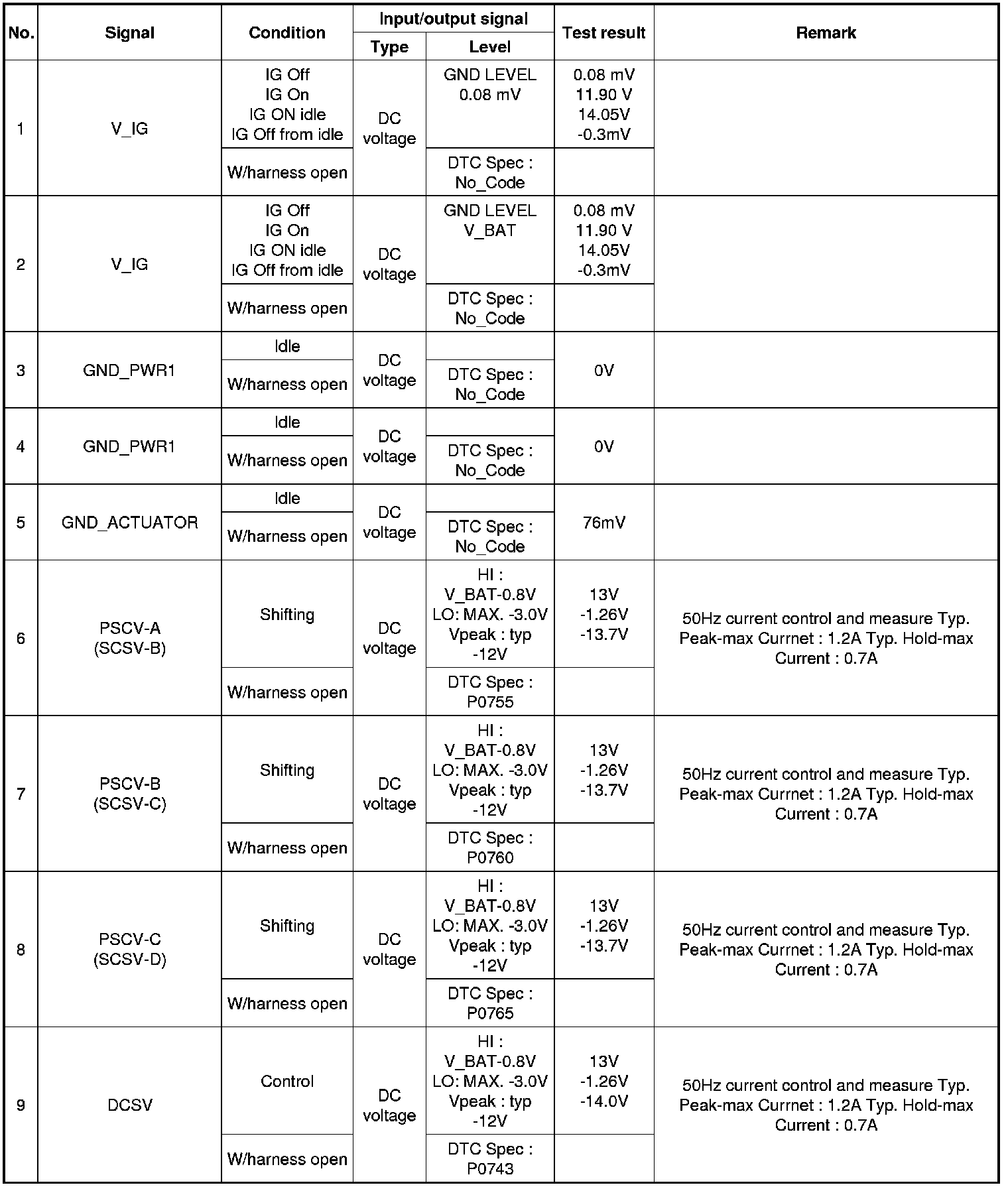

TCM
input/output terminal voltage
GND: TCM GND (3, 4 pin no.)
