Home >> Kia >> 2009 >> Spectra L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Element In Use In Each Gear

Element In Use In Each Gear

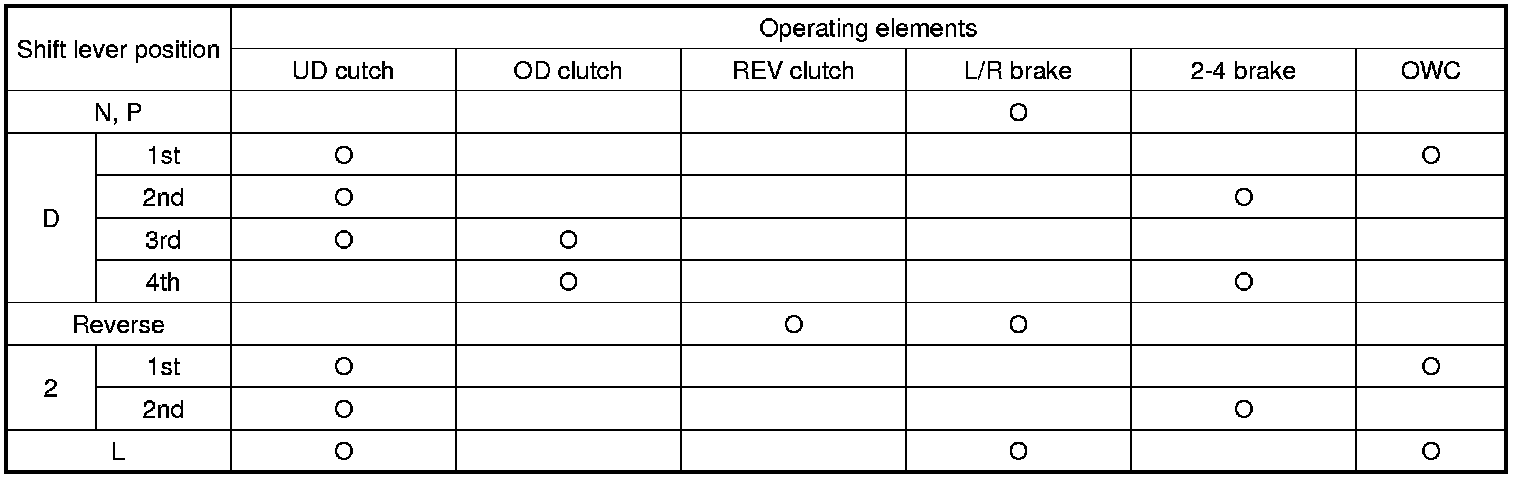

ELEMENTS IN USE IN EACH GEAR
