Home >> Kia >> 2009 >> Spectra L4-2.0L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Specifications >> Specifications

Suspension: Specifications: Specifications





SPECIFICATIONS

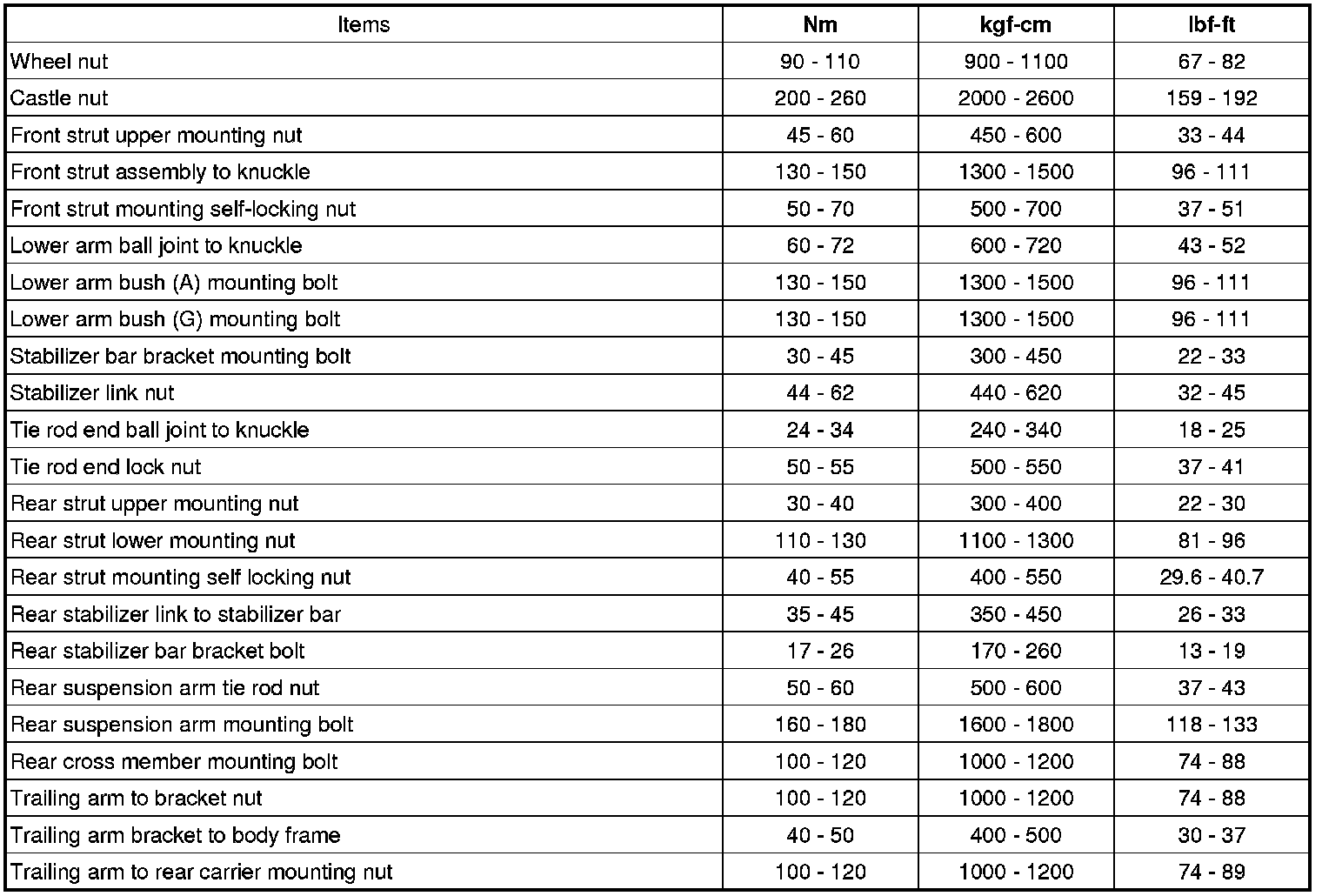

TIGHTENING TORQUE






CAUTION:
Replace the self-locking nuts with new ones after removal.

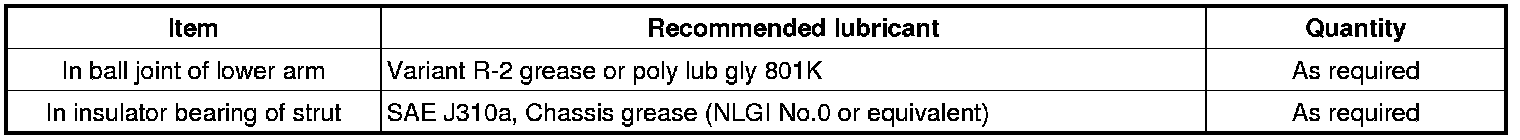

LUBRICANTS
