Repair Procedures

REMOVAL

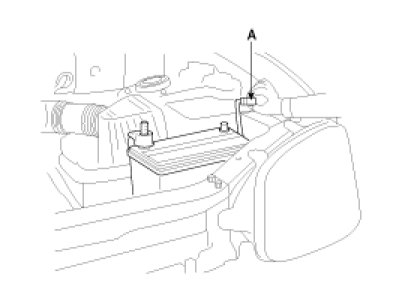

1. Disconnect the negative (-) terminal(A) from the battery.




2. Remove the bolts (A) in the illustration, and then remove the driver's airbag module(B).

NOTE:
For the vehicles not equipped with SRS airbag, remove the horn cover assembly.




3. Remove the connector(A) the steering wheel lock nut(B).




4. After aligning the marks on the steering shaft and wheel(A), remove the steering wheel using the special tool (09561-11002).

NOTE:
Do not hammer on the steering wheel to remove it: it may damage the steering column.

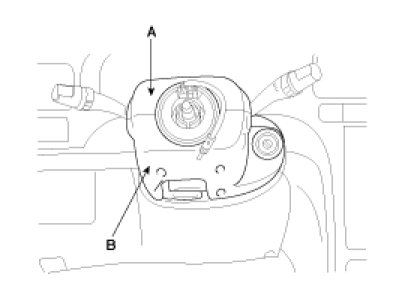

5. Remove the steering column upper(A) and lower shrouds(B).

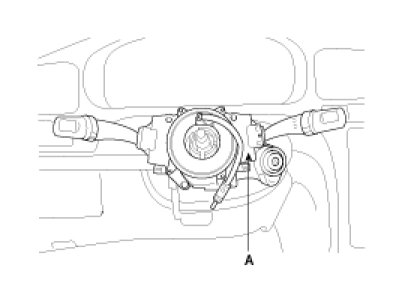

6. Remove the connectors of the multifunction switch(A).




7. After removing three bolts(A) in the illustration, remove the multifunction switch assembly(B).

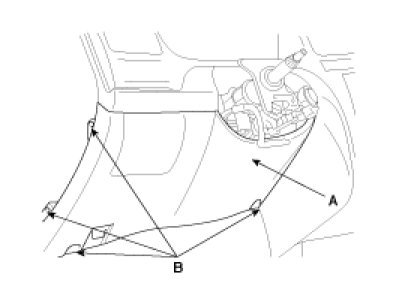

8. Remove the lower crash pad(A) after loosening the four bolts(B) in the illustration.

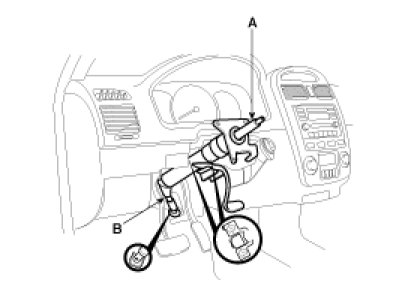

9. Remove the five bolts connecting the steering column shaft(A) and the universal joint(B) as shown in the illustration.

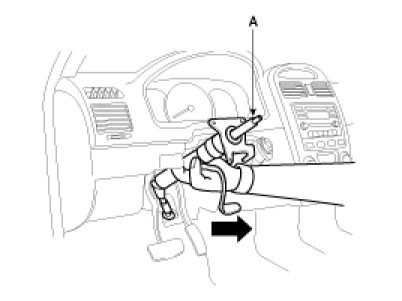

10. After removing the mounting bolts and nuts, remove the steering column and shaft assembly(A).






INSTALLATION

1. Installation is the reverse of removal.
