Home >> Kia >> 2009 >> Spectra L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Shift Linkage, M/T

Shift Linkage, M/T

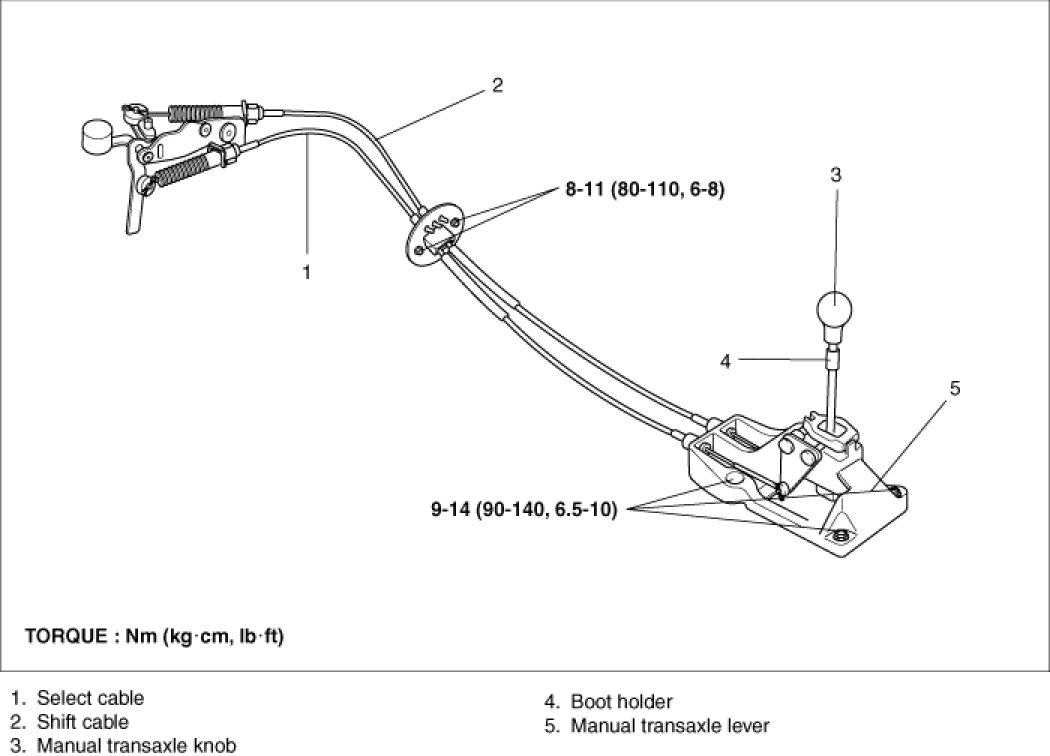

COMPONENTS(1)

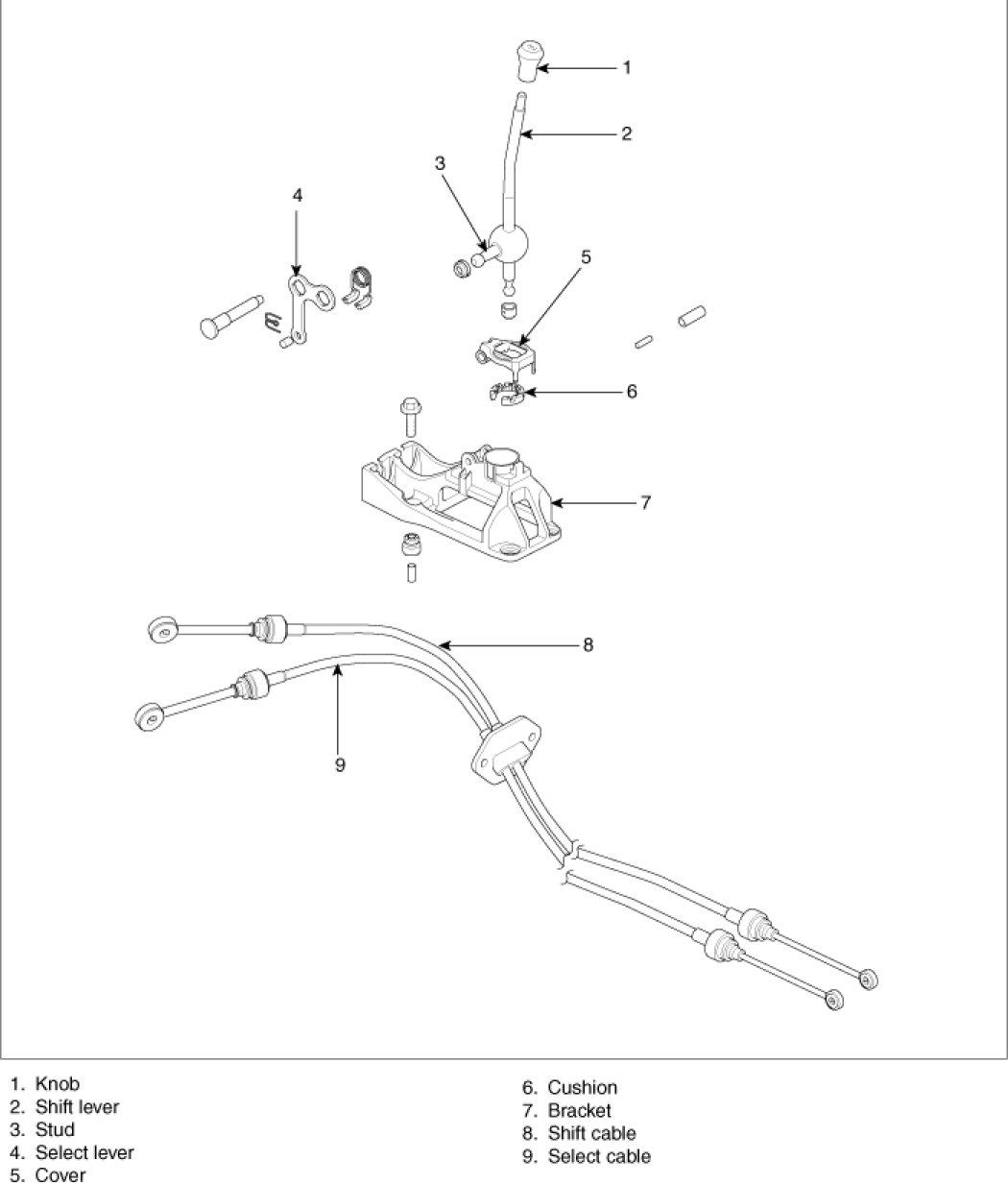

COMPONENTS(2)
