Spectra L4-2.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>

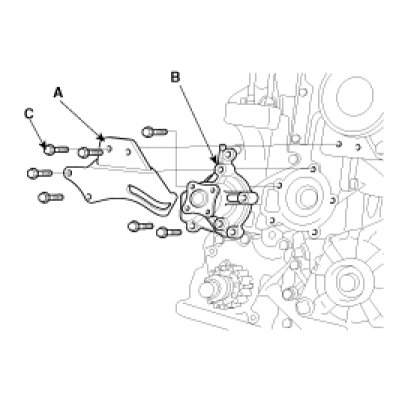

Water Pump
Water Pump
Water Pump
Tightening torque
11.8 - 14.7 Nm (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)
