Specifications (A4CF2)

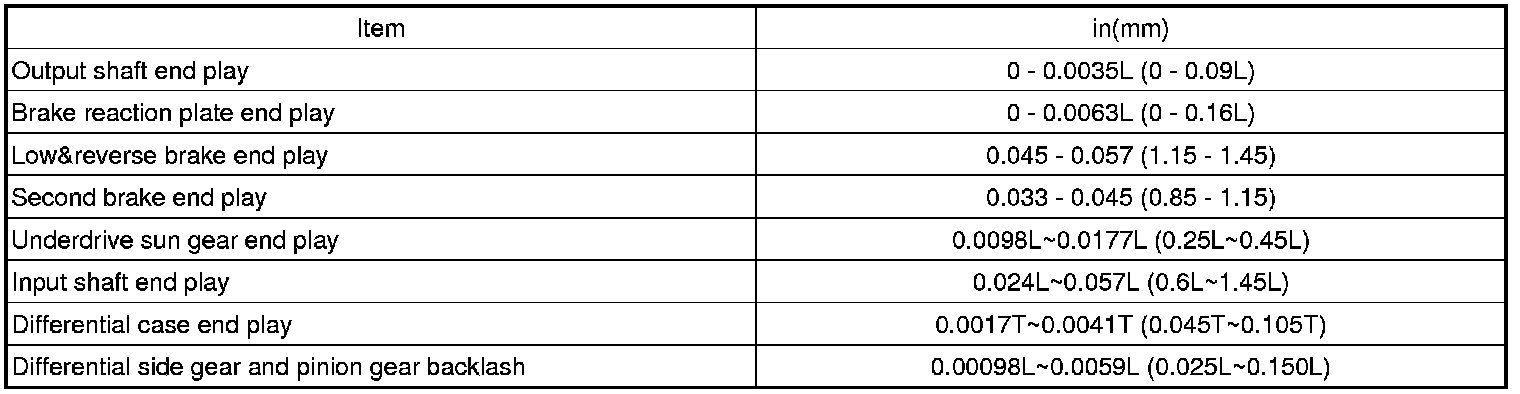

Service standard





T: Indicate tightening of -(minus) direction of end play
L: Indicate loosening of +(plus) direction of end play

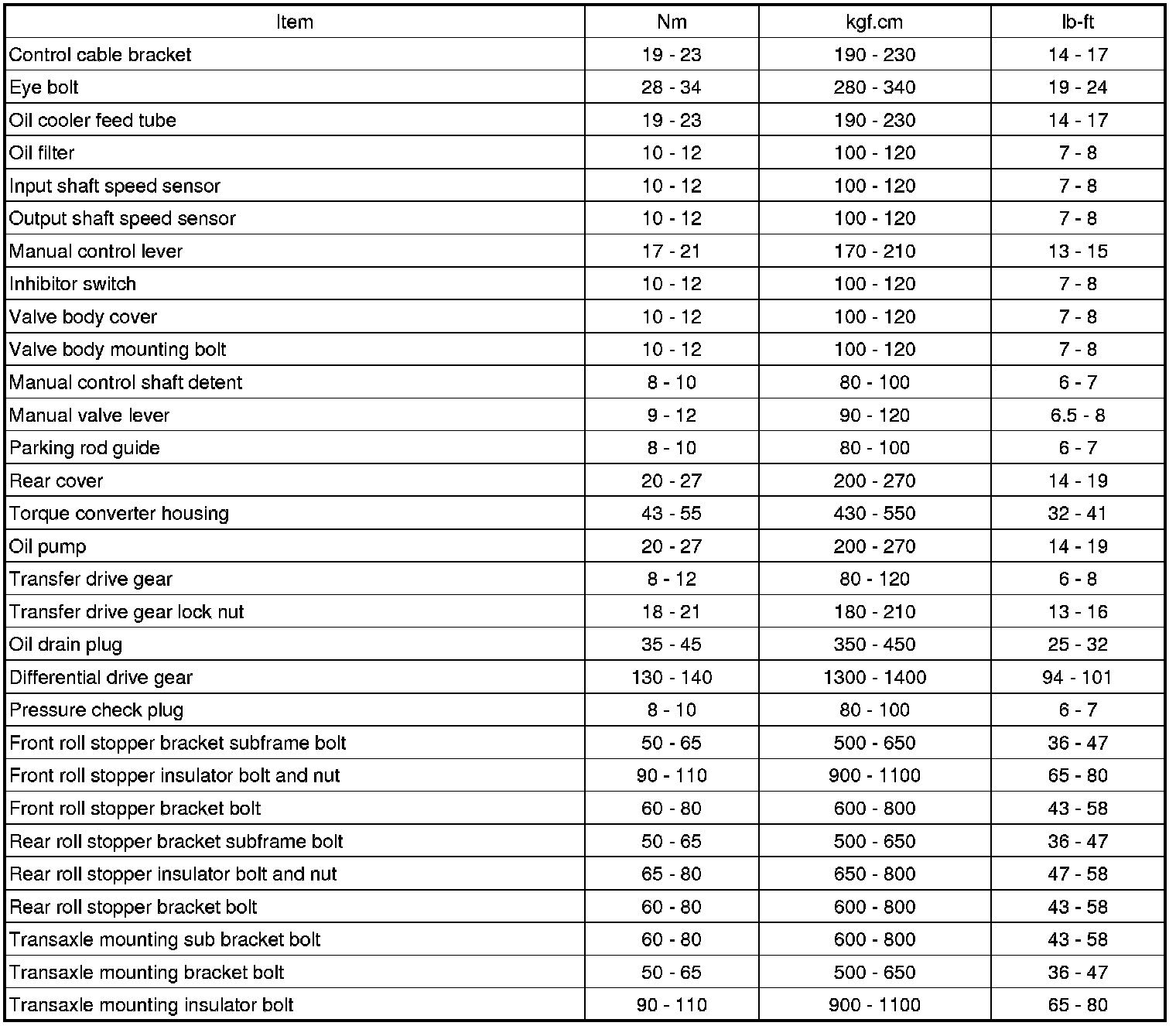

Tightening torque
