Fog/Driving Lamp Relay: Testing and Inspection

INSPECTION

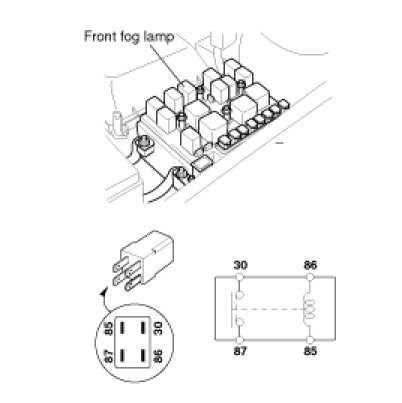

FRONT FOG LAMP RELAY
Check for continuity between the terminals.
1. Remove the front fog lamp relay from the relay box (engine compartment).
2. There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
3. There should be no continuity between the No.30 and No.87 terminals when power is disconnected.
