Ignition Coil: Service and Repair

REPLACEMENT

IGNITION COIL
1. Remove the engine cover.
2. Disconnect the spark plug cables and the ignition coil connector.

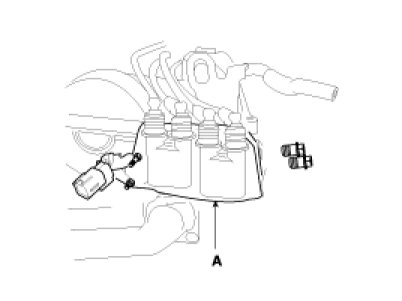

3. Remove the ignition coil (A).




4. Installation is the reverse of removal.
