Fuel System - Specifications





SPECIFICATIONS

OUTPUT ACTUATORS

Fuel Injector
> Type: Electromagnetic type
> Number: 4

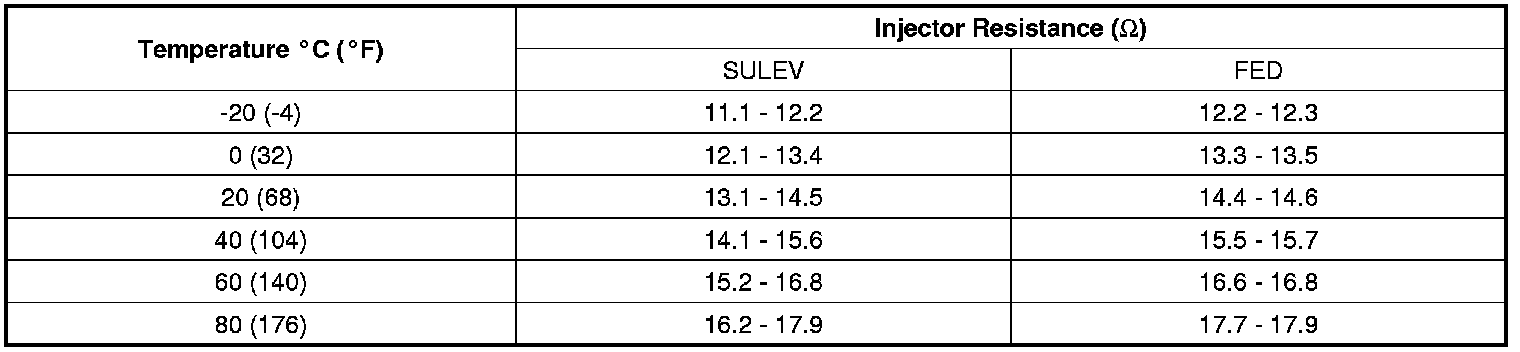

> Specification
