License Plate Lamp: Service and Repair
REPLACEMENT
1.
Disconnect the negative (-) battery terminal.
2.

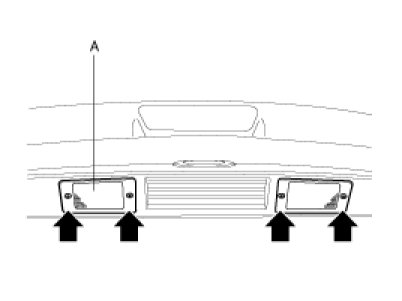

Remove the
license plate lamp
(A) after removing 2 screws.
3.
Replace the bulb.
4.
Installation is the reverse of removal.
