Horn: Service and Repair











REMOVAL

1. Remove the upper tray after opening the hood .

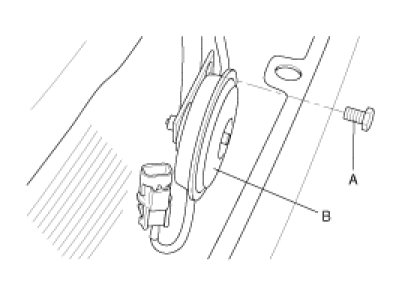

2. Remove the bolt (A) and disconnect the horn connector (B), then remove the horn.




3. Installation is the reverse of removal.
