Indicators and Gauges

INSPECTION

SPEEDOMETER




1. adjust the pressure of the tires to the specified level.
2. Drive the vehicle onto a speedometer tester. Use wheel chocks (A) as appropriate.

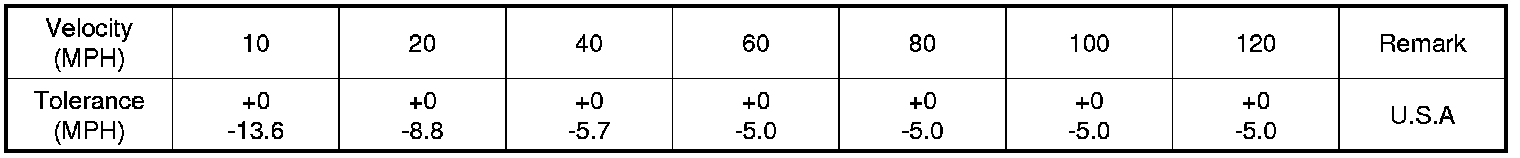

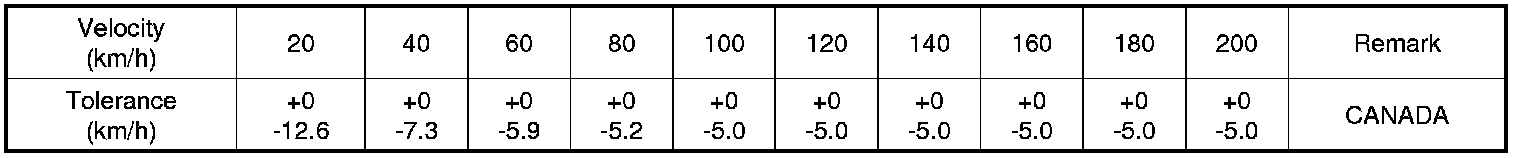

3. Check if the speedometer indicator range is within the standard values.

CAUTION:
Do not operate the clutch suddenly or increase/ decrease speed rapidly while testing.

NOTE:
Tire wear and tire over or under inflation will increase the indication error.
