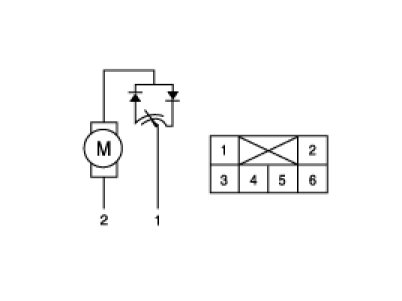

Intake Actuator

INSPECTION

1. Verify that the fresh and recirculation actuator operates to the fresh position when connecting 12V to the terminal 1 and grounding terminal 2.
2. Verify that the fresh and recirculation actuator operates to the recirculation position when connecting in the reverse.
