Restraint (Airbag Control) - Supplemental Restraint System Control Module (SRSCM)

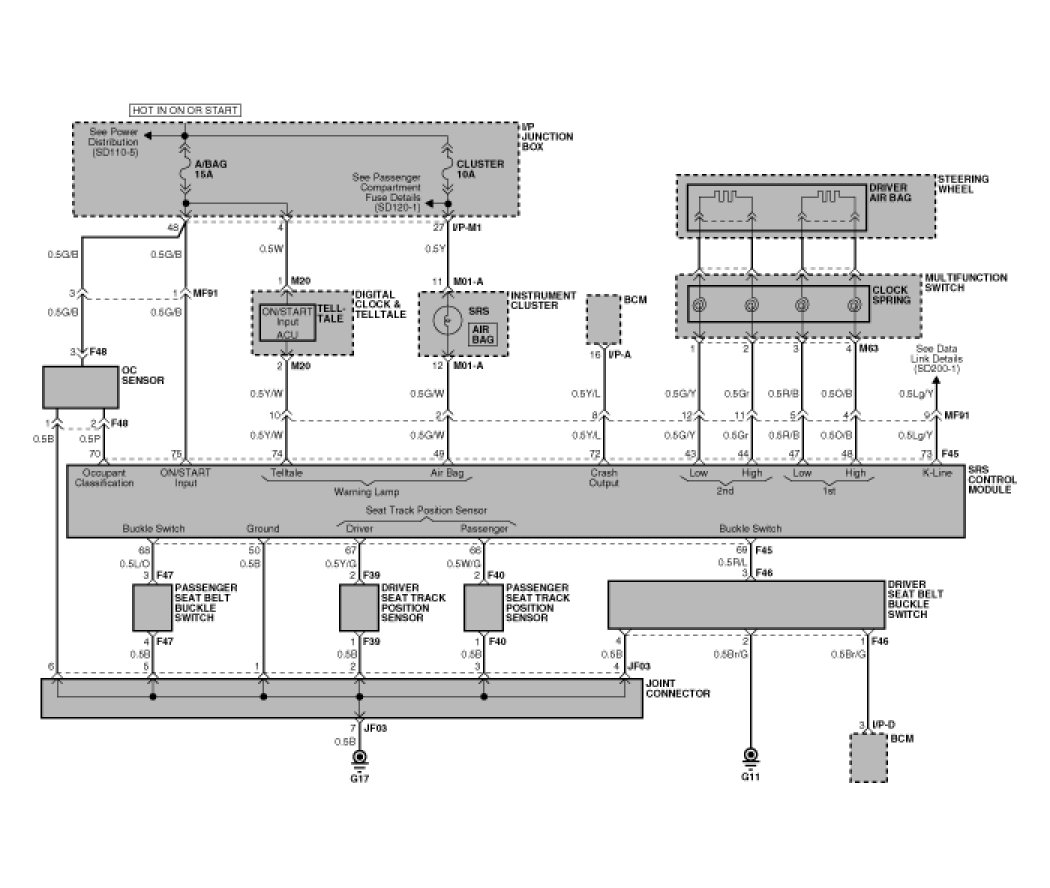

CIRCUIT DIAGRAM (1)

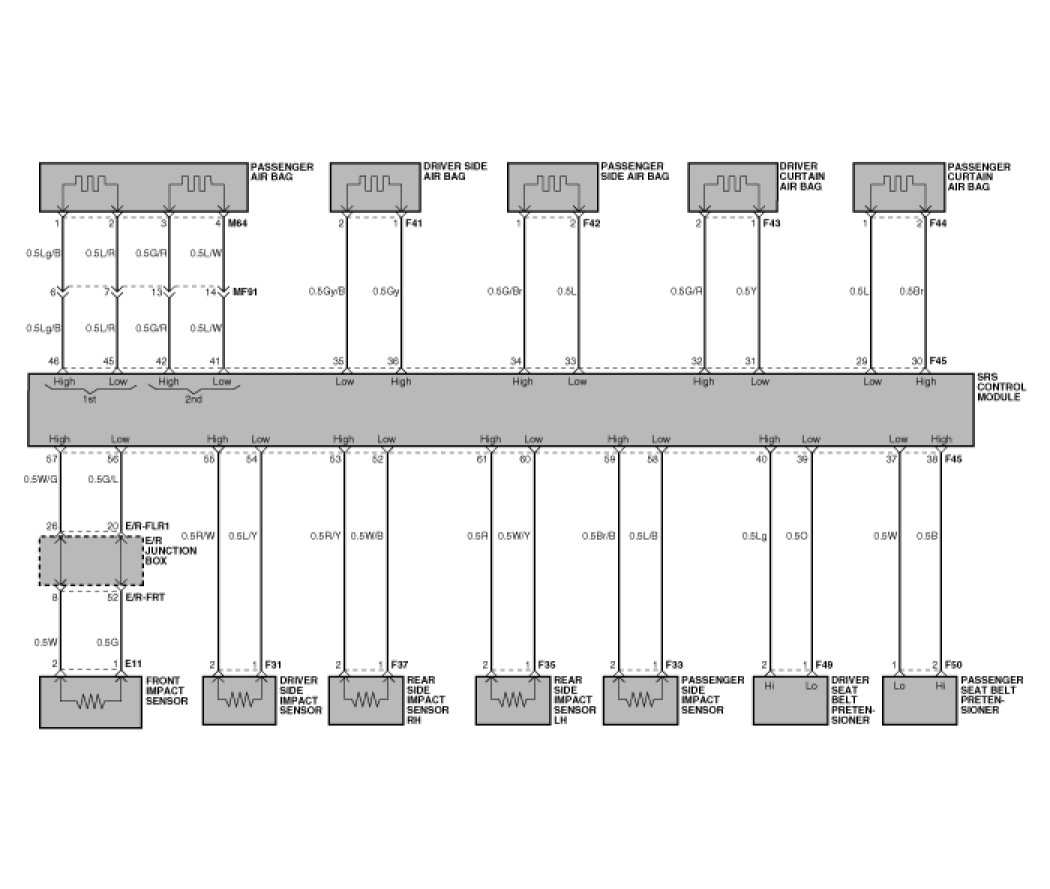

CIRCUIT DIAGRAM (2)
