Repair Procedures

REMOVAL AND INSTALLATION

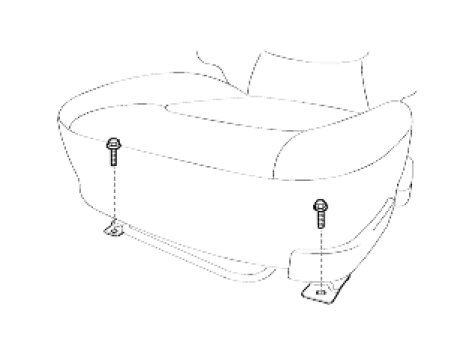

1. Remove seat front mounting bolts(2).

Tightening torque :
40 - 55 Nm (4.0 - 5.5 kg-m, 29 - 40 lb-ft)

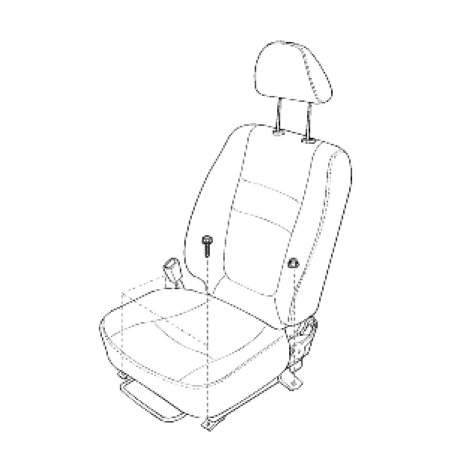

2. Remove seat mounting bracket covers(2).

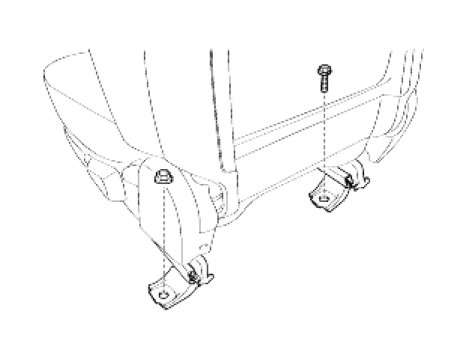

3. Remove seat rear mounting bolt and nut.

Tightening torque :
40 - 55 Nm (4.0 - 5.5 kg-m, 29 - 40 lb-ft)

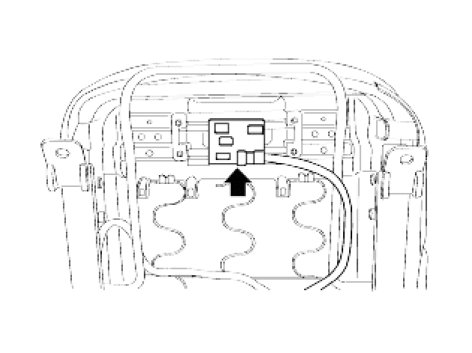

4. Disconnect connector from bottom of seat.




5. Remove seat.




6. Install in reverse order of removal.
