Repair Procedures

REMOVAL AND INSTALLATION

1. To remove the sunroof, first remove the following parts.

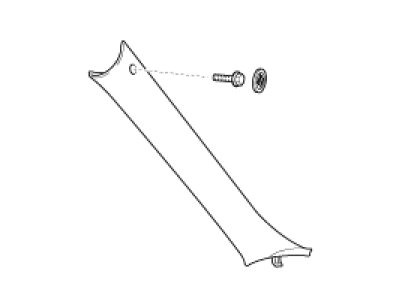

(1) Remove front pillar trims.

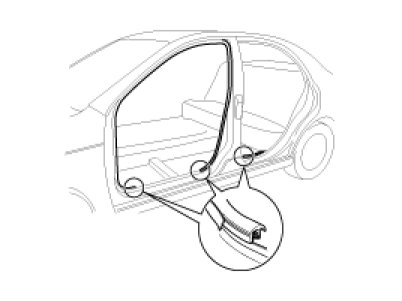

A. Remove body side weatherstrip.




B. Remove pillar blanking cover and bolts.

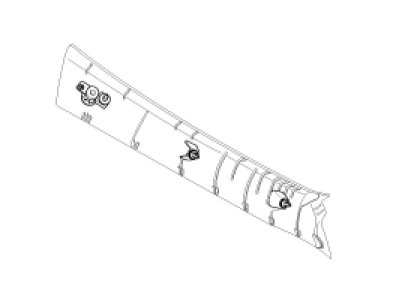

C. Remove trim from front pillar.

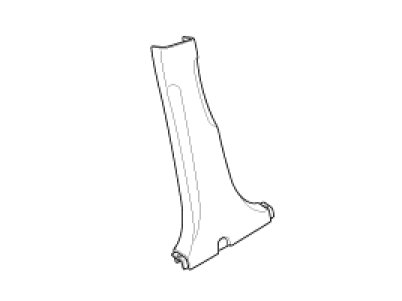

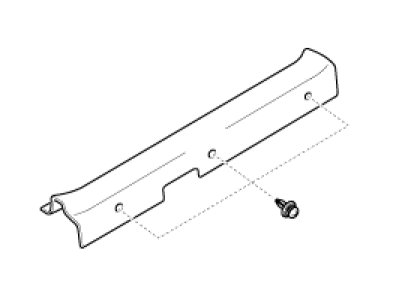

(2) Remove center pillar lower trim.

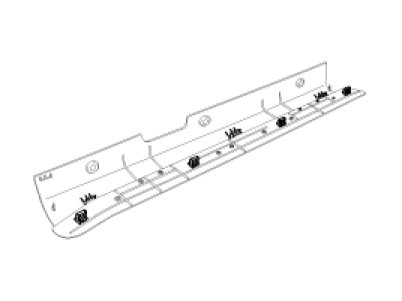

A. Remove front door scuff trim.

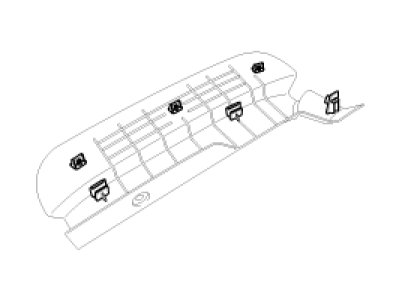

B. Remove rear door scuff trim.

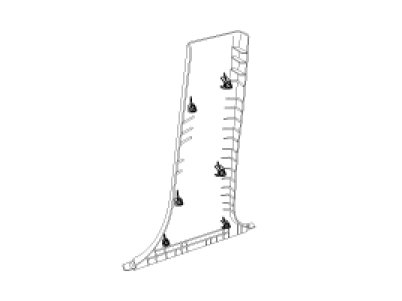

C. Remove center pillar lower trim.

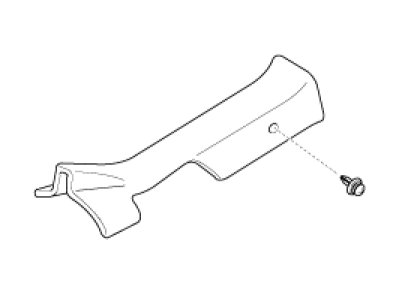

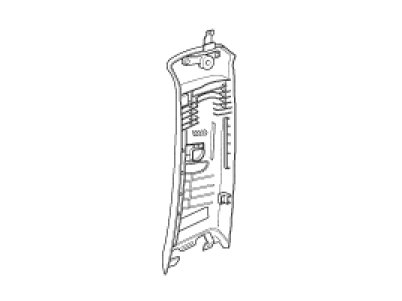

(3) Remove center pillar upper trim.

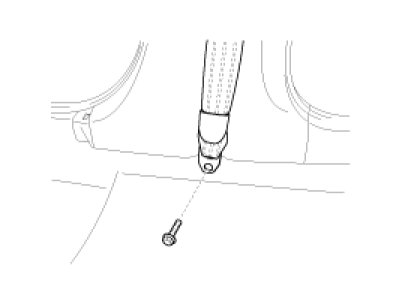

A. Remove front seat belt lower anchor bolt.

Tightening torque :
40 - 55 Nm (4.0 - 5.5 kg-m, 29 - 40 lb-ft)





B. Remove pillar blanking cover.

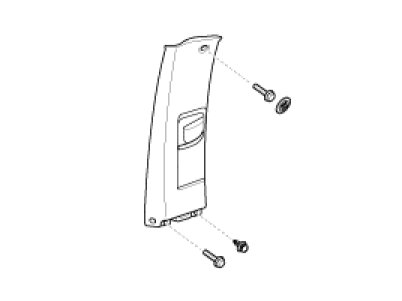

C. Remove bolts(2) and fastener.




D. Remove trim from center pillar.




E. Remove seat belt from trim.

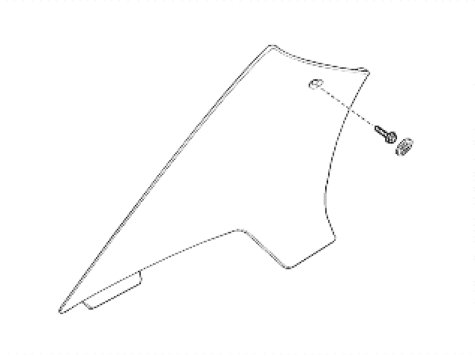

(4) Remove rear pillar trim.
A. Remove pillar blanking cover and bolt.

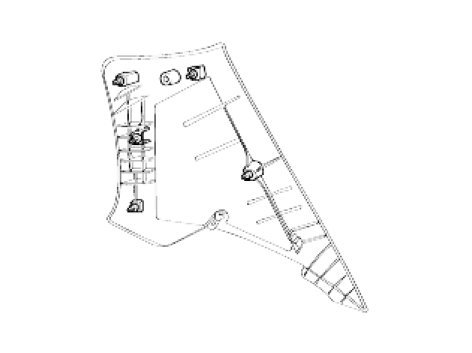

B. Remove trim from rear pillar.

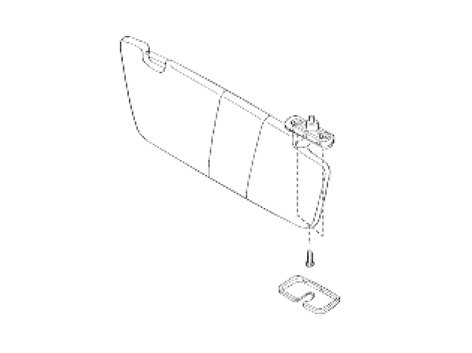

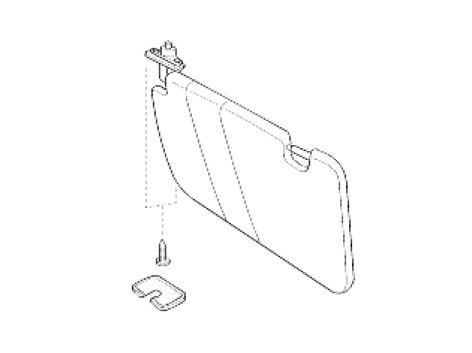

(5) Remove sunvisor(LH).




A. Remove pivot mounting cover and screws(2).
B. Remove sunvisor retainer screw.
C. Remove sunvisor from headlining.
(6) Remove sunvisor(RH).

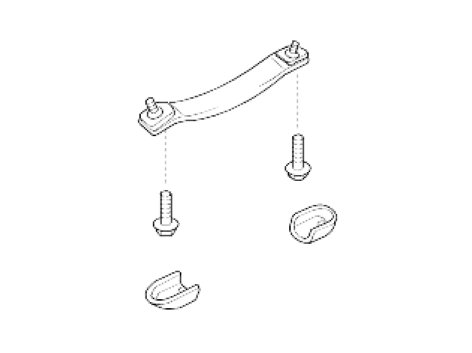

(7) Remove roof assist handle.
A. Remove front assist handle cover and bolts(2).




B. Remove front assist handle.
C. Remove rear assist handles(2).

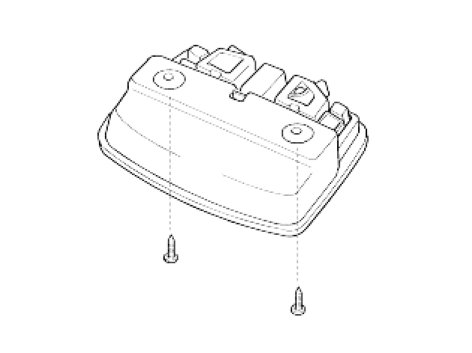

(8) Remove overhead console lamp.
A. Open sunglass case and remove screws(2).




B. Remove lamp from headlining and disconnect the connector.

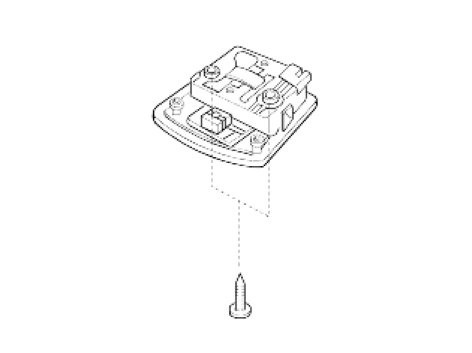

(9) Remove room lamp.
A. Remove cover.
B. Remove screws(2).




C. Remove lamp from headlining and disconnect the connector.

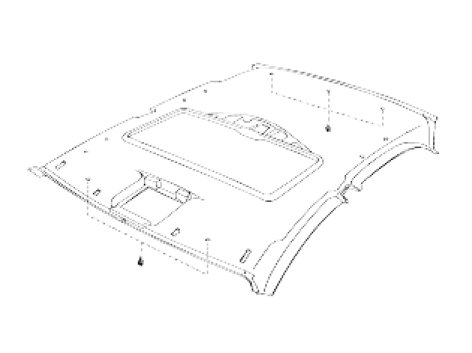

(10) Remove headlining assembly.
A. Remove fasteners(5).




B. Remove headlining from vehicle.
2. Remove glass panel.
(1) Remove screws(6).

Tightening torque :
2 - 4 Nm (0.2 - 0.4 kg-m, 1 - 3 lb-ft)





3. Remove drain hose.




4. Remove sunroof assembly.

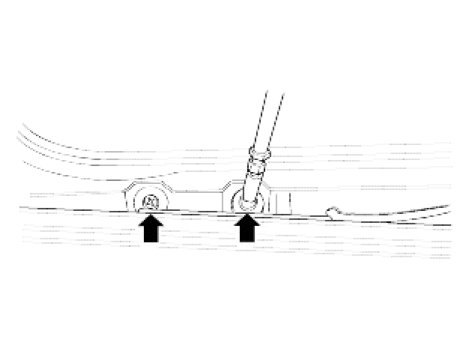

(1) Remove bolts and screws.

Tightening torque :
9 - 13 Nm (0.9 - 1.3 kg-m, 7 - 9 lb-ft)


NOTE:
When removing the sunroof assembly, carefully pull out sunroof assembly to avoid damage to the other parts.

5. Install in reverse order of removal.
