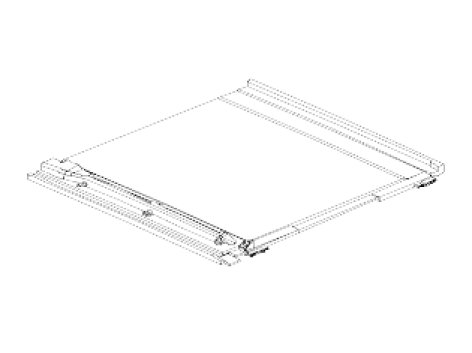

Overhaul

DISASSEMBLY

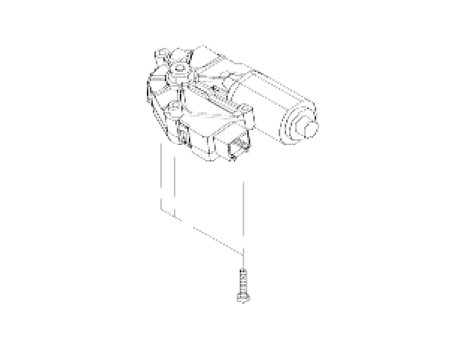

1. Remove motor.

NOTE:
When removing the motor, the guide assembly should always be in the fully closed position.

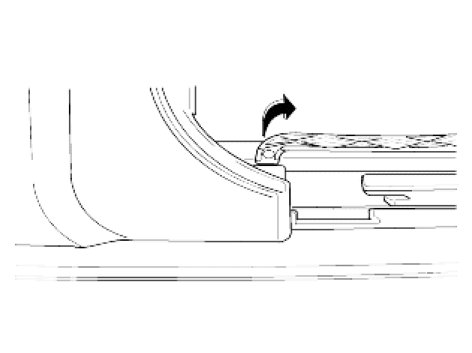

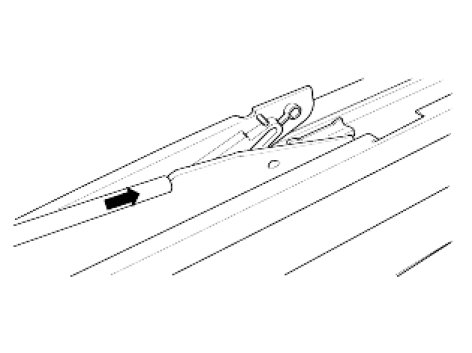

2. Remove drip link.




3. Remove sunshade.




4. Remove guide.

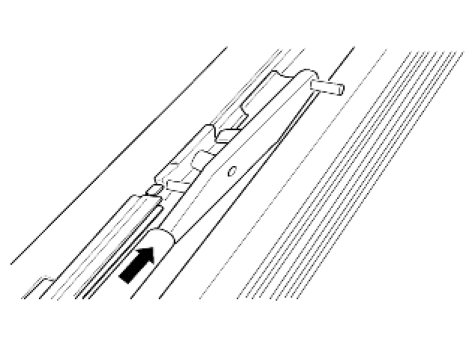

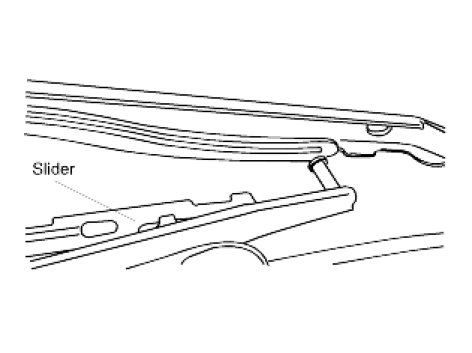

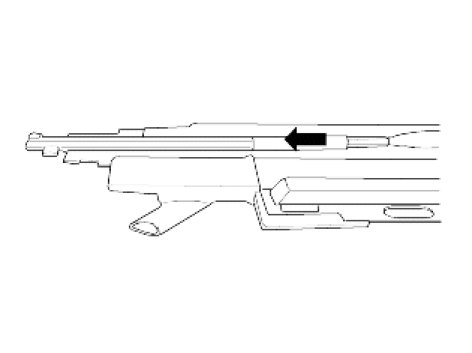

(1) Remove slider.

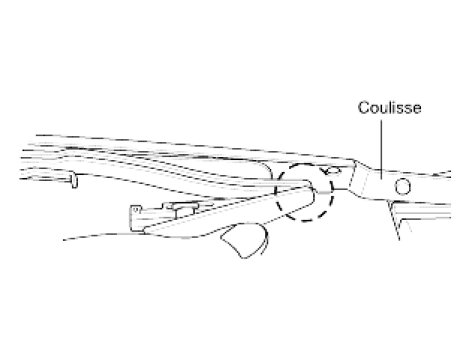

(2) Remove coulisse and slider.

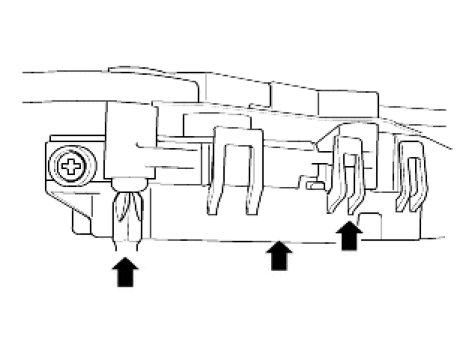

5. Remove deflector.






REASSEMBLY

1. Install in reverse order of removal.

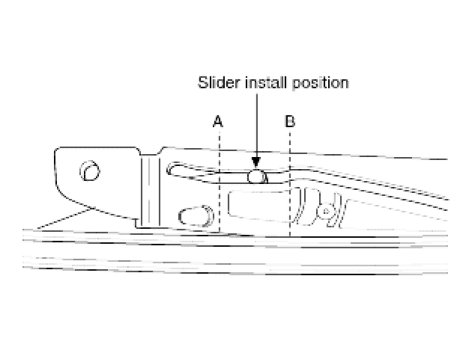

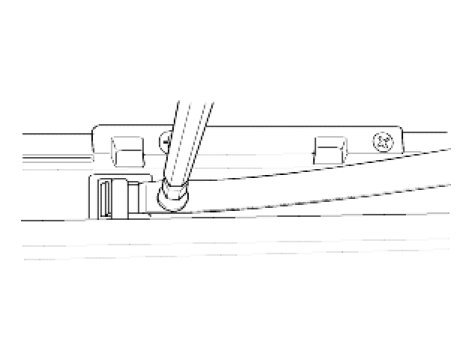

2. Align the position of slider when installing sunroof motor.
: Be sure to align it at the center of "A" and "B".




3. In case that "TILT" doesn't operate when pressing TILT switch after sunroof is closed on vehicle, refer to the following procedures.
(1) Remove sunroof motor.

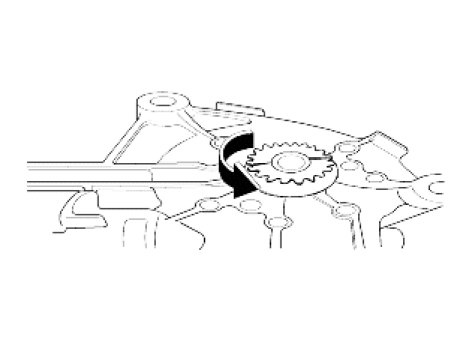

(2) Adjust the motor to the stopping point, pressing close switch.




(3) Install motor after adjusting the position of slide as shown in the figure.




(4) Initialize motor according to the way of initialization.
