Overhaul

DISASSEMBLY

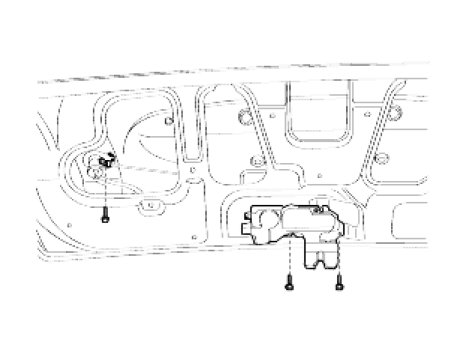

1. Remove trunk lid latch.
(1) Remove trunk lid latch mounting bolts(2).




(2) Disconnect key cylinder rod.
(3) Disconnect actuator connector and wire harness clip.

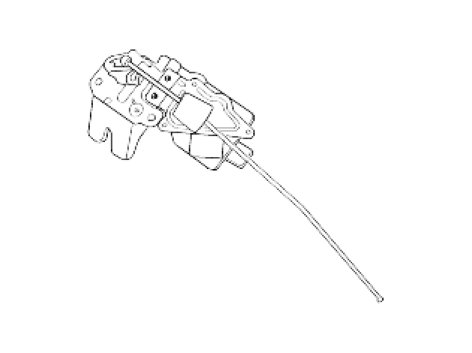

(4) Remove trunk lid latch.

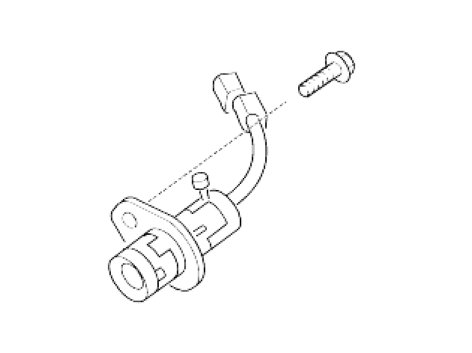

2. Remove trunk lid key cylinder.
(1) Remove key cylinder mounting bolt.




(2) Disconnect key cylinder connector and wire harness clip.
(3) Remove key cylinder.

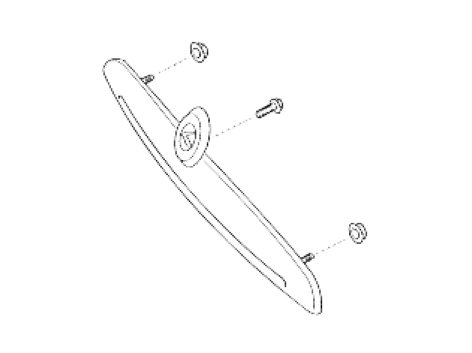

3. Remove license garnish lamp.
(1) Remove license garnish lamp mounting nuts(2) and bolt.




(2) Disconnect license garnish lamp connector and wire harness clip.
(3) Remove license garnish lamp.
4. Install in reverse order of removal.
