Speaker: Service and Repair

REMOVAL

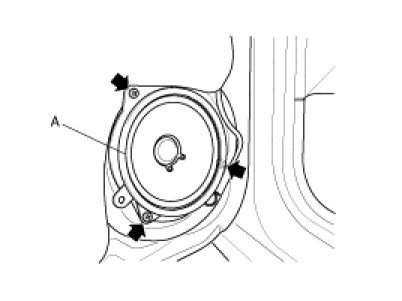

FRONT SPEAKER
1. Remove the front door trim panel .
2. Remove the front speaker (A) after removing 3 screws.




3. Installation is the reverse of removal.

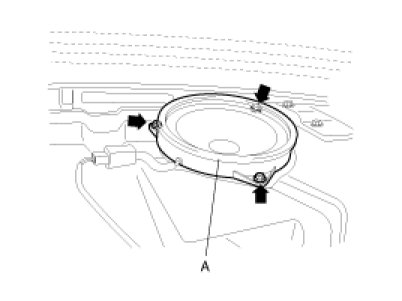

REAR SPEAKER
1. Remove the rear package tray trim .
2. Remove the rear speaker(A) after removing 3 screws.




3. Installation is the reverse of removal.

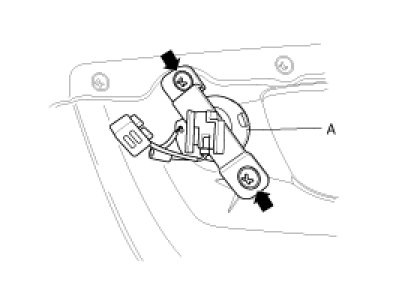

TWEETER SPEAKER
1. Remove the front door trim panel .
2. Remove the tweeter speaker (A) after removing 2 screws.




3. Installation is the reverse of removal.
