Diagnosis of Immobilizer Faults

DIAGNOSIS OF IMMOBILIZER FAULTS
- Communication between the ECM and the SMARTRA.
- Function of the SMARTRA and the transponder.
- Data (stored in the ECM) related to the immobilizer function.

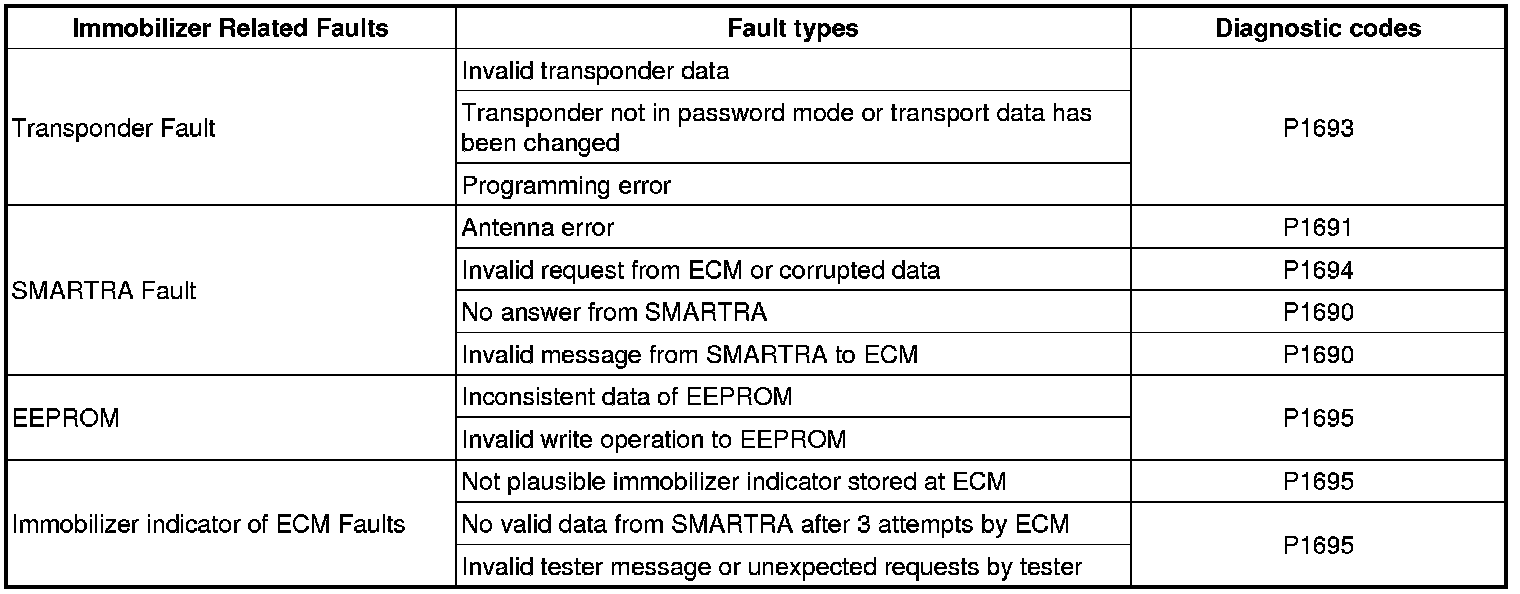

There are four different faults that are assigned to the immobilizer system. Every fault is broken down into four different types (circuit malfunction, circuit range / performance problem, low input, high input). The following table shows the assignment of immobilizer related faults to each type :
