W/Harness Inspection

Pumping Current Circuit Inspection

1. Ignition "OFF"
2. Disconnect HO2S and ECM connectors.

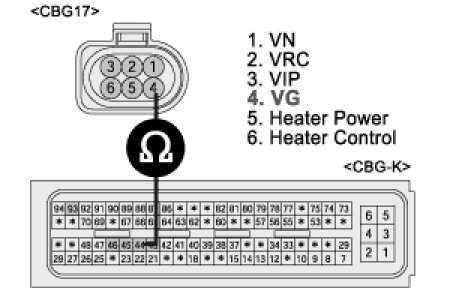

3. Measure resistance between terminals 4 of the sensor harness connector and 44 of the PCM harness connector
A. Specification : Approx. 0 Ohm




4. Is resistance within the specification?
YES
1) Go to "Terminal and Connector Inspection" procedure
NO
1) Repair as necessary and go to "Verification of Vehicle Repair" procedure

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
3. Has a problem been found?
YES
1) Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
1) Go to "Component Inspection" procedure
