Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect ISCA valve connector

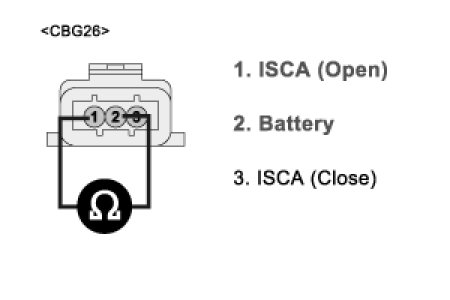

3. Measure resistance between terminals 1 and 2 of the valve connector (Component side)
A. Specification









4. Is resistance within the specification?
YES
1) Go to next step "W/Harness Inspection" procedure.
NO
1) Check ISCA for contamination, deterioration or damage. Substitute with a known-good ISCA and check for proper operation. If the problem is corrected, replace ISCA and then go to "Verification of Vehicle Repair" procedure
