Check Torque Converter Clutch Solenoid Valve
1. Connect scantool to data link connector (DLC)
2. Ignition "ON" & Engine "OFF".
3. Select A/T Solenoid valve Actuator test and Operate Actuator test.
4. Can you hear operating sound for using TCC SOLENOID VALVE Actuator Testing Function?
YES
1) Go to "CHECK OIL PRESSURE" as below.
NO
1) Replace "TCC SOLENOID VALVE" as necessary and Go to "Verification of Vehicle Repair" procedure
Check Oil Pressure

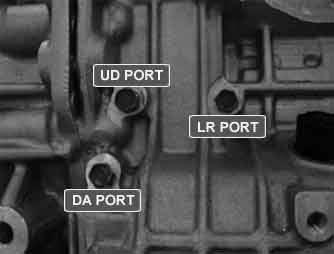

1. Connect Oil pressure gauge to "DA" port.
2. Engine "ON".
3. After connecting Scantool and monitor the "TCC SOLENOID VALVE DUTY" parameter on the Scantool data list.
4. Operate vehicle with 3rd or 4tf gear and operate the "TCC SOLENOID VALVE DUTY" more than 35%.
A. Specification : Above 2.0-4.6 kg/cm2 (Engine Speed : 2500 RPM, DCC sol Duty : 50%)
5. Is oil pressure value within specifications?
YES
1) Repair TORQUE CONVERTER CLUTCH (REPLACE Torque Converter) as necessary and Go to "Verification Vehicle Repair" procedure.
NO
1) Replace A/T ass'y (possible to BODY CONTROL VALVE faulty) as necessary and Go to "Verification of Vehicle Repair" procedure.
