Component Inspection

Component Inspection

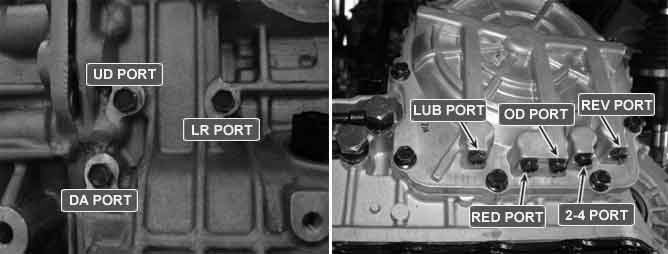

1. Connect Oil pressure gauge to "UD" and "2nd" port.
2. Engine "ON".
3. Drive a car with gear position "4 "

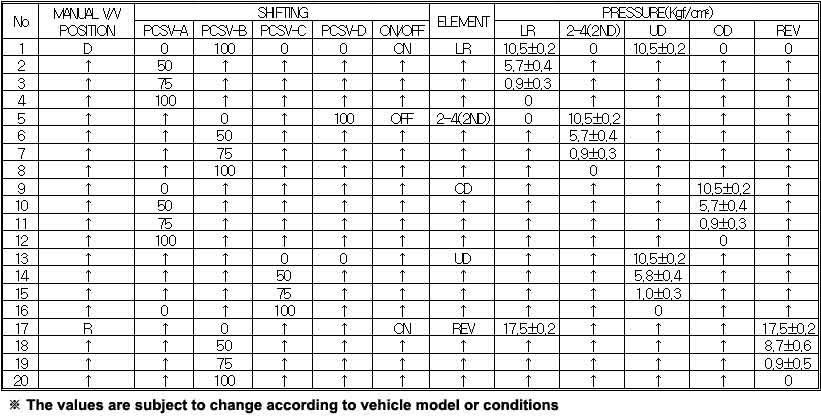

4. Compare it with referance data as below
A. Specification :




5. Is oil pressure value within specifications?
YES
1) Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "Verification Vehicle Repair" procedure.
NO
1) Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "Verification Vehicle Repair" procedure.
