General Information

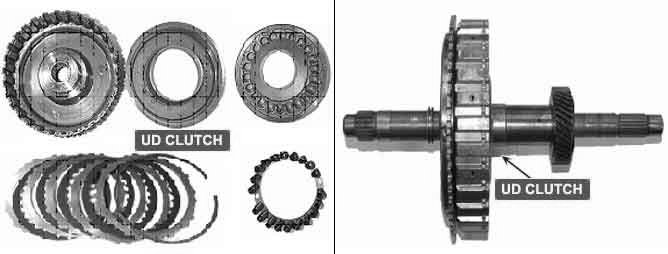

Component Location





General Description

The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the 1st gear ratio, while the transaxle is engaged in the 1st gear. For example, if the output speed is 1000 RPM and the 1st gear ratio is 2.842, then the input speed is 2842 RPM.

DTC Description

This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the 1st gear ratio, while the transaxle is engaged in 1st gear. This malfunction is mainly caused by mechanical troubles such as control valve sticking or solenoid valve malfunctioning rather than an electrical issue.

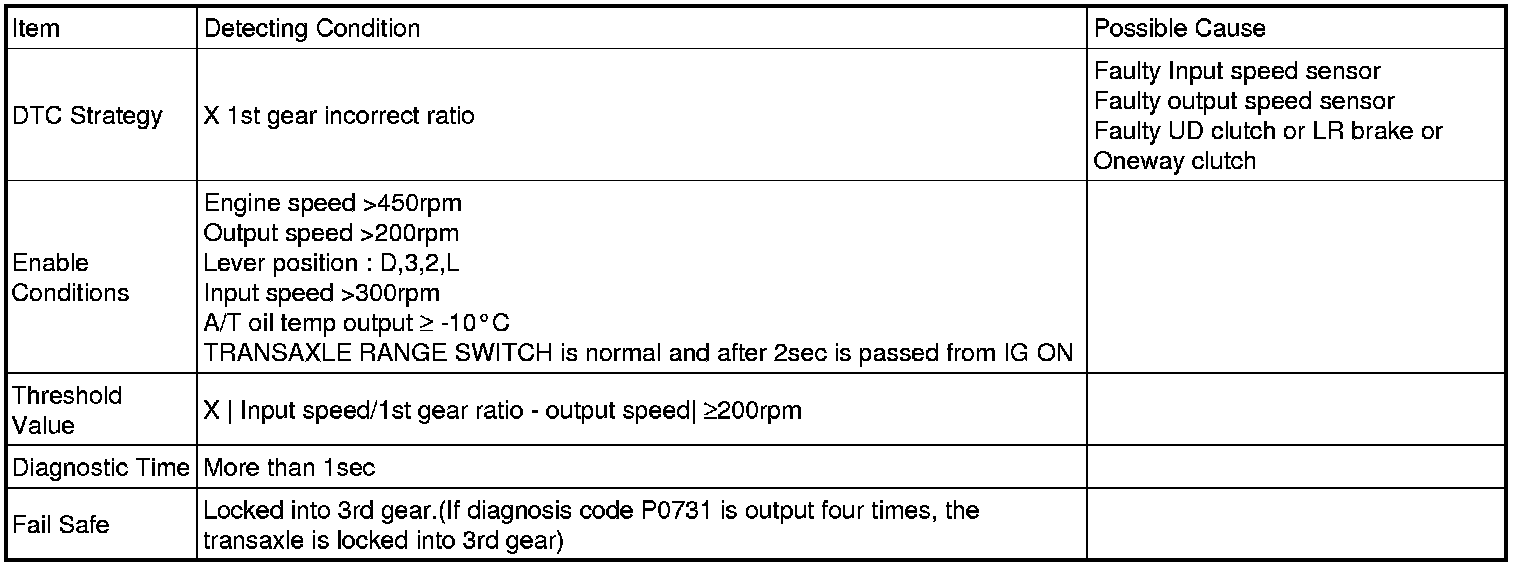

DTC Detecting Condition





Specification

Input shaft & Output shaft speed sensor
Type : Hall sensor
Current consumption : 22 mA (MAX)
Sensor body and sensor connector have been unified as one.

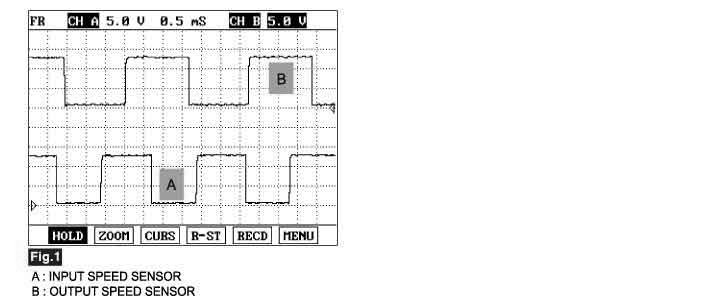

Signal Waveform
