General Information

General Description

The evaporative emission control system prevents hydrocarbon vapors from escaping from the fuel tank into the atmosphere where they could form photochemical smog. Gasoline vapors are collected in the charcoal canister. The Fuel Tank Pressure Sensor (FTPS) is an integral part of the evaporative monitoring system. The ECM monitors the FTPS signal to detect vacuum decay and excess vacuum. The FTPS measures the difference between the air pressure inside the fuel tank and outside air pressure to check the purge control solenoid valve operation and for leak detection in the evaporative emission control system by monitoring pressure and vacuum levels in the fuel tank during the purge control solenoid valve operating cycles.

DTC Description

The ECM monitors pressure in the fuel tank by means of Fuel Tank Pressure Sensor (FTPS) during purge control valve opening or closing phase. This monitoring will determine if pressure sensor signal is stuck. The ECM sets DTC P0451 if pressure variation is smaller than the predetermined threshold.
If same error code is set in the next driving cycle, the ECM illuminates the MIL.

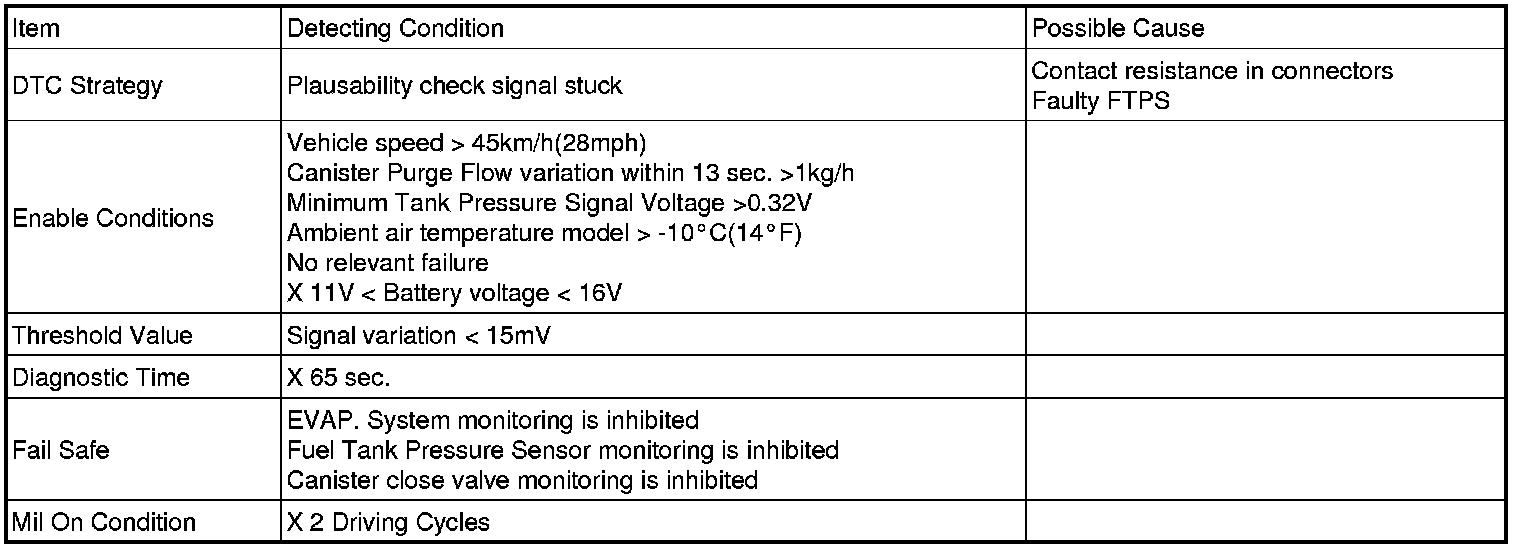

DTC Detecting Condition





Schematic Diagram
