Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect PCSV connector

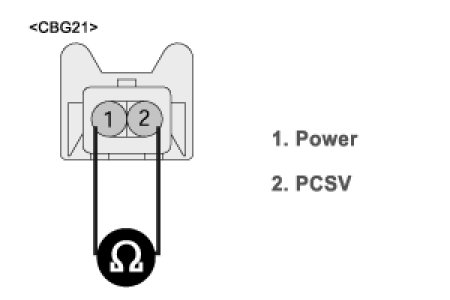

3. Measure resistance between terminals 1 and 2 of the PCSV connector (Component side)









4. Is resistance within the specification?
YES
1) Go to next step "W/Harness Inspection" procedure.
NO
1) Check PCSV for contamination, deterioration or damage. Substitute with a known-good PCSV and check for proper operation. If the problem is corrected, replace PCSV and then go to "Verification of Vehicle Repair" procedure
