General Information

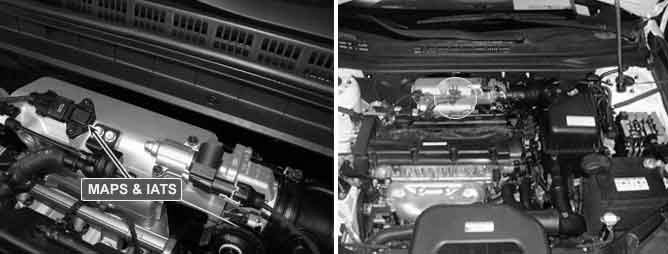

Component Location





General Description

The amount of intake air flow must be inputted to ECM in order to determine the fuel injection quantity. MAPS (Manifold Absolute Pressure) calculates the amount of air indirectly as measuring the pressure inside of intake manifold. This mechanism is also called Speed-Density Type. MAPS transfers analog output signal which is proportional to the change of intake manifold pressure, then, with this signal and RPM, ECM calculates the amount of intake air flow. MAPS is mounted on surge tank to measure the pressure inside of intake manifold, and it consists of a piezo electric element and hybrid IC which amplifies output signal from the element. A piezo electric element is a sort of a diaphragm using piezo electric effect. One side of the diaphragm is surrounded with vacuum chamber while intake pressure is applied to the other side. Thus, signals are outputted by the transformation of diaphragm according to the change of pressure inside of intake manifold

DTC Description

If sensor signal input is lower than 0.25V during 5 sec, ECM sets DTC P0107.

DTC Detecting Condition





Schematic Diagram

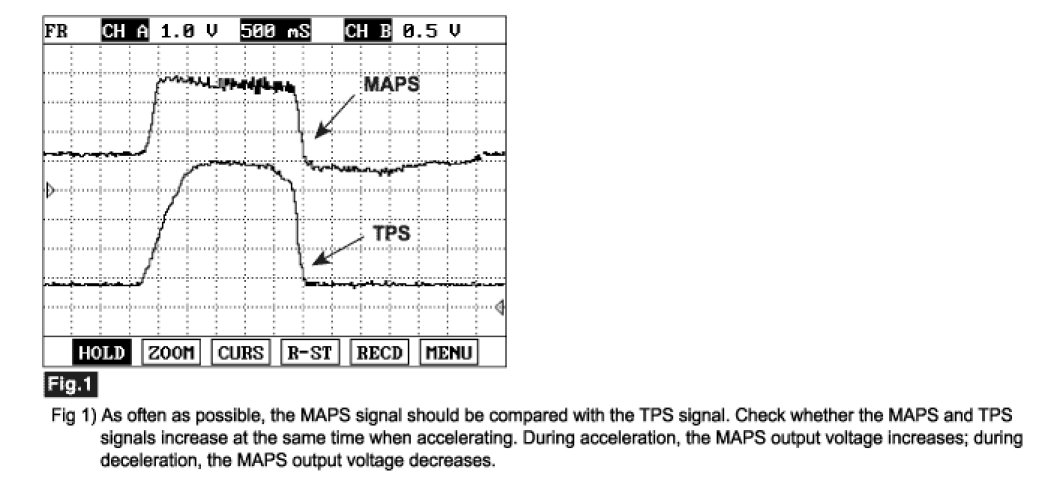

Signal Waveform
