Fuel System - Troubleshooting

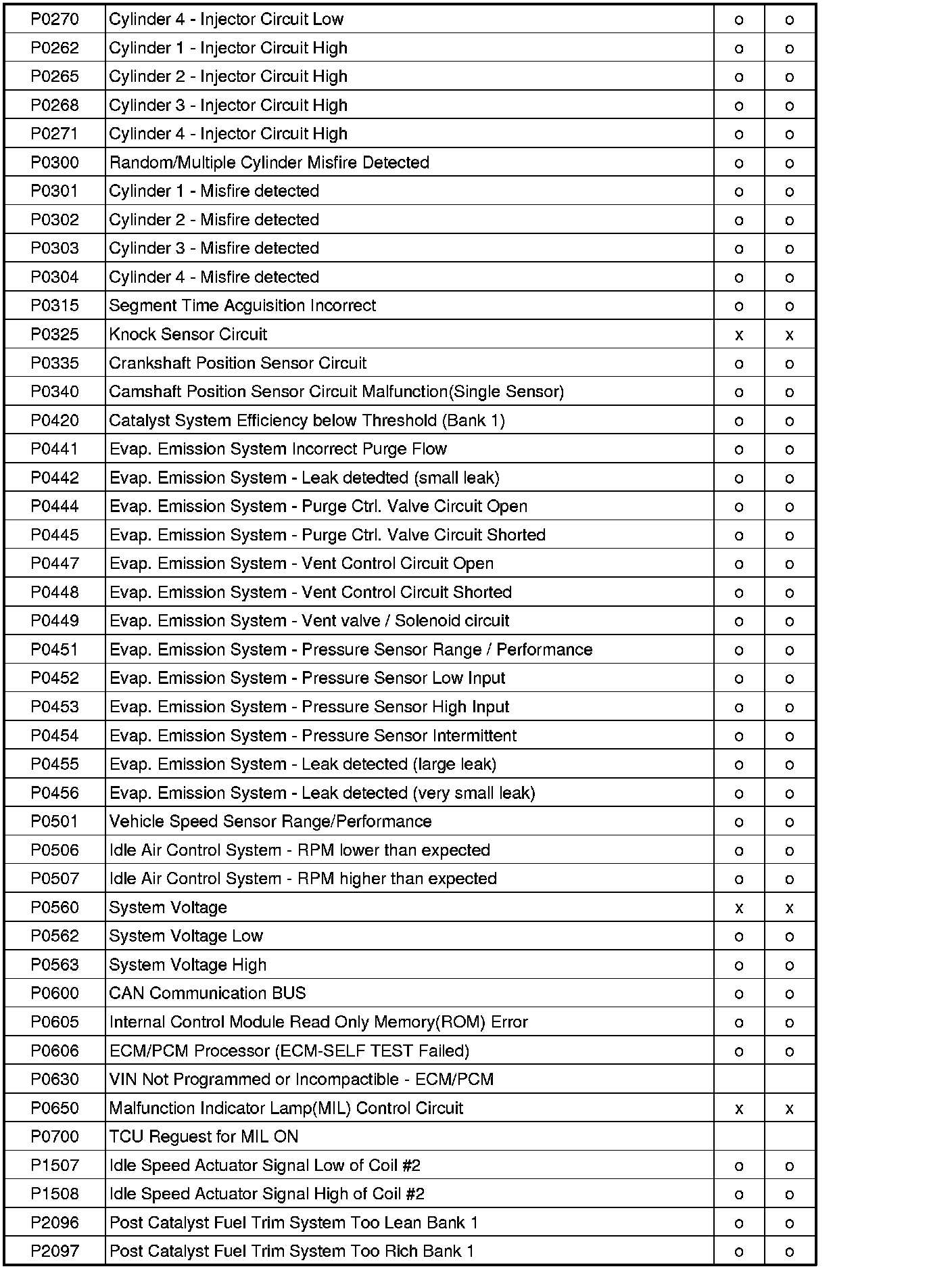

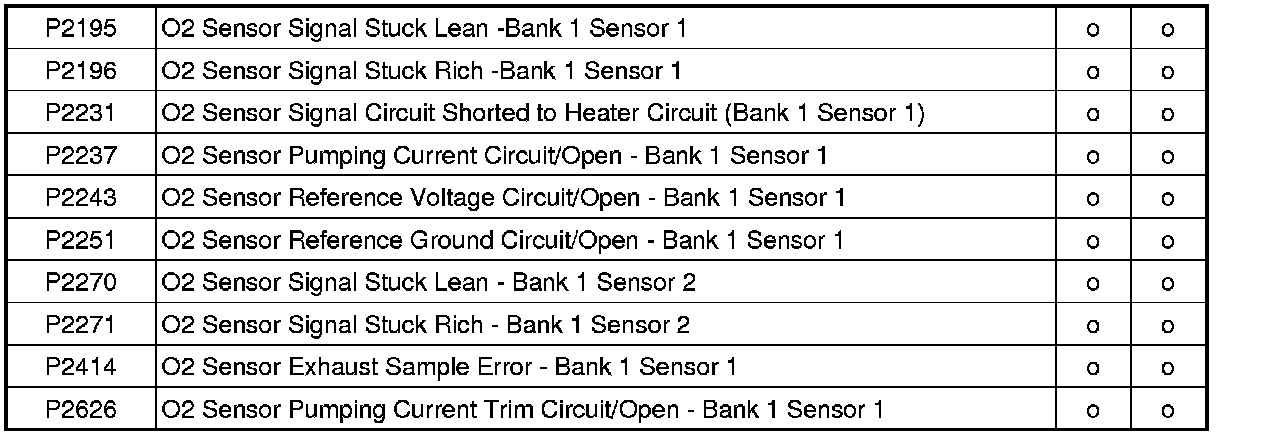

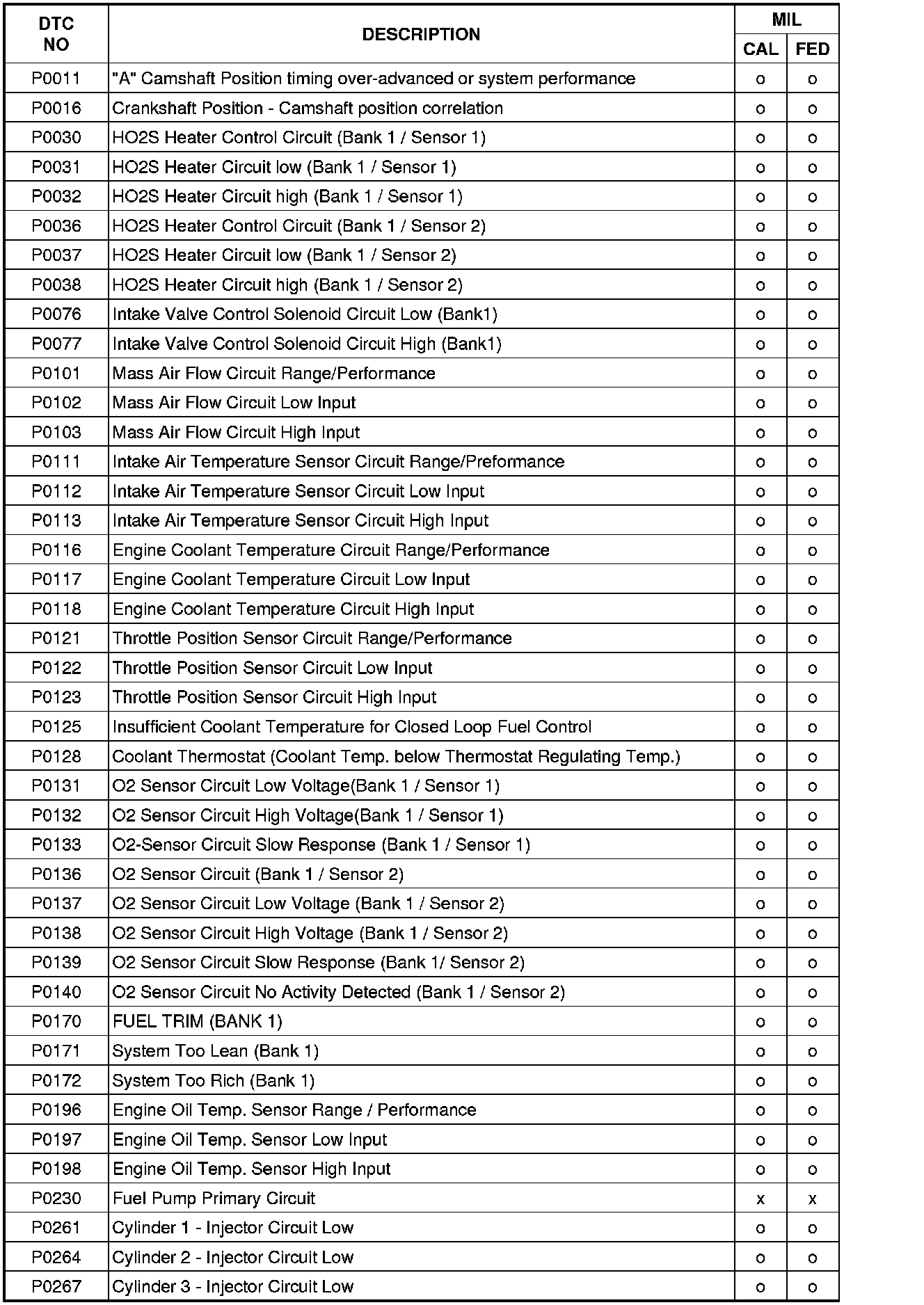

INSPECTION CHART FOR DIAGNOSTIC TROUBLE CODES (DTC)













NOTE:
o : MIL ON & FAULT CODE MEMORY
x : MIL OFF & FAULT CODE MEMORY
