General Information

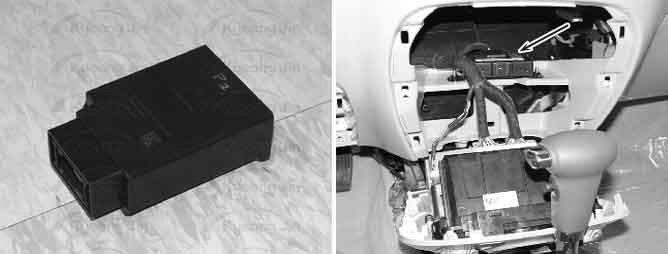

Component Location





General Description

TPMS Receiver is located behind the audio system. The operating battery of TPMS module is supplied from the vehicle battery. Data such as Tire pressure, Tire Temperature, TPMS sensor battery status and TPMS sensor valve ID from TPMS sensors are transmitted to TPMS receiver in the form of RF signal. TPMS module accomplishes Tire Monitoring and Warning Logic with received data.

DTC Description

This DTC occurs that the receiver has not received any RF messages. The most likely cause is receiver RF circuit failure/RF screening.

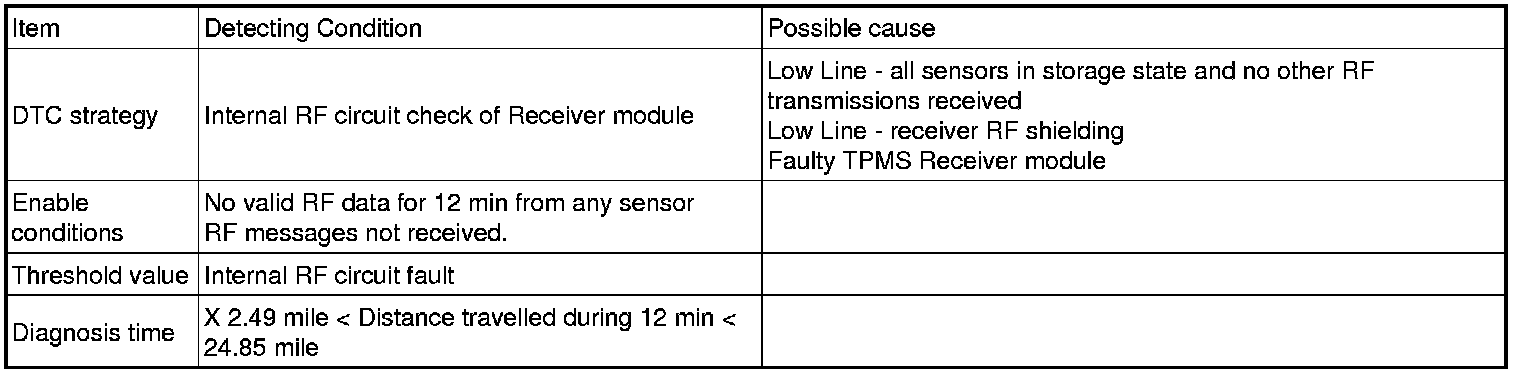

DTC Detecting Condition





Schematic Diagram
