Home >> Kia >> 2009 >> Spectra L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1610

C1610





INSPECTION PROCEDURES FOR DIAGNOSTIC TROUBLE CODES

CAN Bus Off Failure





DESCRIPTION

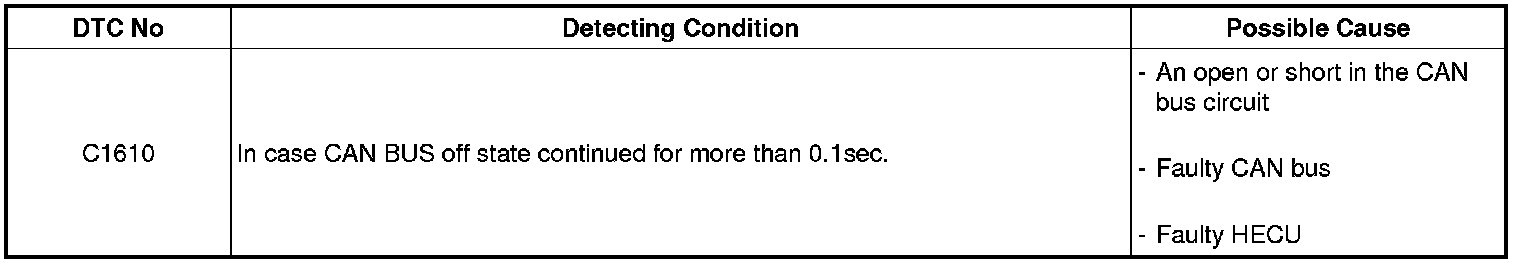

DTC DETECTING CONDITION





FAIL SAFE FUNCTION

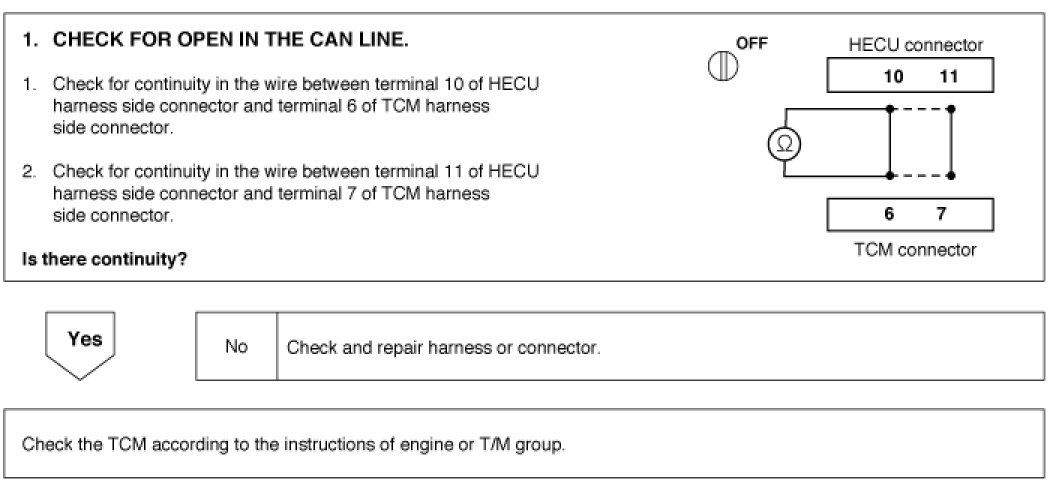

INSPECTION PROCEDURES
