Component Inspection

Component Inspection

[Check TPM SENSOR 2]
1. Turn ON 'TPMS exciter'.
2. Select "TIRE SNSR CONFIG (EXCITER)" mode.

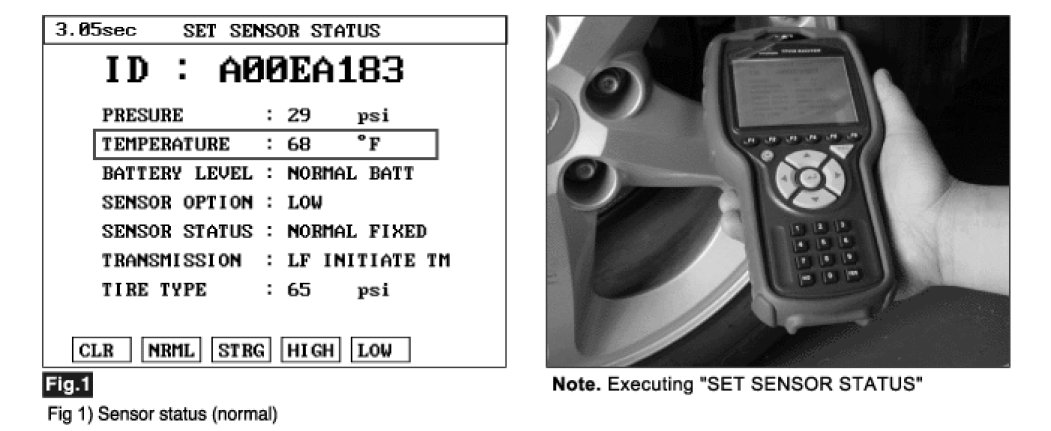

3. Execute "SET SENSOR STATUS" of each wheel.
4. Monitor the parameter of each sensor temperature on the 'TPMS exciter'.
A. Specification : Less than 230 °F (110 °C)




5. Is any sensor data outside specification?
YES
1) Check wheel/tire for if Damaged tire, Excessive braking, Driving while the parking brake is on is detected.
2) Repair or replace if necessary and go to "Verification of Vehicle Repair" procedure.
3) If it is OK, go to "Check wheel/tire" as follows.
NO
1) Substitute with a known-good TPMS receiver module and check proper operation.
2) If the problem is corrected, replace TPMS receiver module and go to "Verification of Vehicle Repair" procedure.
[Check wheel/tire]
1. Cool the heat of the SENSOR
2. IG OFF & IG ON.
3. Monitor the sensor temperature on the 'TPMS exciter' or scantool after 4 minutes.
A. Specification : Less than 230 °F (110 °C)
4. Is parameter within specifications?
YES
1) Fault can be because of temporary overheating.
2) Go to "Verification of vehicle Repair" procedure.
NO
1) Replace TPMS sensor and register sensor ID with 'TPMS exciter'.
2) Go to "Verification of Vehicle Repair" procedure.
